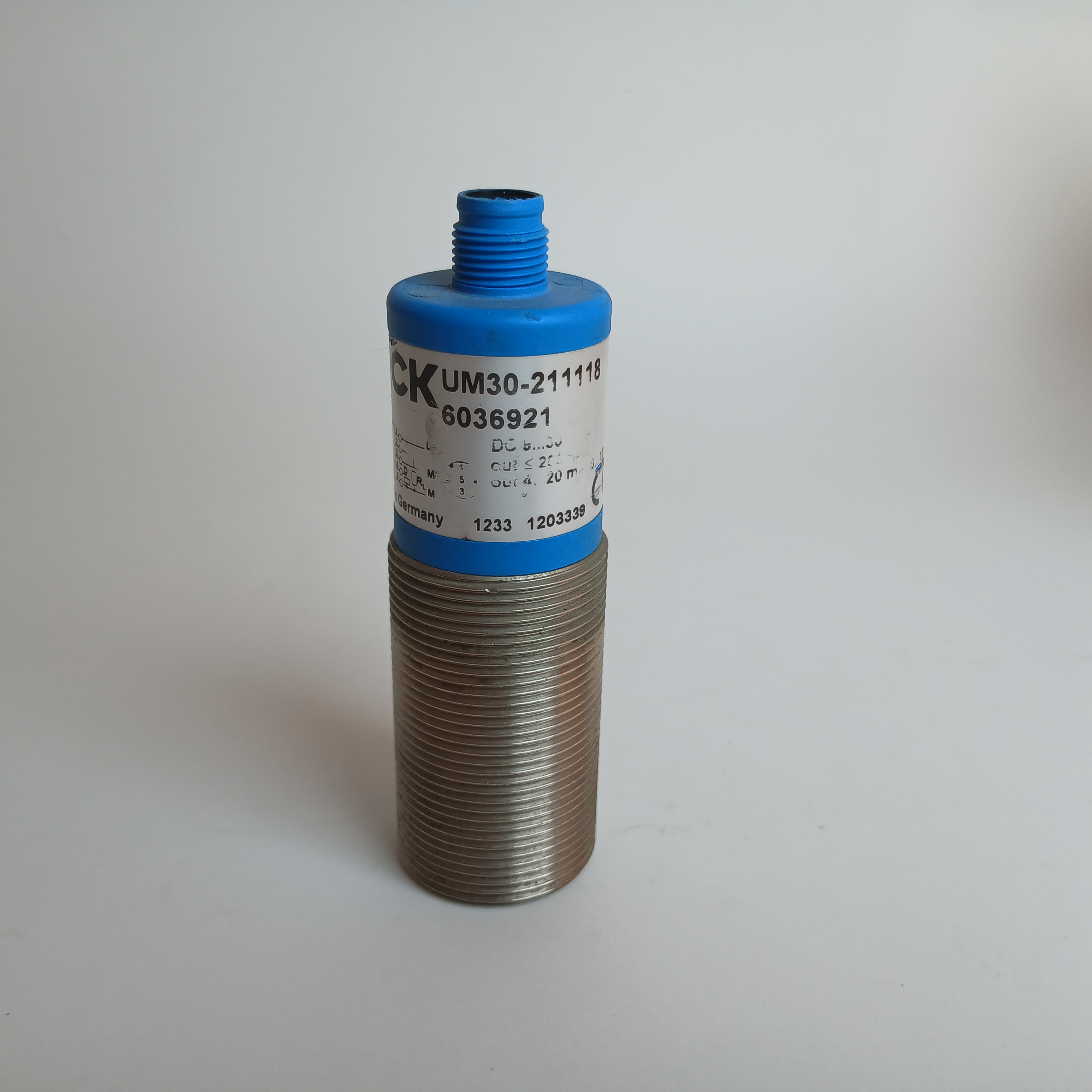

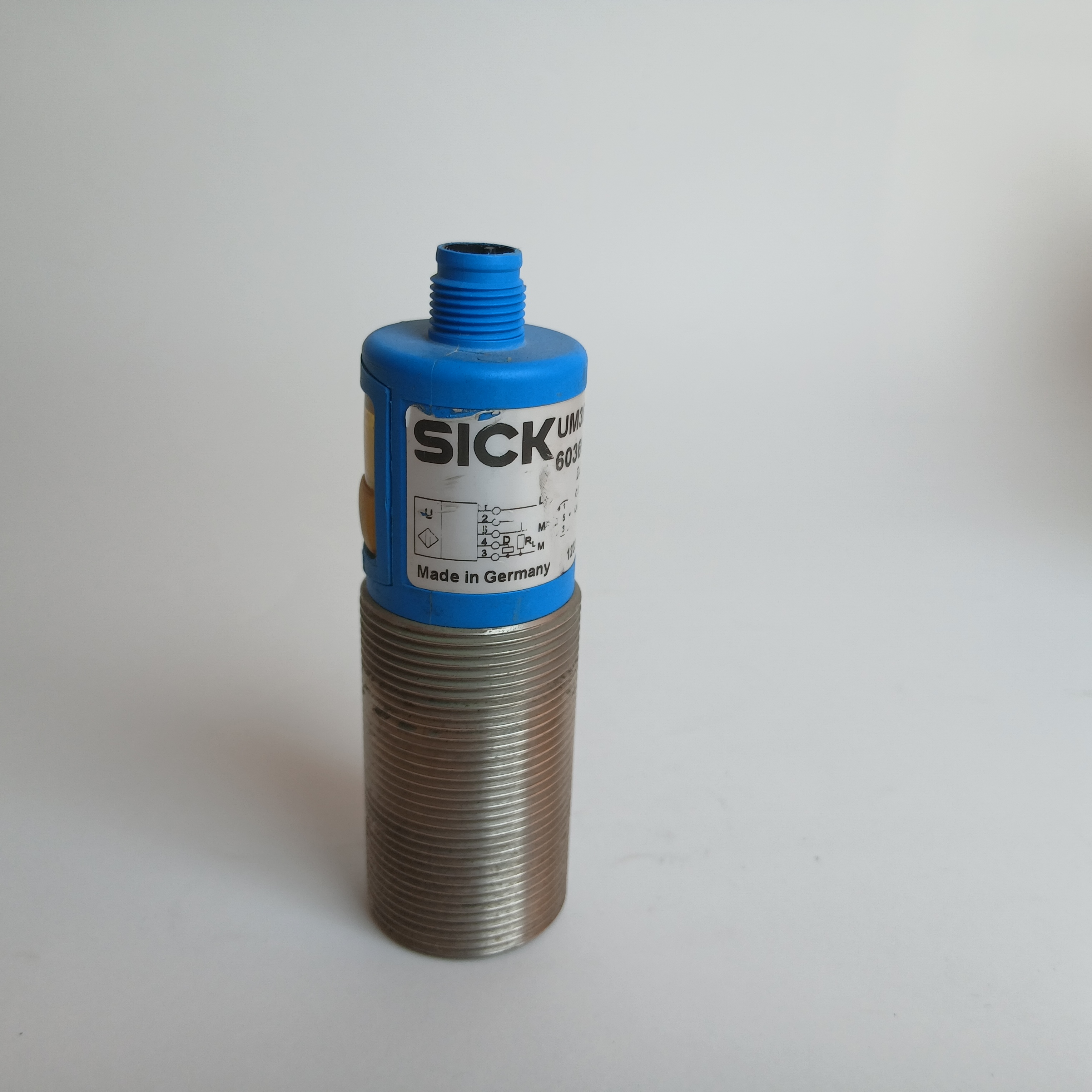

UM30-211118

ULTRASONIC SENSORS

Operating range, limiting range : 30 mm ... 250 mm, 350 mm
Target :Natural objects
Resolution ≥ 0.18 mm
Repeatability ± 0.15 % 1)
Accuracy ± 1 % 1) 2)
Temperature compensation
Response time:  32 ms
Switching frequency:  25 Hz
Output time:   8 ms
Ultrasonic frequency (typical) : 320 kHz

Analog output : 1 x 0 V ... 10 V (≥ 100 kΩ)1 x 4 mA ... 20 mA (≤ 500 Ω)
Resolution analog output :  12 bit
Switching output :  1 x PNP (200 mA)

Multifunctional input:  (MF) 1 x MF
Hysteresis:  3 mm

Supply voltage Vs  : DC 9 V ... 30 V
Power consumption ≤ 2.4 W 3)
Initialization time < 300 ms
Design : Cylindrical
Housing material :  Nickel-plated brass, PBT
Display: TPU

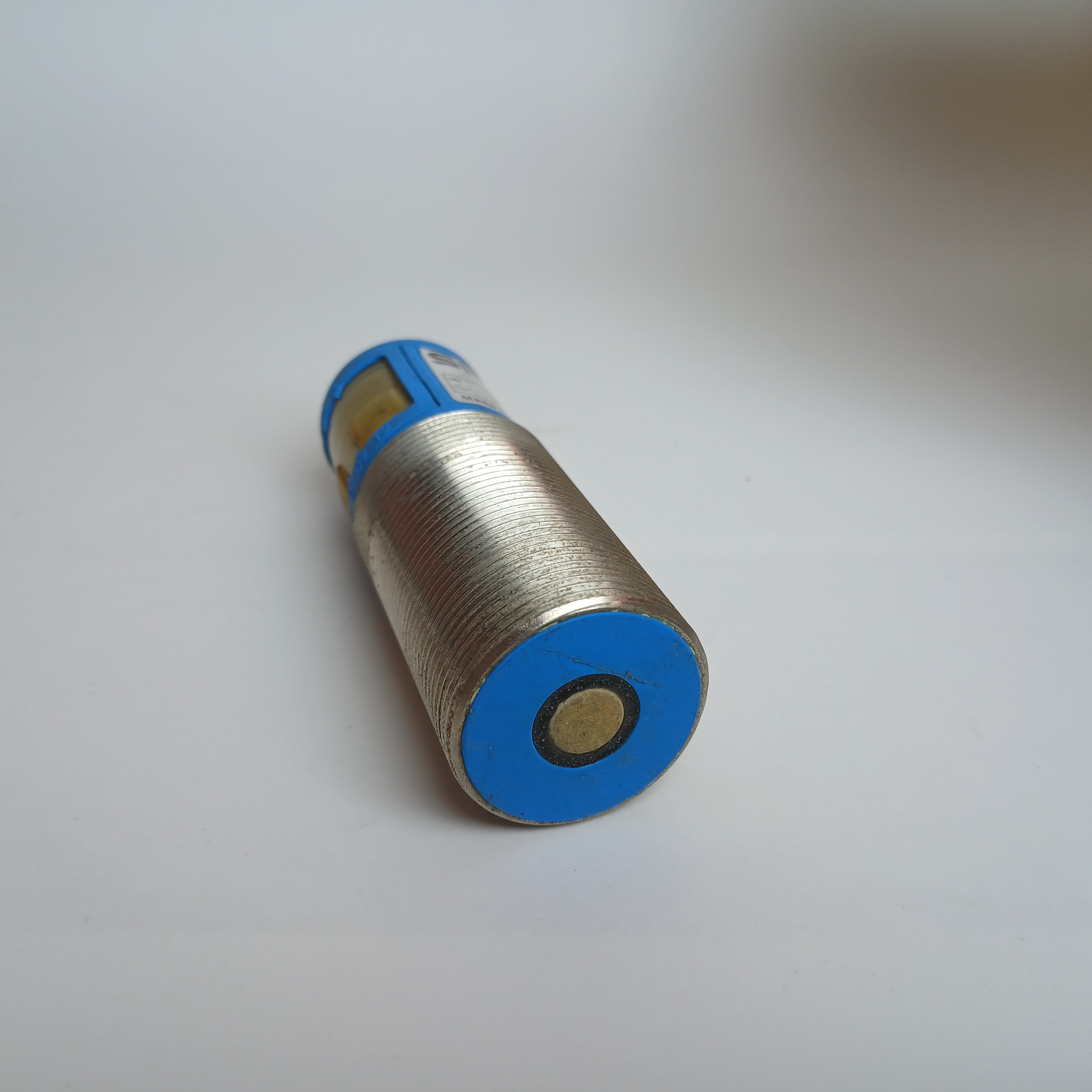

Ultrasonic transducer: polyurethane foam, glass epoxy resin

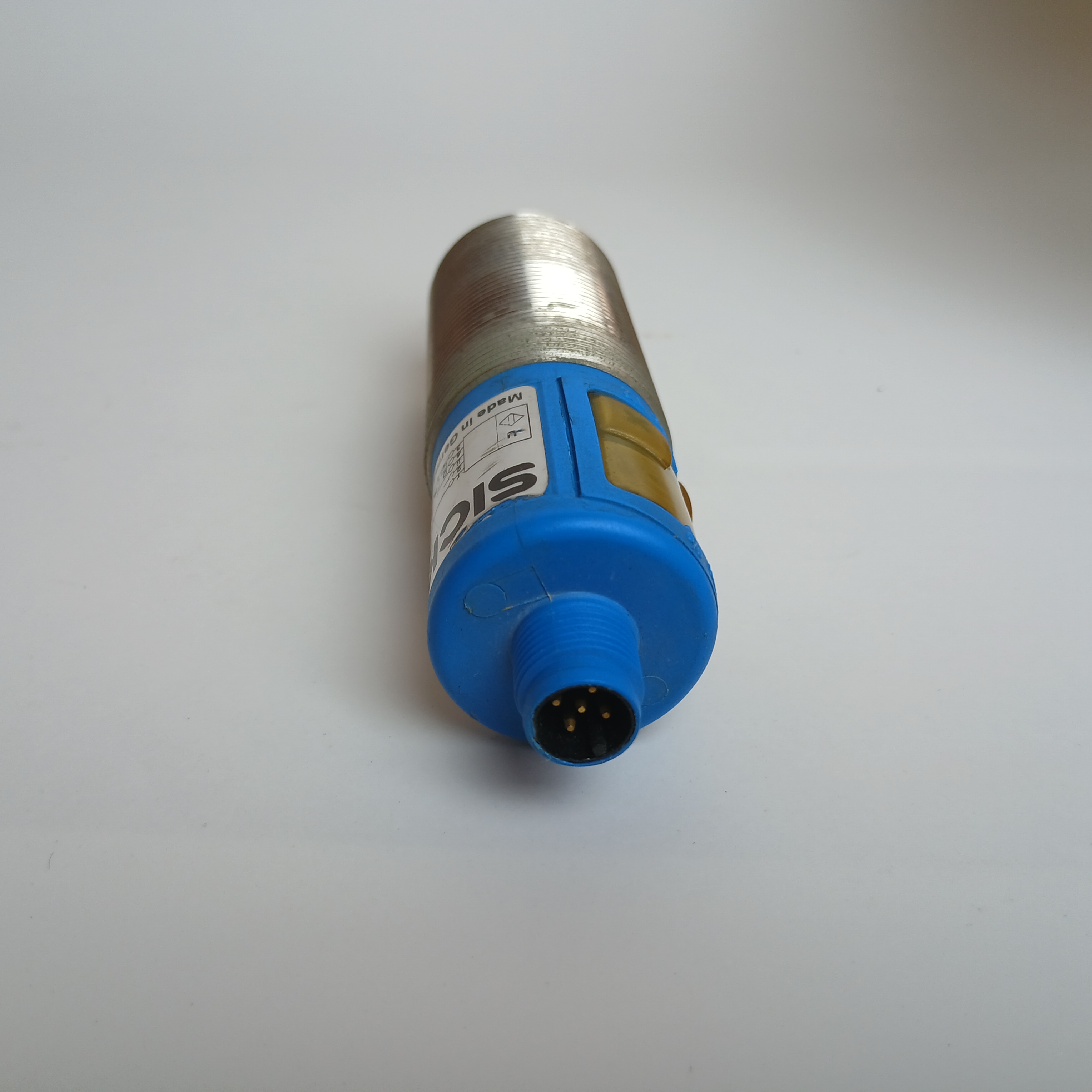

Connection type Male connector, M12, 5-pin
Indication LED display, 2 x LED
Sending axis Straight
Enclosure rating : IP67
Protection : class III
