لول سوئیچ دیاپازونی

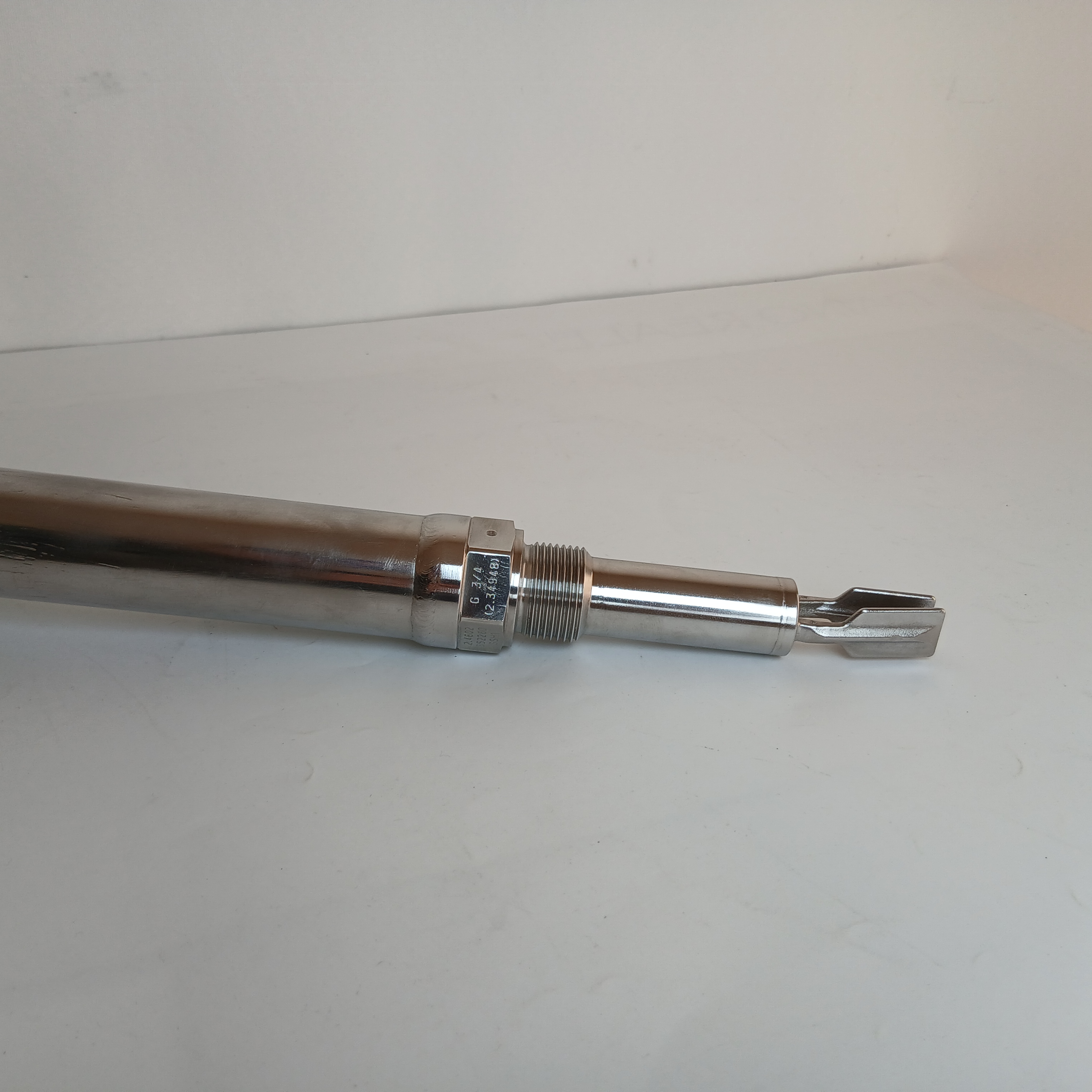

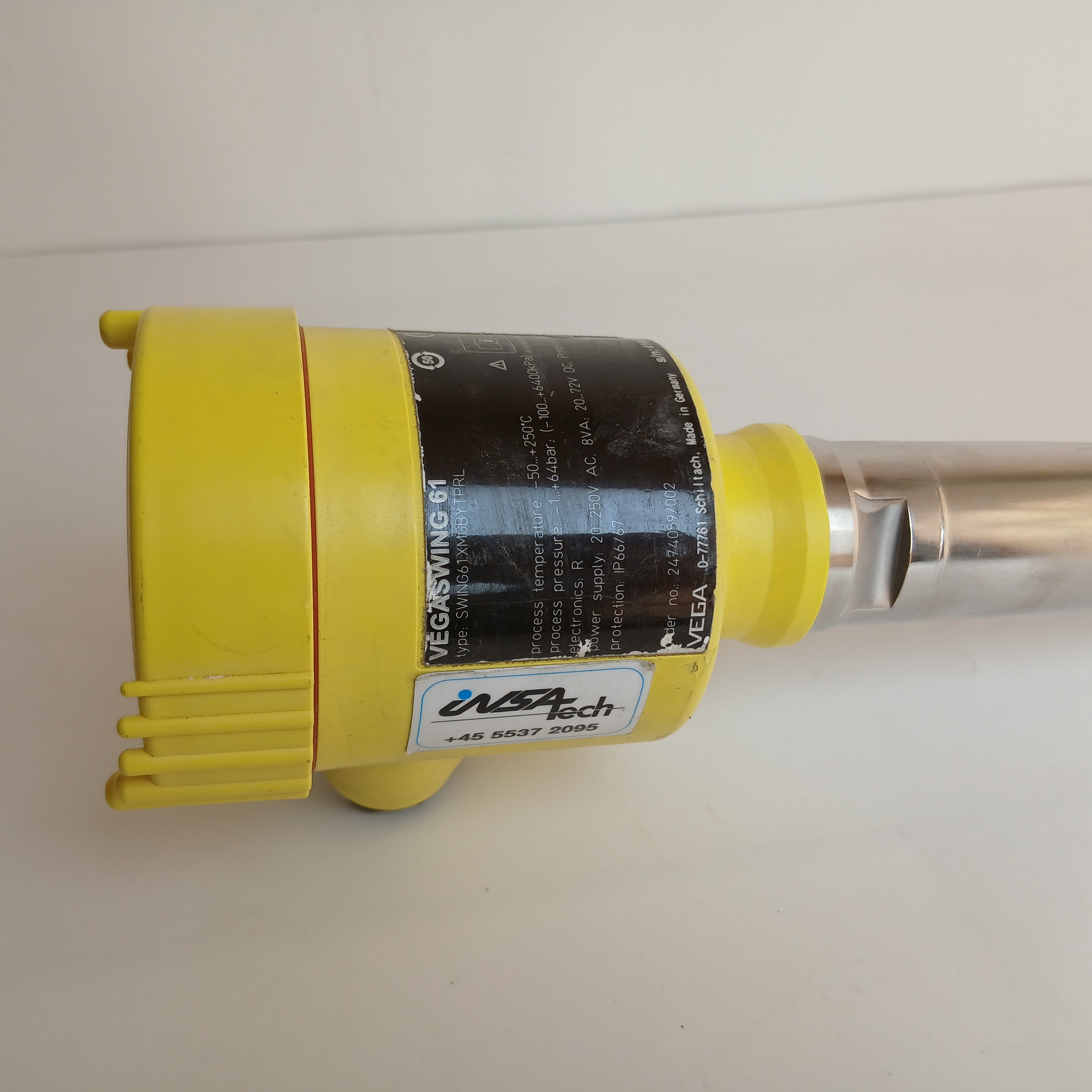

VEGASWING 61

Vibrating level switch for liquids

For liquids (density: > 0.5 ... 2.5 g/cm³)

Approval directive / Scope: None / World-wide

Foodstuff/Pharmaceutical certificate: without

Adapter / Process temperature: with / -50...+250°C

Switching point :with extended switching point

Process fitting / Material: Thread G¾ PN64, DIN3852-A / Alloy C22 (2.4602)

Electronics: Relay (DPDT) 20 ... 72 V DC/20 ... 253 V AC (3A)

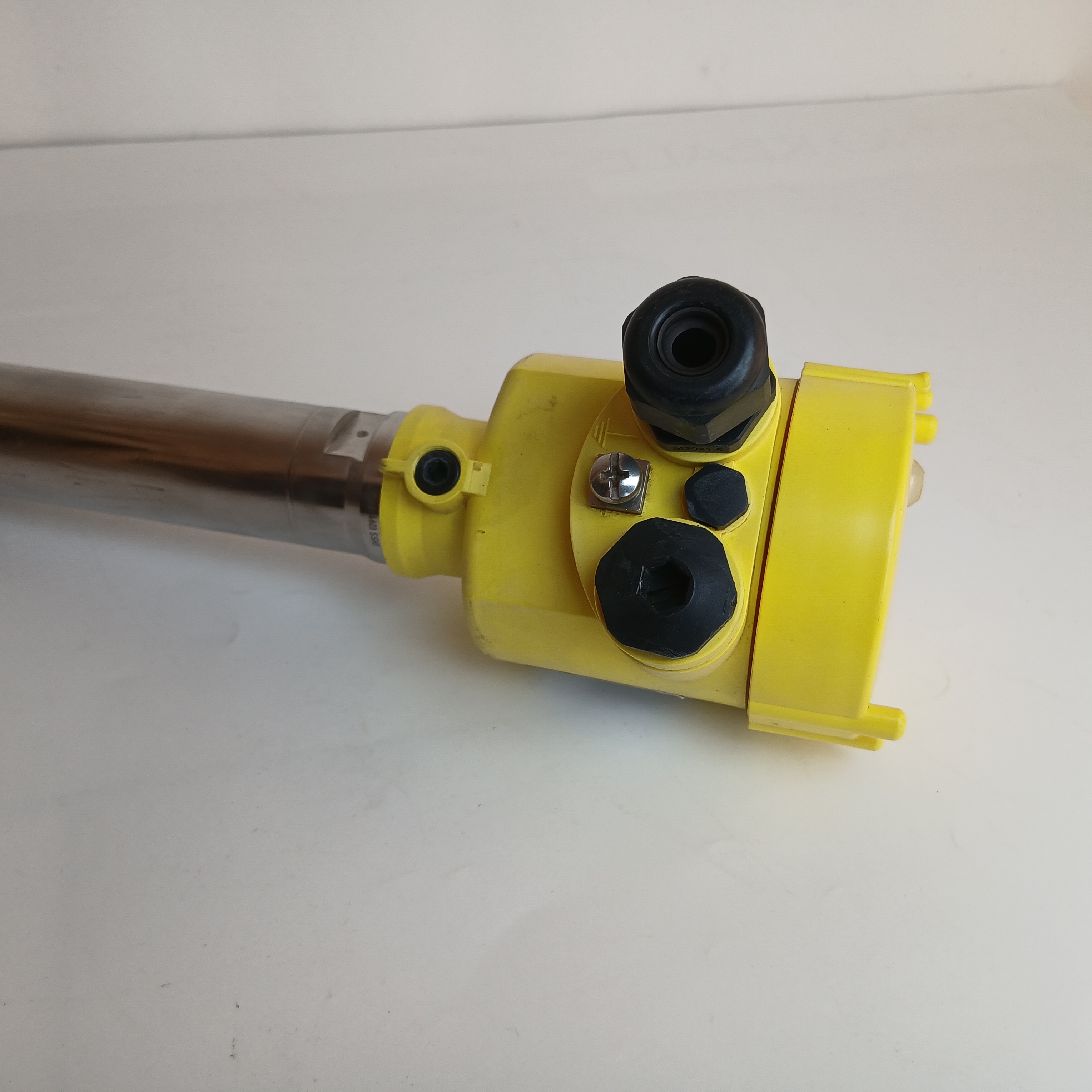

• Housing / Protection / Cable gland: Plastic single chamber IP66/67 / M20x1.5
• Special cable gland: without
  Switching status display PLICSLED: without
  Additional equipment :without
