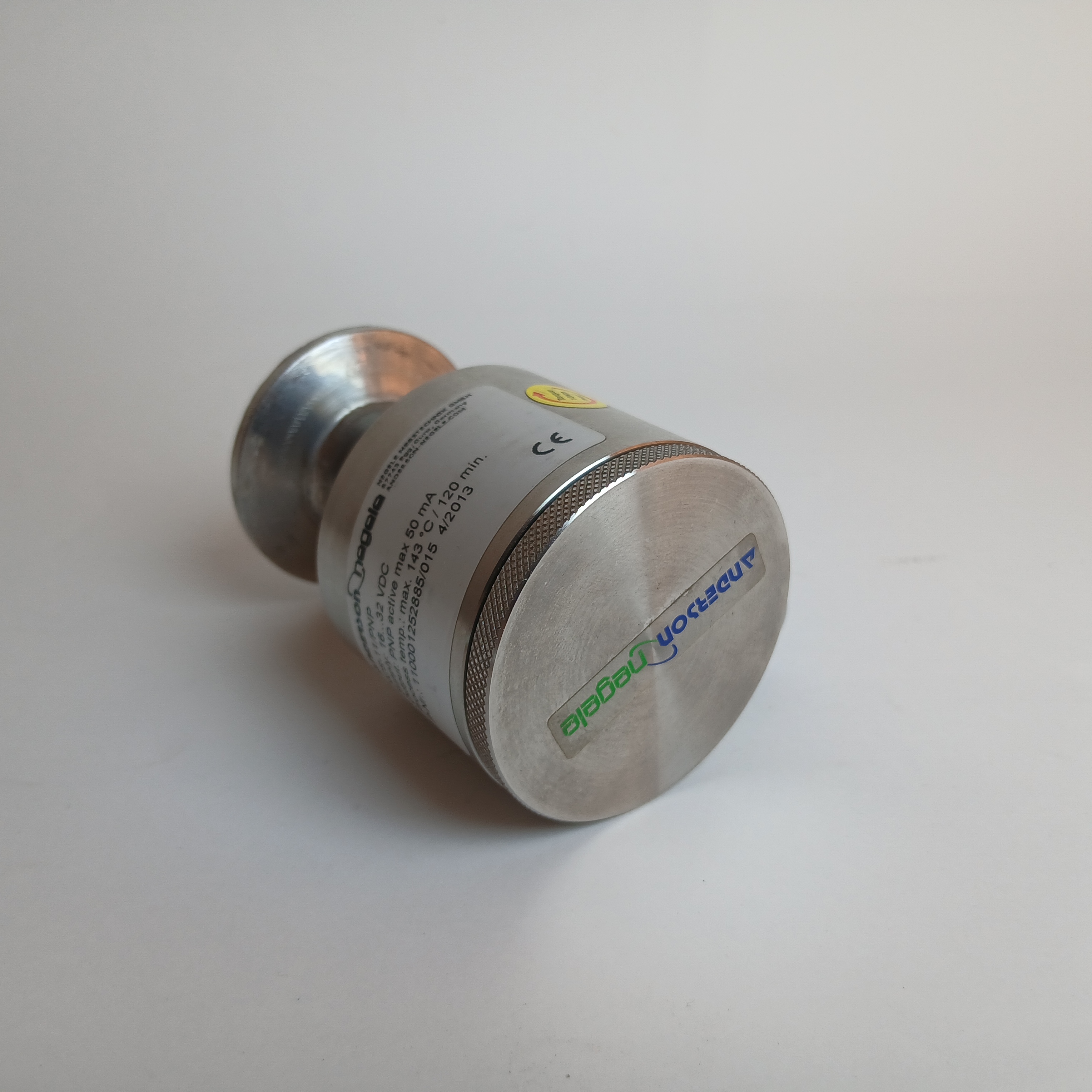

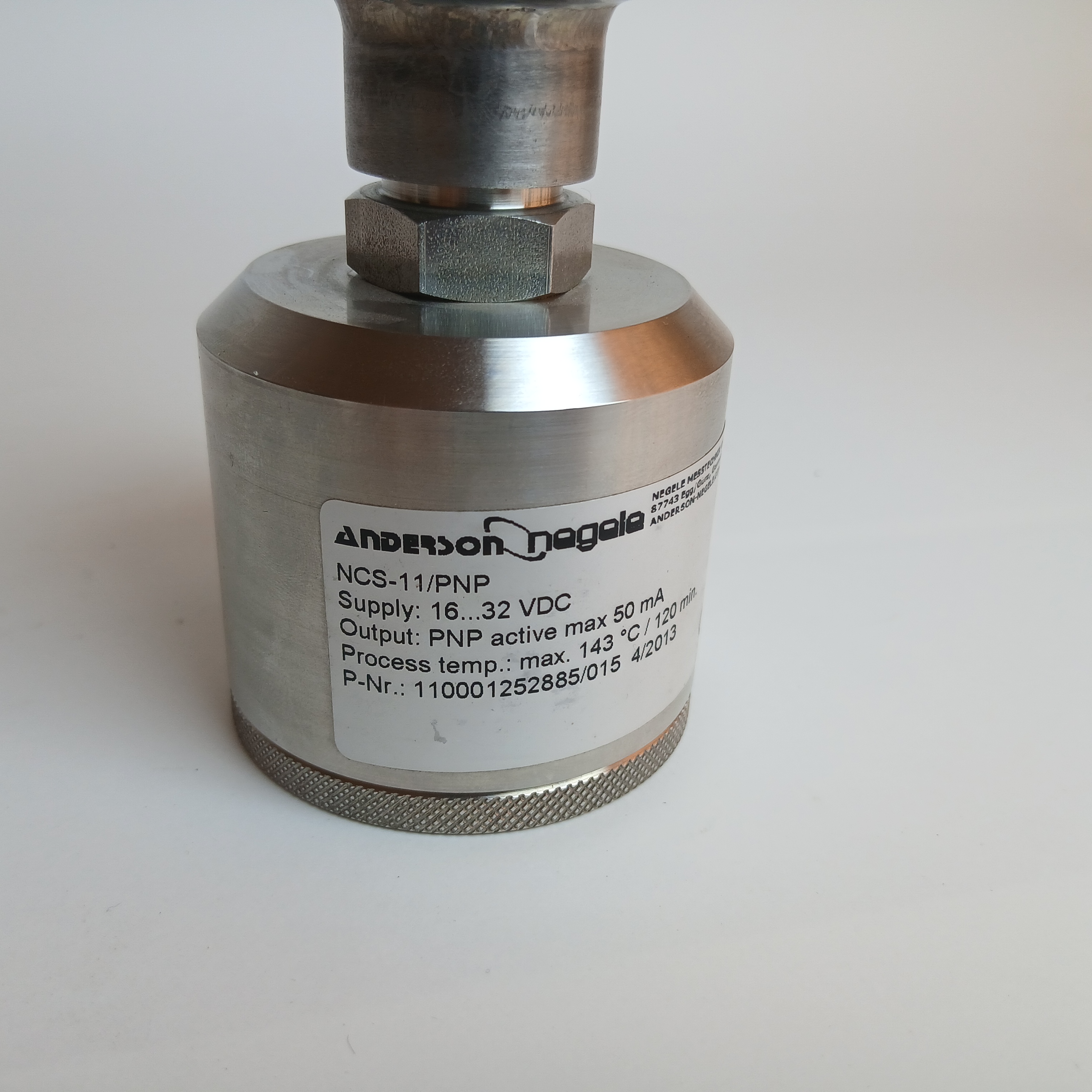

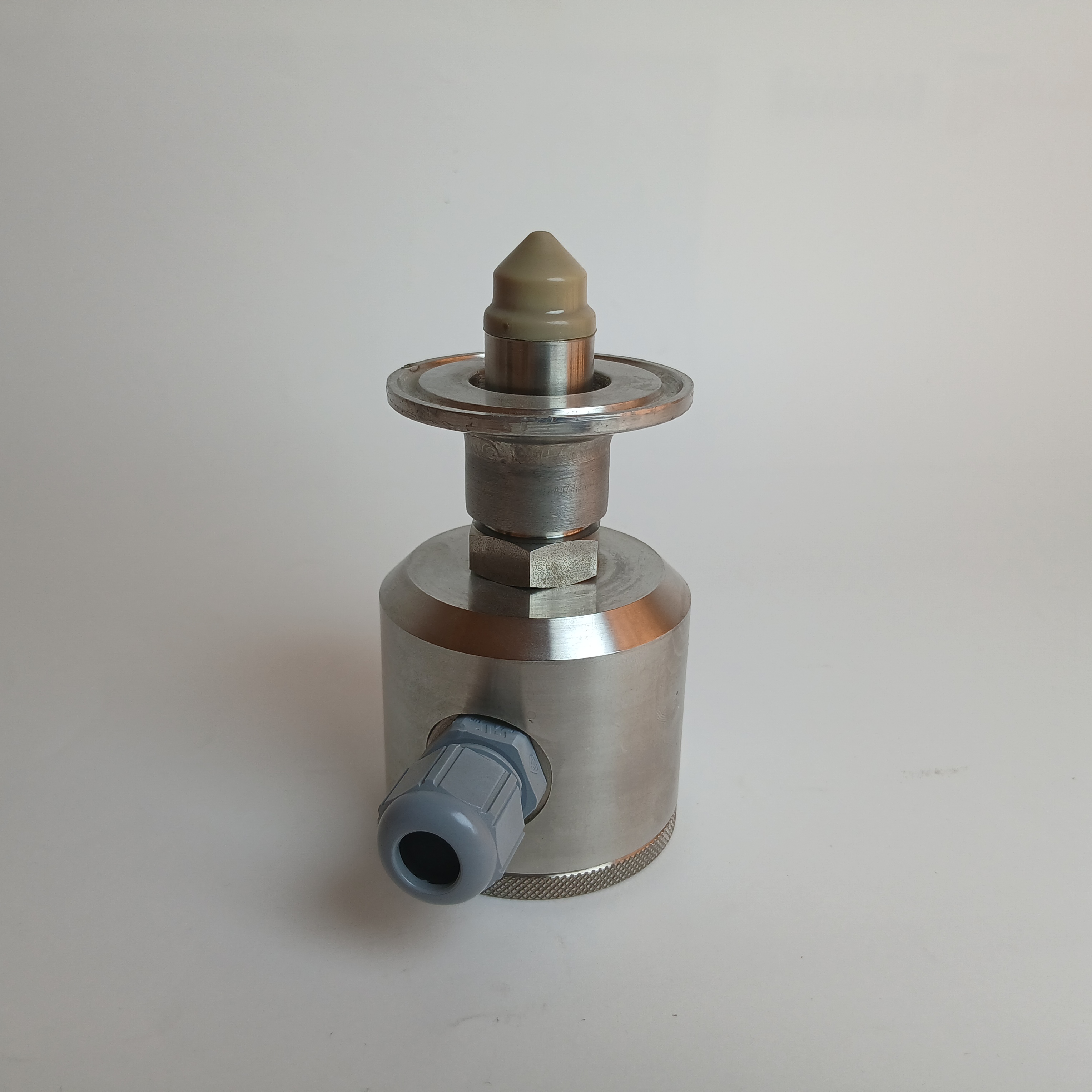

NCS-11/PNP

Capacitive Limit Switch Food NCS

measurement range for watery media with Dk ≥ 20; CLEANadapt G1/2"

Independent of the conductivity · NCS-L: Insensitive to foam and adherence, reliable at pasty media · Short response time (< 1 s) · Reversible output (full / empty active) · Heated electronic to avoid condensation ·

Materials connection: head connection piece spacer sensor tip NCS-1x sensor tip NCS-0x stainless steel 1.4305 (303) stainless steel 1.4305 (303) stainless steel 1.4305 (303) PEEK (FDA approval number 21 CFR 177.2415) stainless steel 1.4404 (316L)

Surface quality Ra ≤ 0,8 µm

Operating pressure max. 10 bar

Protection class IP 69 K (with cable connection) IP 67 (with cable gland)

Supply 24 V DC

Output: PNP (active 50 mA, short-circuit-proof)

Status display LED
