لول سوئیچ ویبره VEGA
SG66.ACRAAAZKMM

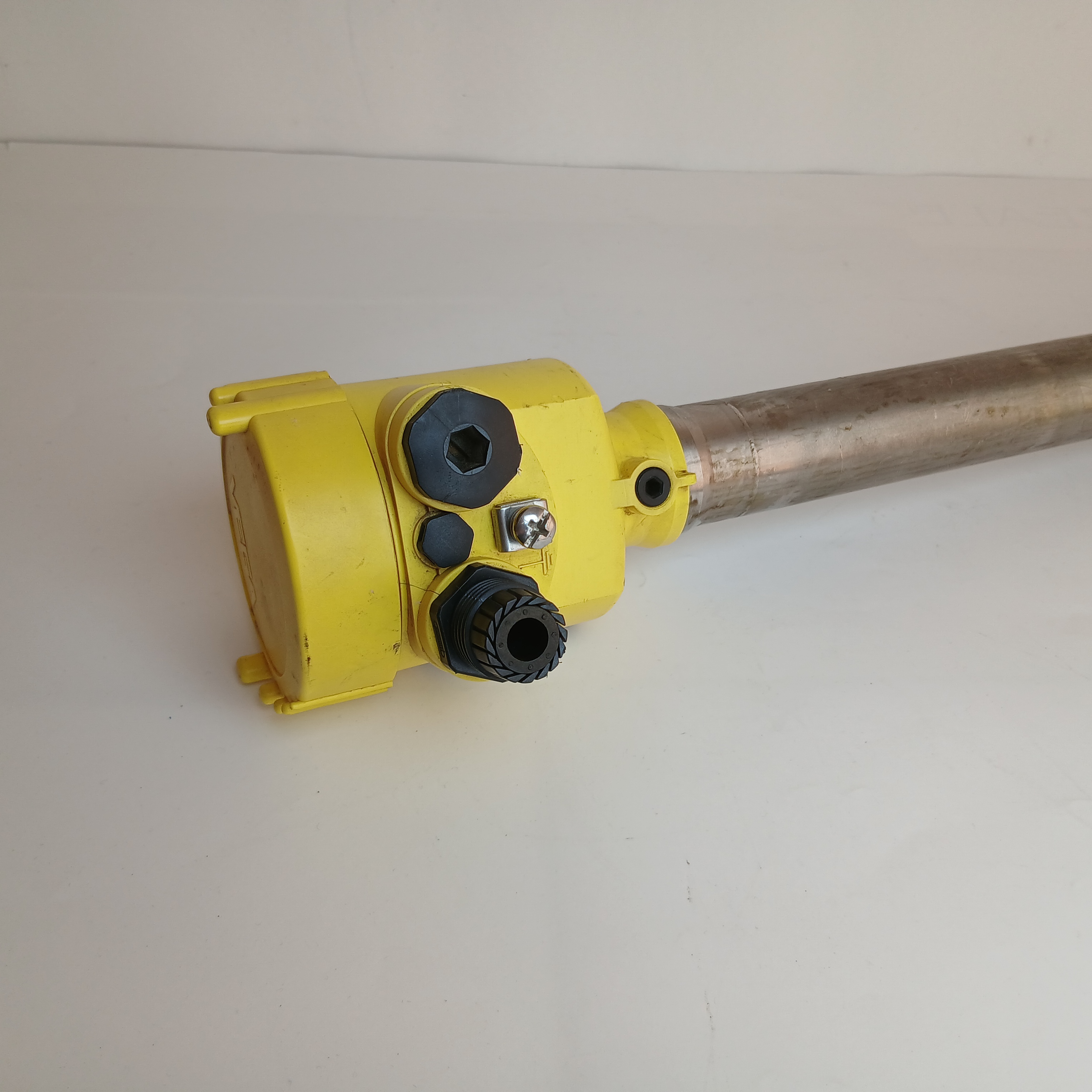

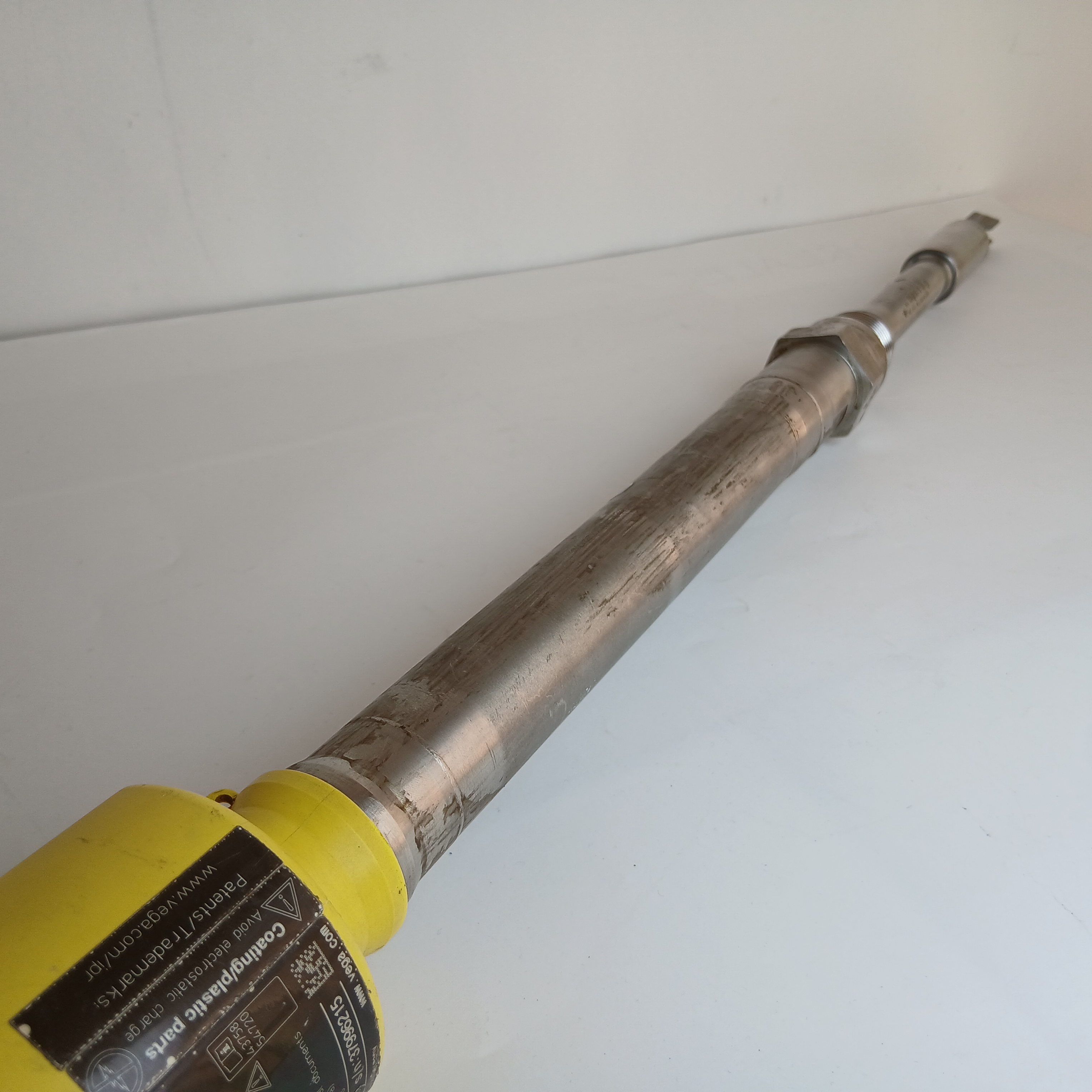

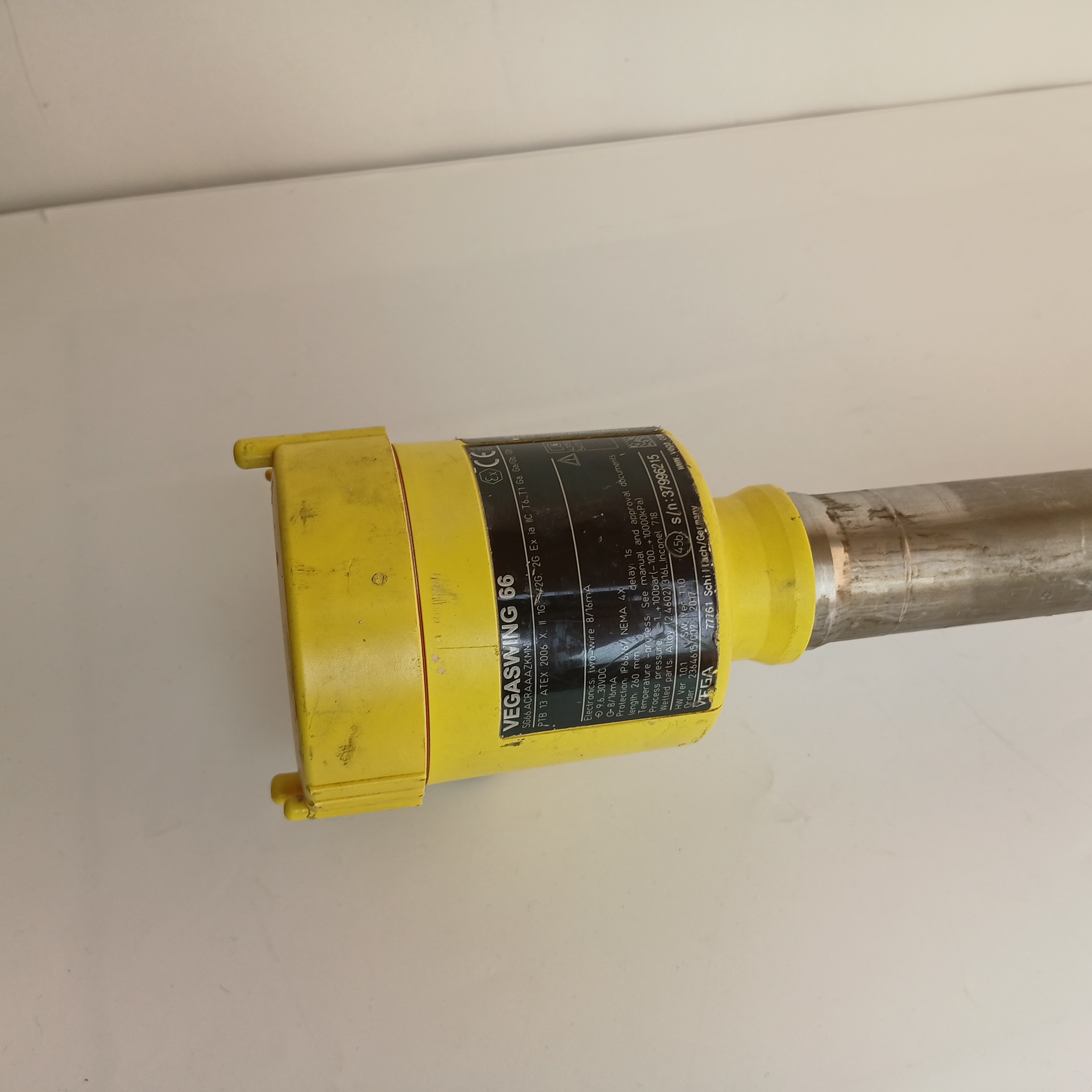

VEGASWING 66
Vibrating level switch for liquids under extreme process temperatures and pressures
For liquids (density: > 0.42 ... 2.5 g/cm³) – high temperature version
Scope: Europe
Approvals: ATEX II 1G, 1/2G, II 2G Ex ia IIC T6...T1 Ga, Ga/Gb, Gb
Overfill protection liquefied gas: without

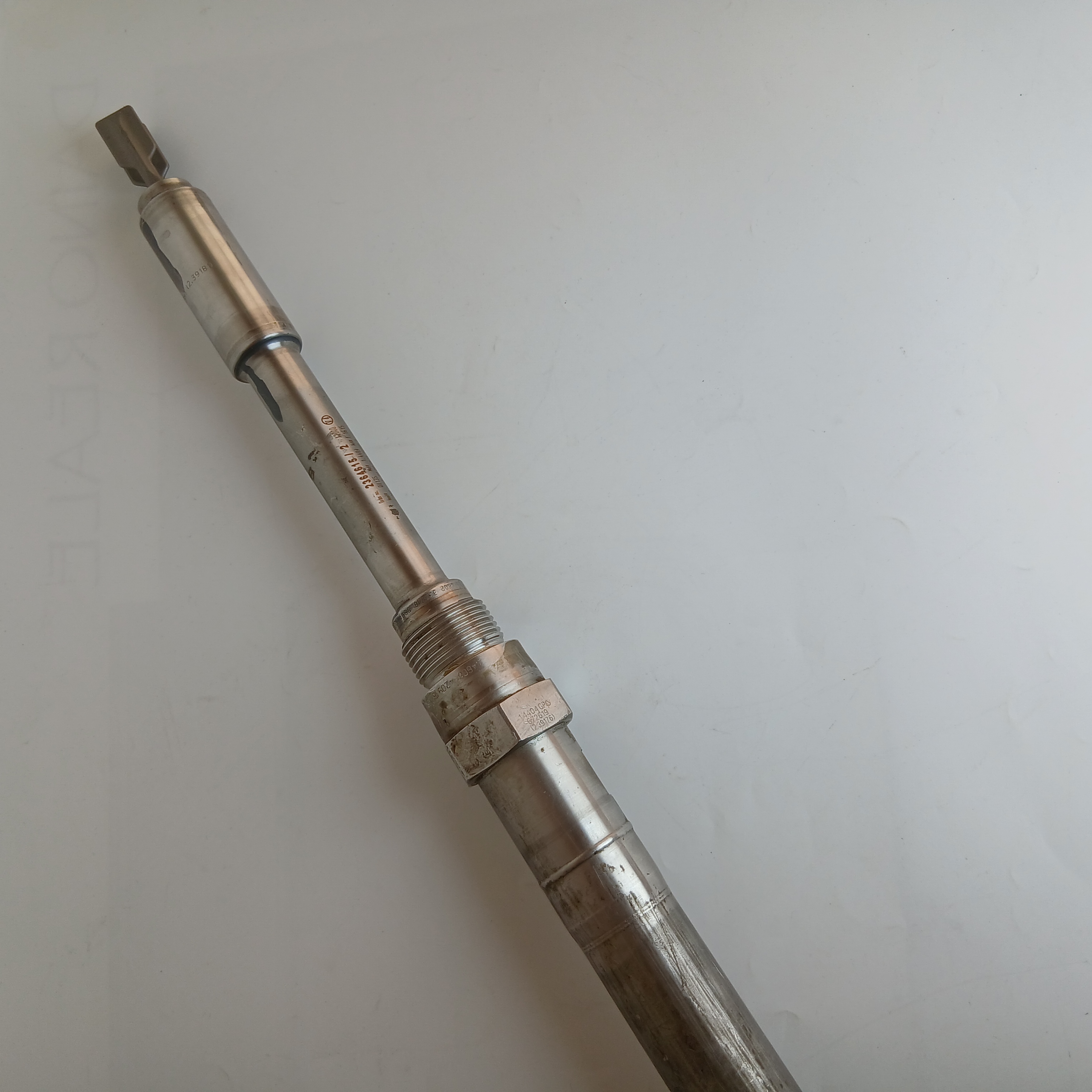

Process fitting / Material: Thread G1 PN100, DIN3852-A / Inconel 718 (2.4668)
Electronics: Two-wire (8/16 mA) 9.6 ... 35 V DC
Housing / Protection: Plastic single chamber / IP66/IP67
Cable entry / Connection: M20x1.5 / Cable gland PA black (ø5-9mm)
Switching status display PLIC: without
پارت نامبر:
SG66.ACRAAAZKMM
برند:
VEGA
وضعیت کالا:
استفاده نشده
