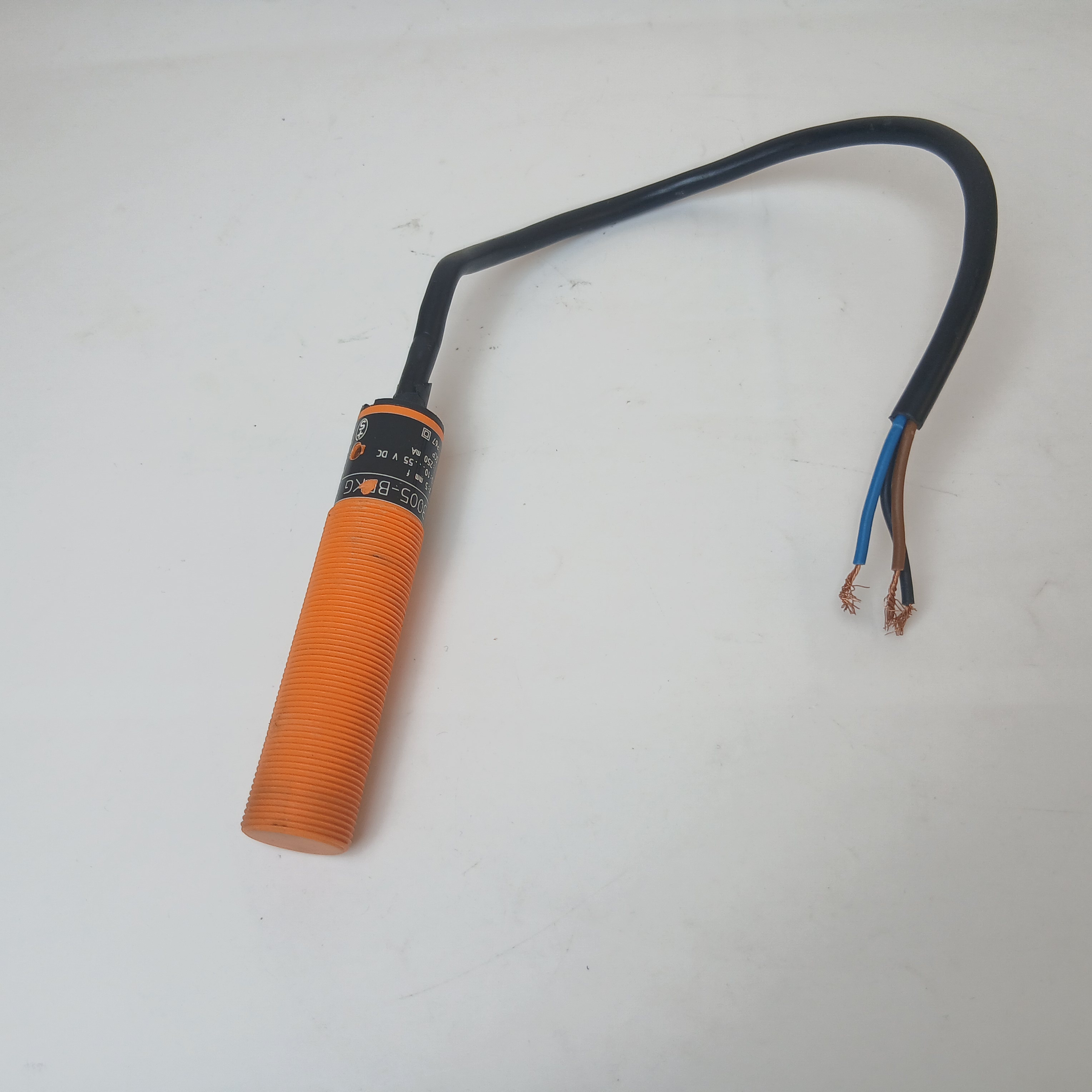

IG-3005-BPKG
سنسور القایی
Inductive sensor
Product characteristics
Electrical design PNP
Output function normally open
Sensing range[mm] 5
Housing threaded type
Dimensions[mm] M18 x 1 / L = 80
Electrical data
Operating voltage[V] 10...36 DC
Current consumption[mA] 15; (24 V)
Protection classII
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]250
Switching frequency DC[Hz]500
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range[mm]5
Real sensing range Sr[mm]5 ± 10 %
Operating distance[mm]0...4.05
Accuracy / deviations
Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr]1...15
Switch point drift[% of Sr]-10...10
Operating conditions
Ambient temperature[°C]-25...80
ProtectionIP 67
پارت نامبر:
IG-3005-BPKG
برند:
IFM
وضعیت کالا:
استوک
