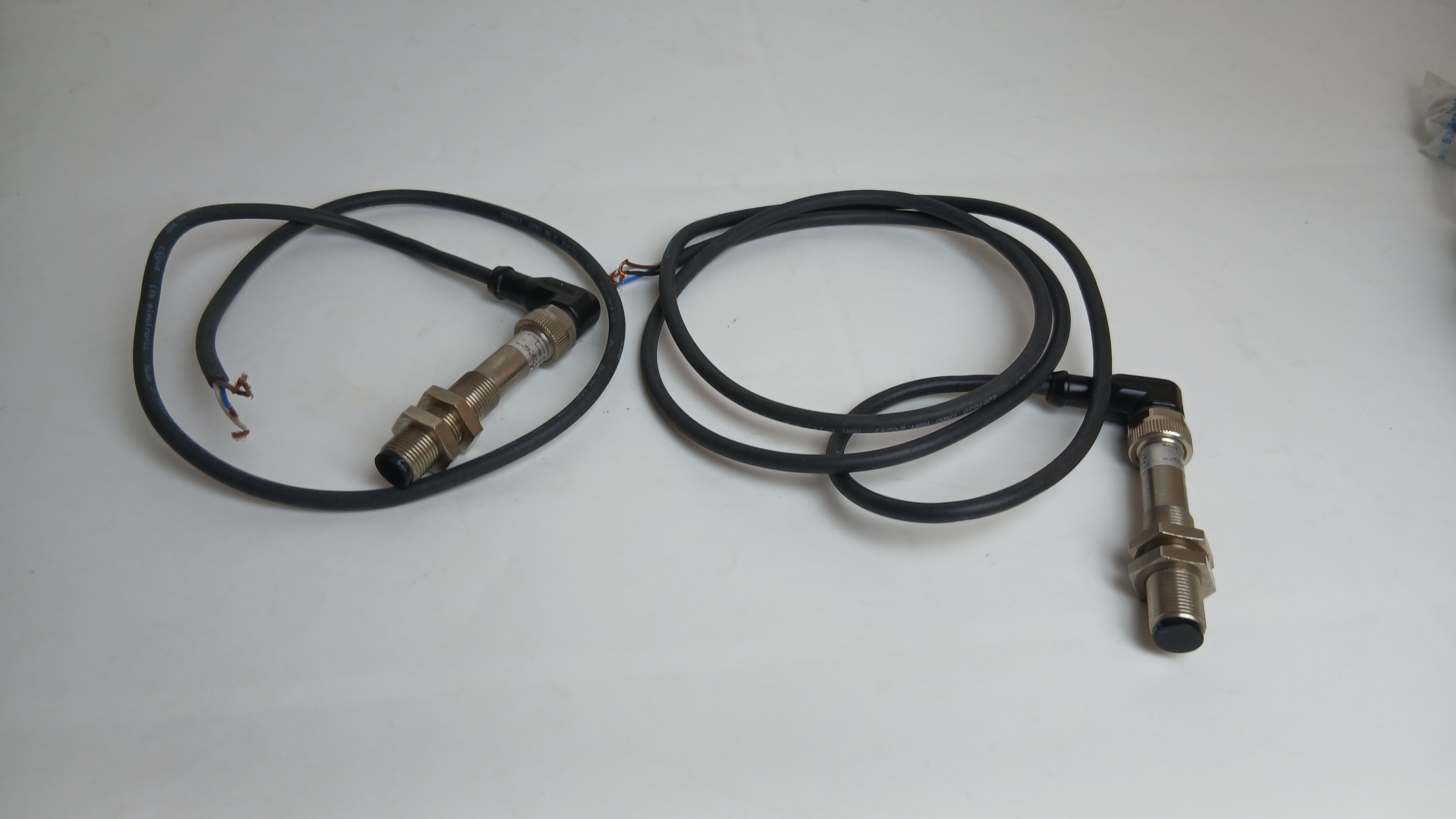

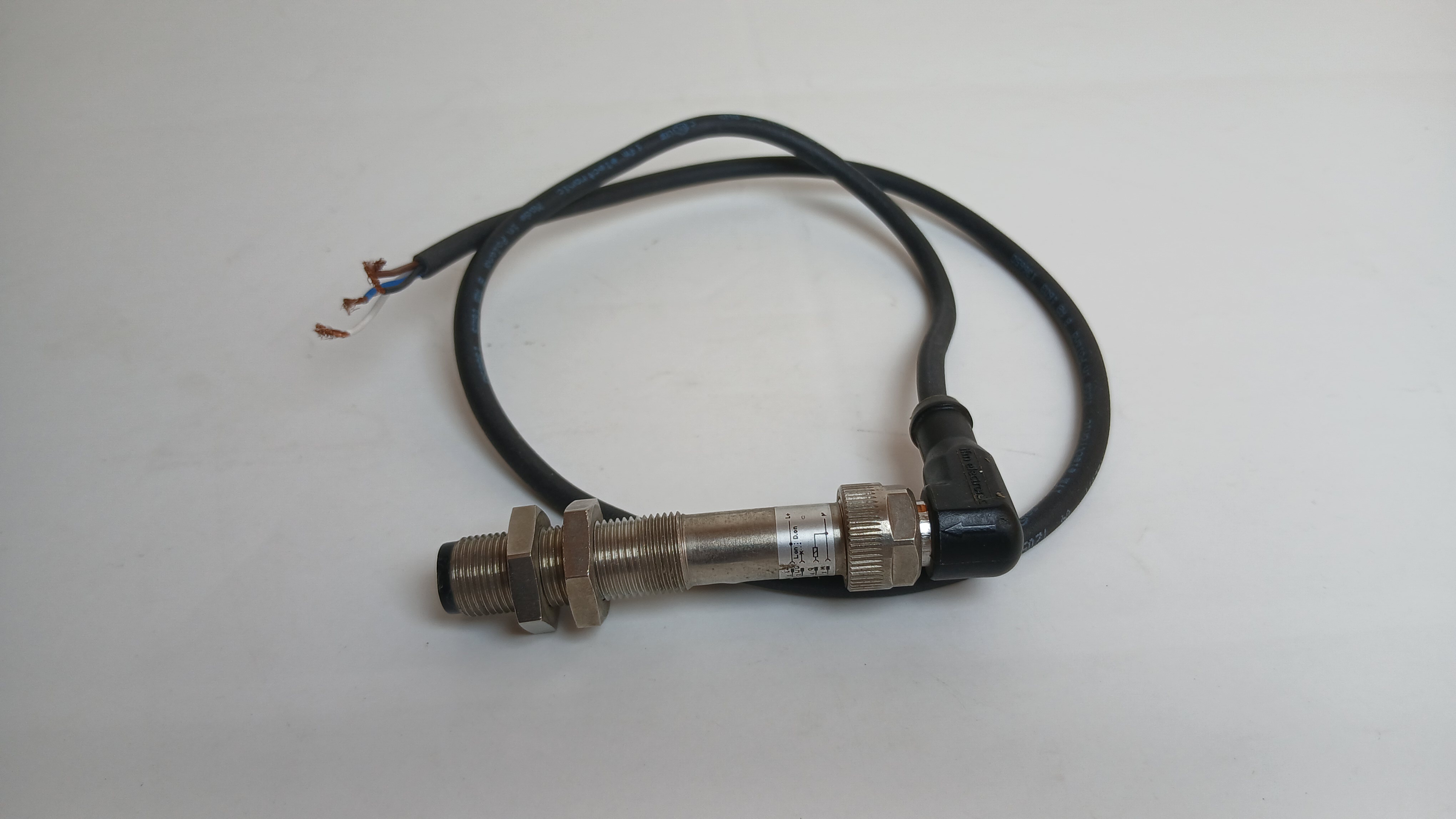

VT12T-2P430

Sensor / detection principle : Photoelectric proximity sensor, energetic
Type of light Infrared: light
Light source LED
Wave length:880 nm
Dimensions: (W × H × D)12 mm × 12 mm × 65.5 mm
Housing design: Cylindrical
Housing length: 65.5 mm
Housing material: Metal, nickel-plated brass / PA
Optics material: Plastic, PMMA
Thread / connectionM12
Enclosure rating: IP67
Sensing range: 2 mm … 300 mm
Sensing range: max.0 mm … 340 mm
Light spot size: Ø 28 mm (at 300 mm)
Angle of dispersion: Approx. 5.3°
Focus: Approx. 5.3°
Supply voltage: 10 V DC … 30 V DC
%Ripple± 10
Current consumption: 20 mA
Switching output: PNP
Switching mode: Light / dark switching
Switching mode:  select or Selectable via control input C
Output current : (I max.)≤ 100 mA
Response time≤ 1.25 ms
Switching frequency: 400 Hz
Connection type: Male connector M12, 4-pin
Protection : class III
Ambient operating temperature: –25 °C … +70 °C
Storage temperature: –25 °C … +70 °C
