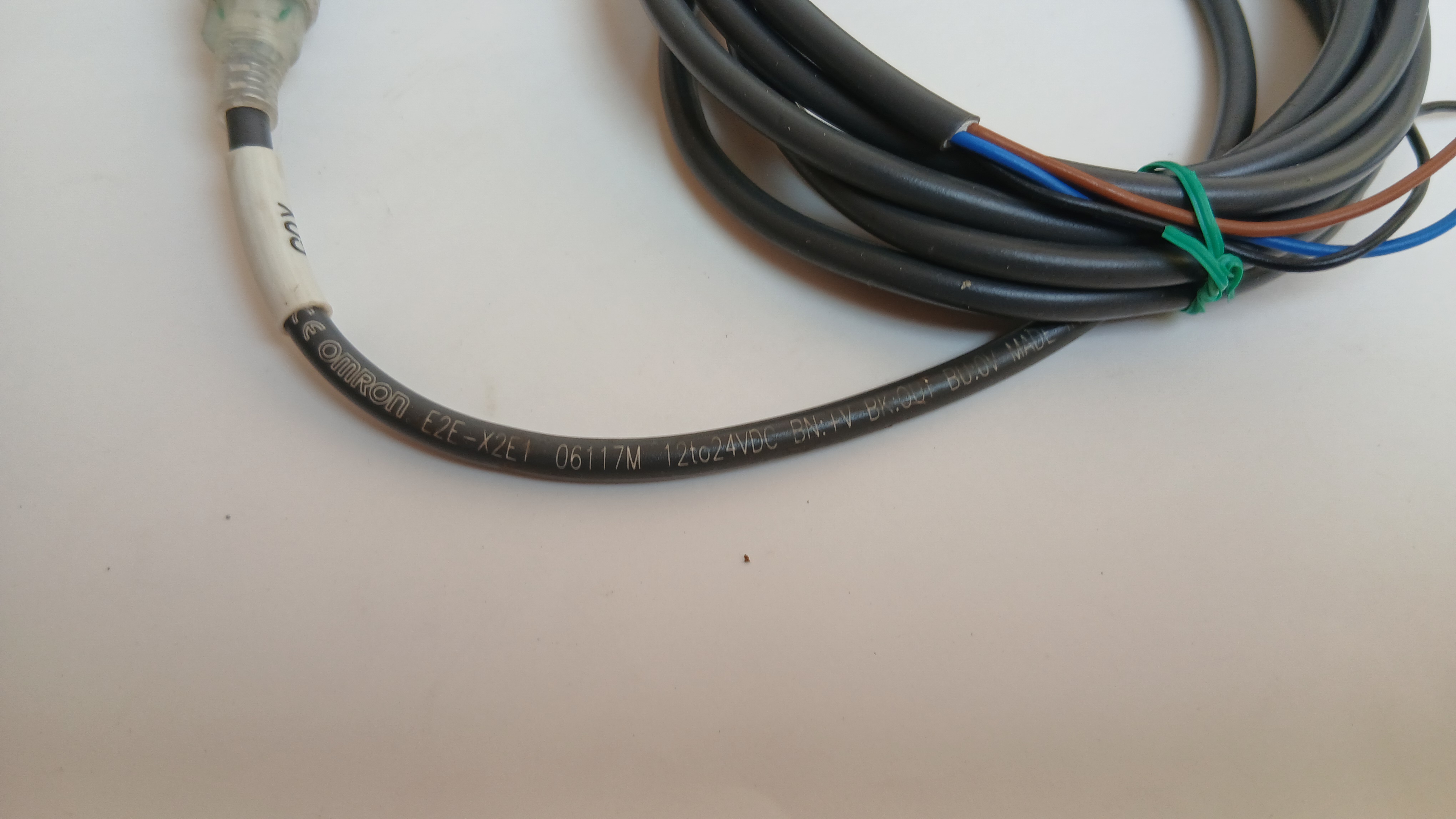

E2E-X2E1

Type: Shielded
Sensing method: Inductive type
Sensing distance: 2 mm-10% to +10%
Setting distance: 0 to 1.6 mm
Differential distance: 10% Max. of sensing distance
Sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object: Iron 12 x 12 x 1 mm
Power supply voltage: 12 to 24 VDC ripple(p-p) 10% Max.
Operating voltage range: 10 to 30 VDC
Current consumption: 13　mA　max.
Control output (Output type): NPN voltage-current output
Control output (Switching capacity)0 : to 200 mA
Indicator Operation:  indicator (red)
Operation mode: NO
