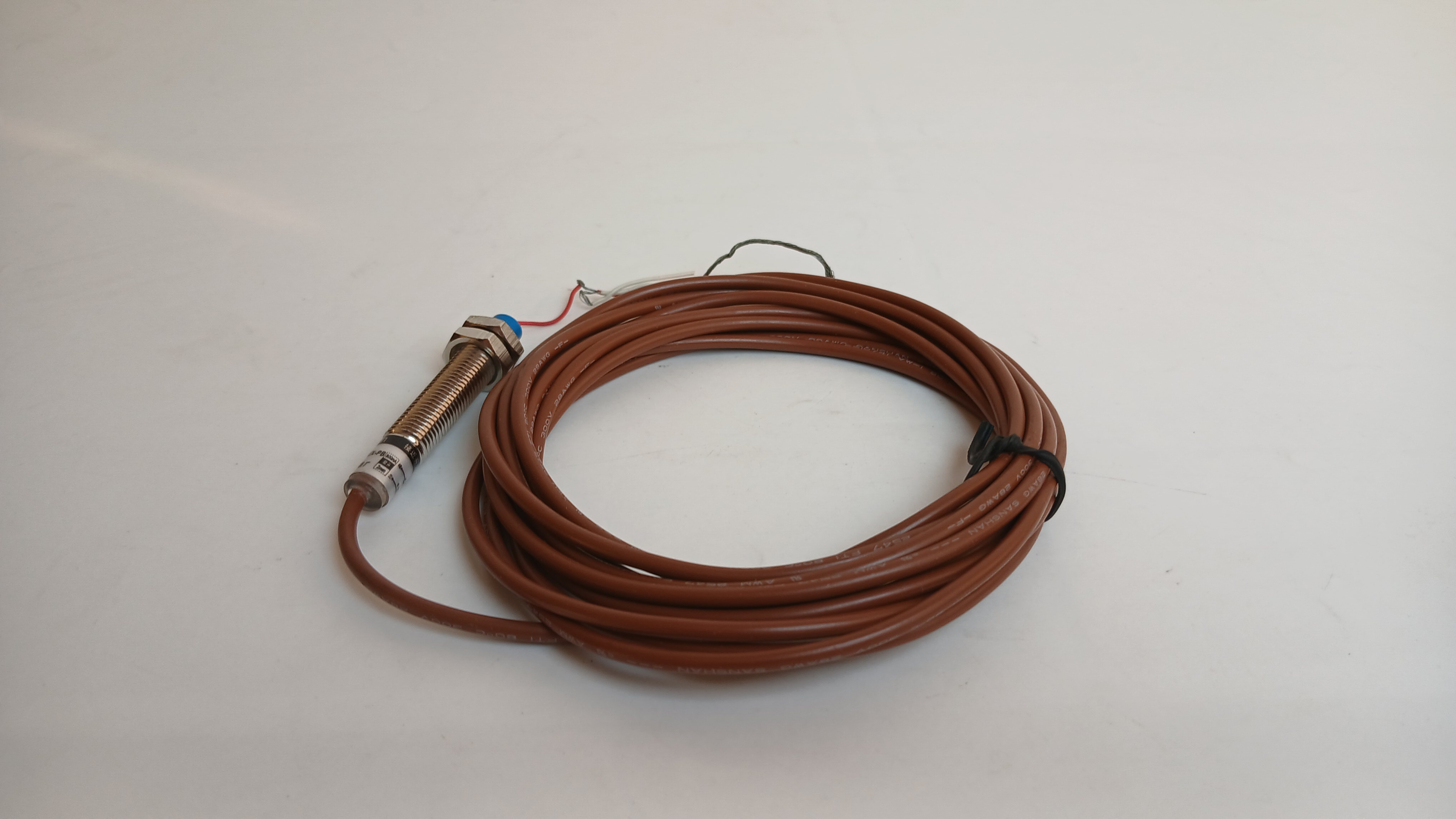

سنسور القایی 8 میلیمتر
JIT-LJ8A3-2-Z/EX-PB
Two wires NO
Detection distance2mm
Setting distance0-1.6 mm
Supply voltage6-36Vdc
Output currentDC type: 300mA max; AC Type: 400mA
Standard detected objectMild steel (8x8x1mm)
Sensing objectMagnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency500Hz
Matched mounting bracketM8 mounting bracket
Output indicationRed LED
Short-circuit protectionNo
Reverse connection protectionYes
Insulation resistance50MΩ min (between charging part and housing)
Dielectric strength1000Vac, 1min (between charging part and housing)
IP RatingIP65
Operating temperature-25 to 70 ℃ (13 to 158 ℉)
Cable length1.2m, PVC cable
برند:
JIT
وضعیت کالا:
نو و آکبند
