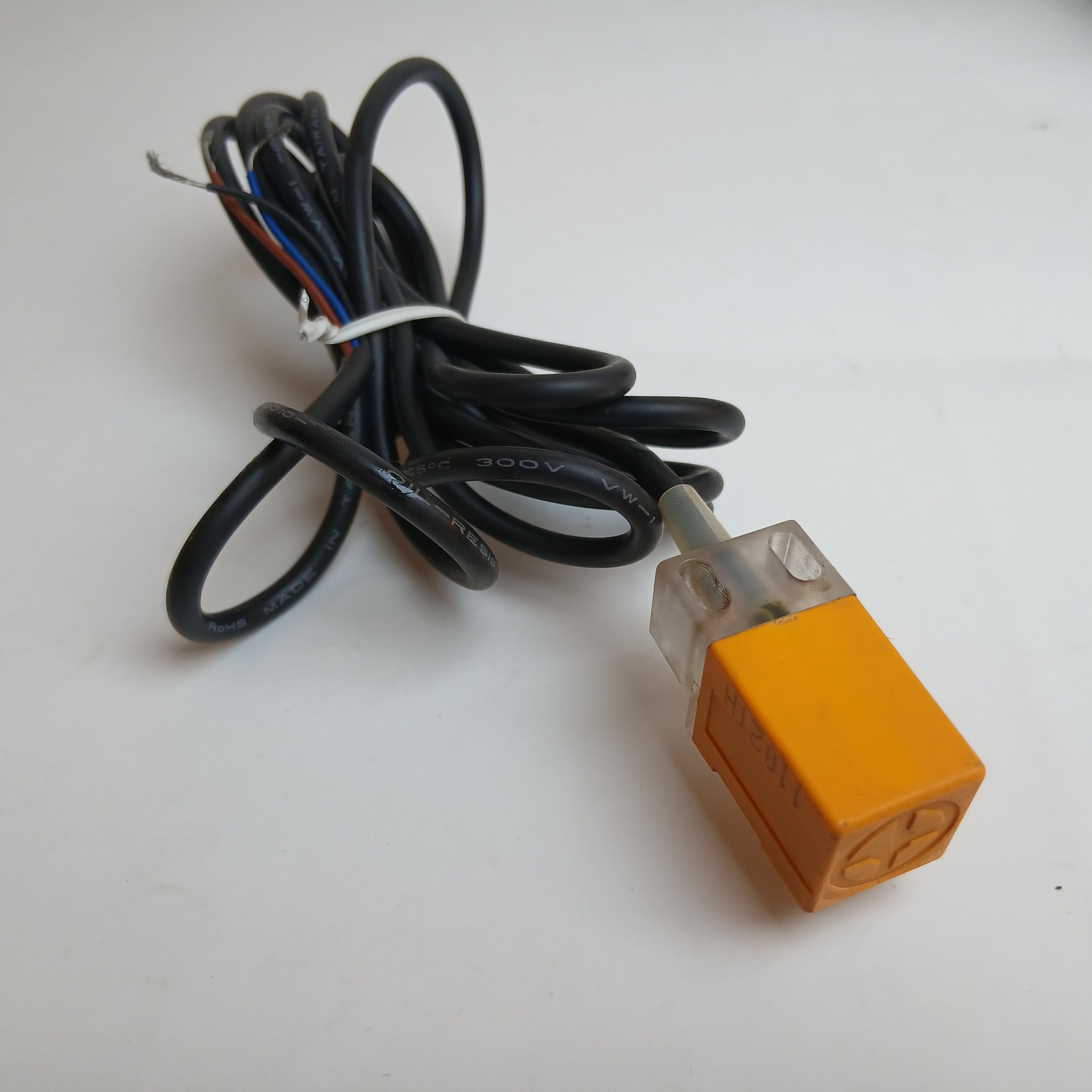

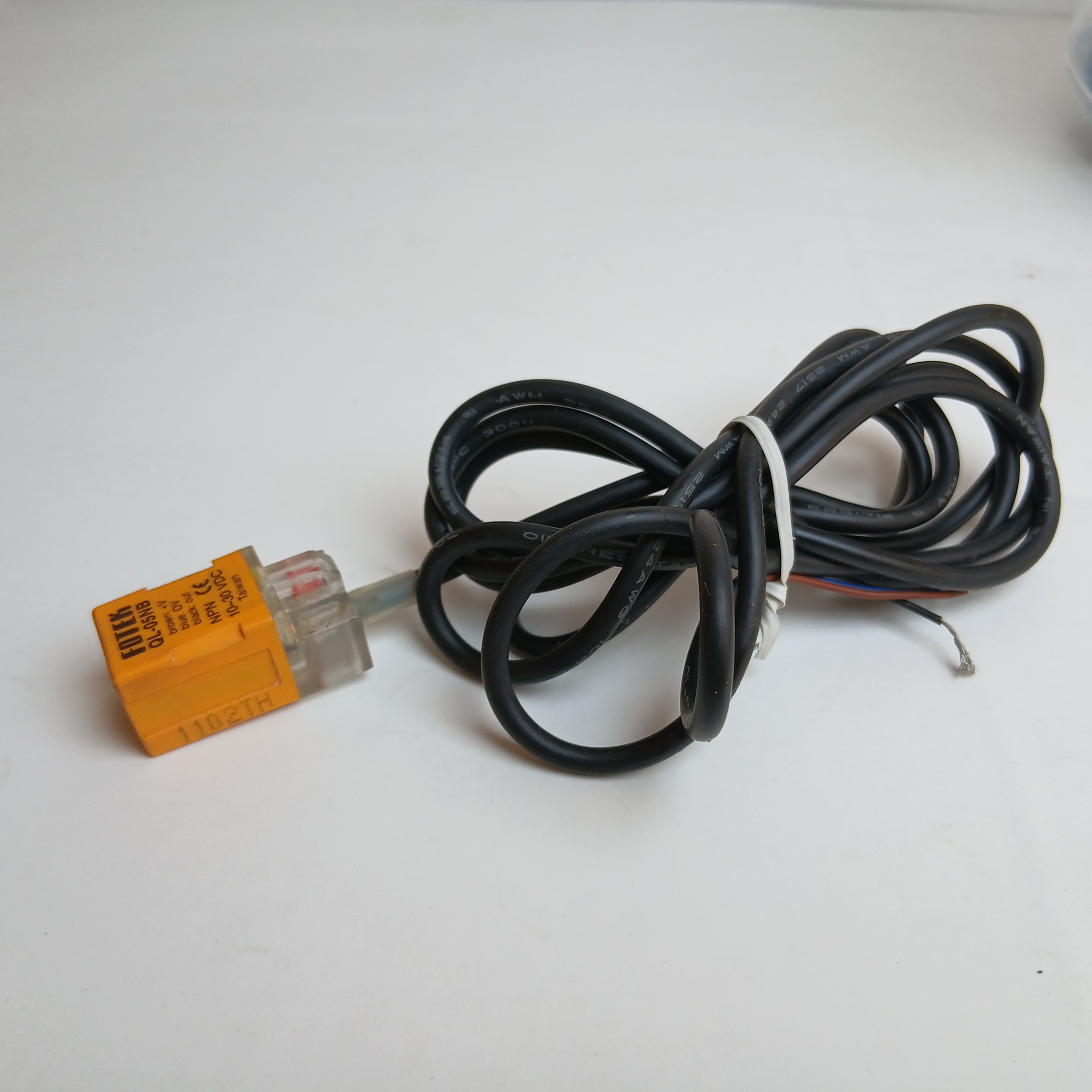

پروکسی سوئیچ القایی مکعبی

FOTEK
QL-05NB
External dimensions = 17x17x35 mm
Installation type = Non-shielded
Detection distance = 5mm±10%
Setting distance = 0-4 mm
 Supply voltage = 10-30Vdc; 110-220Vac (36-250Vac), 50/60Hz / 24vdc

Rated output current = N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object = Mild steel (18x18x1mm)
