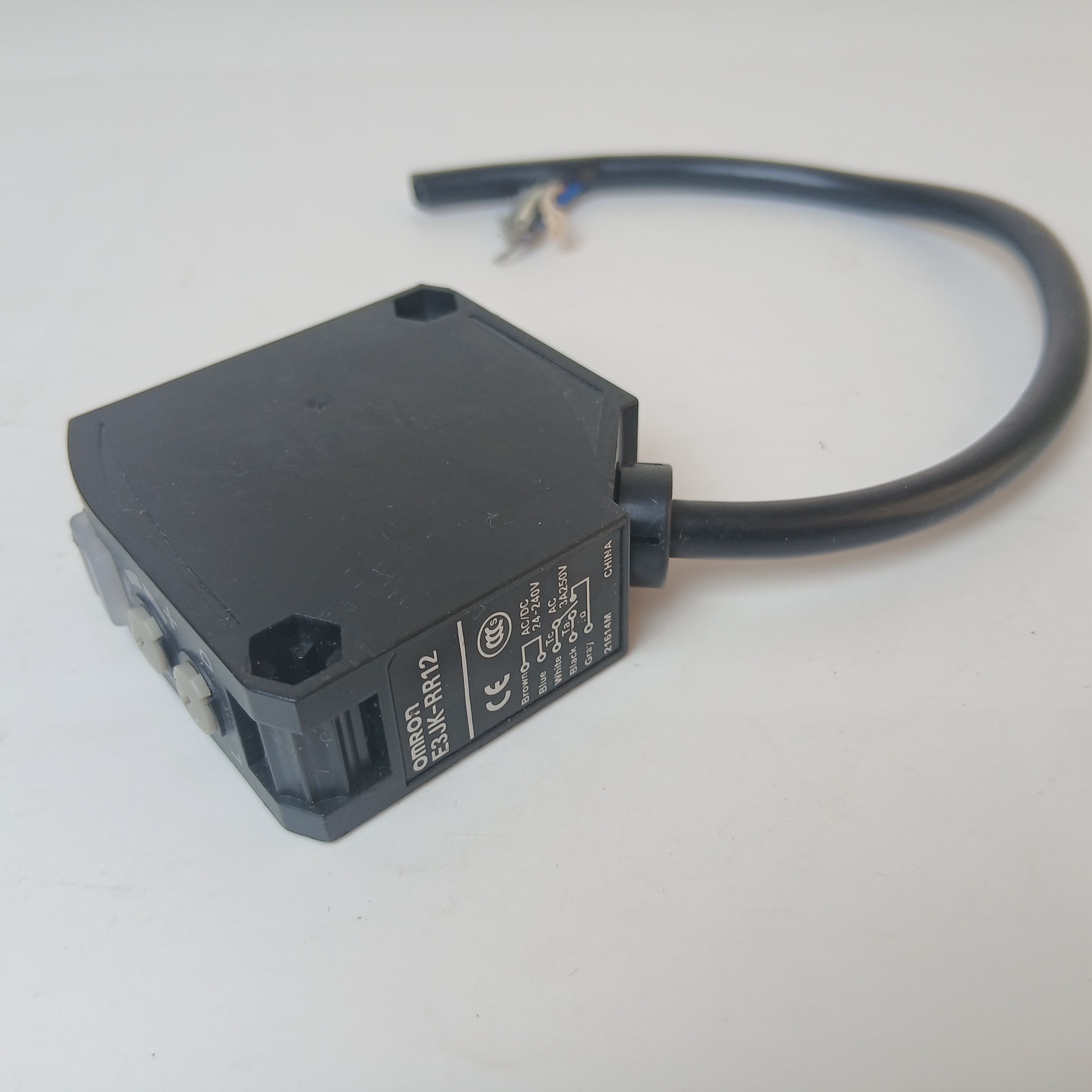

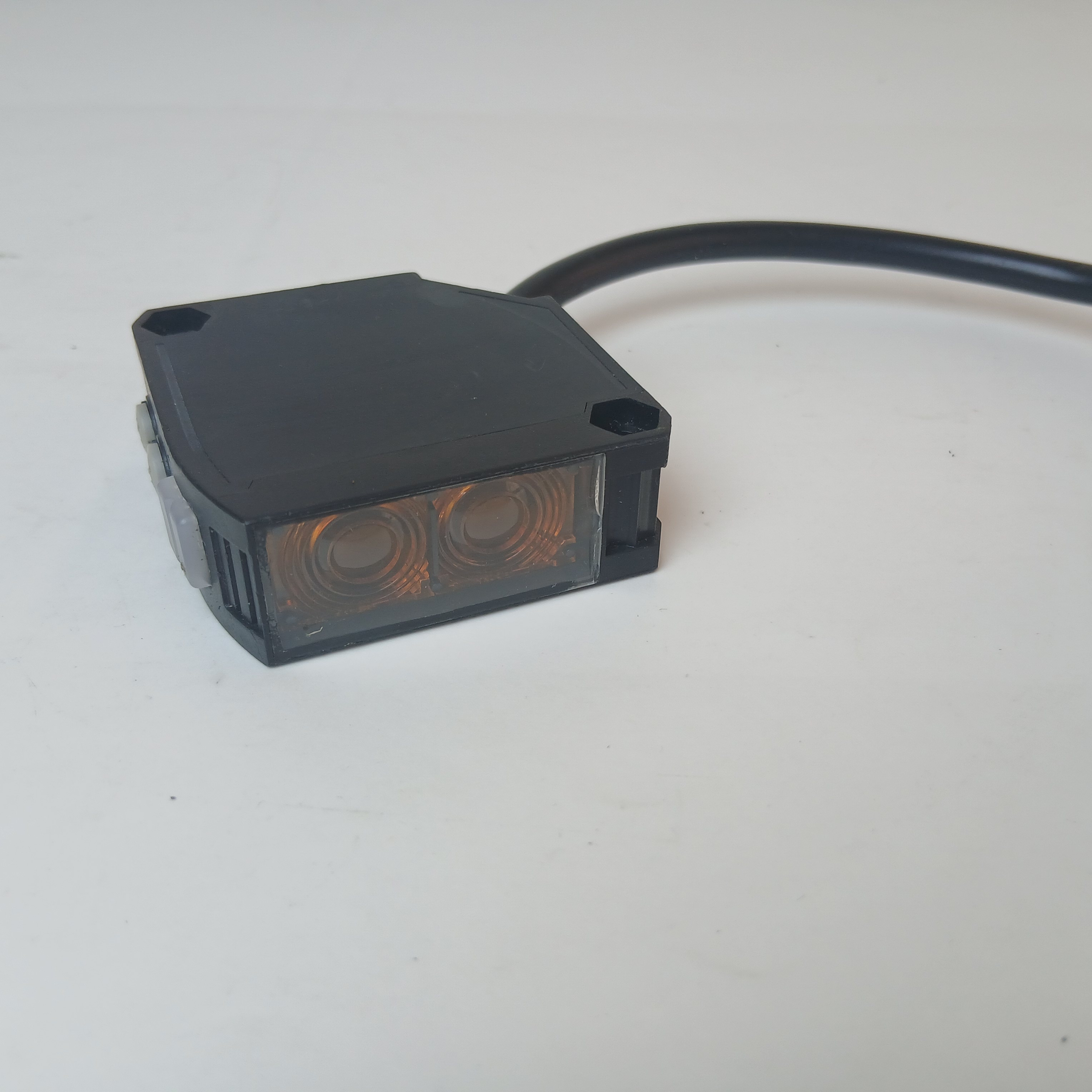

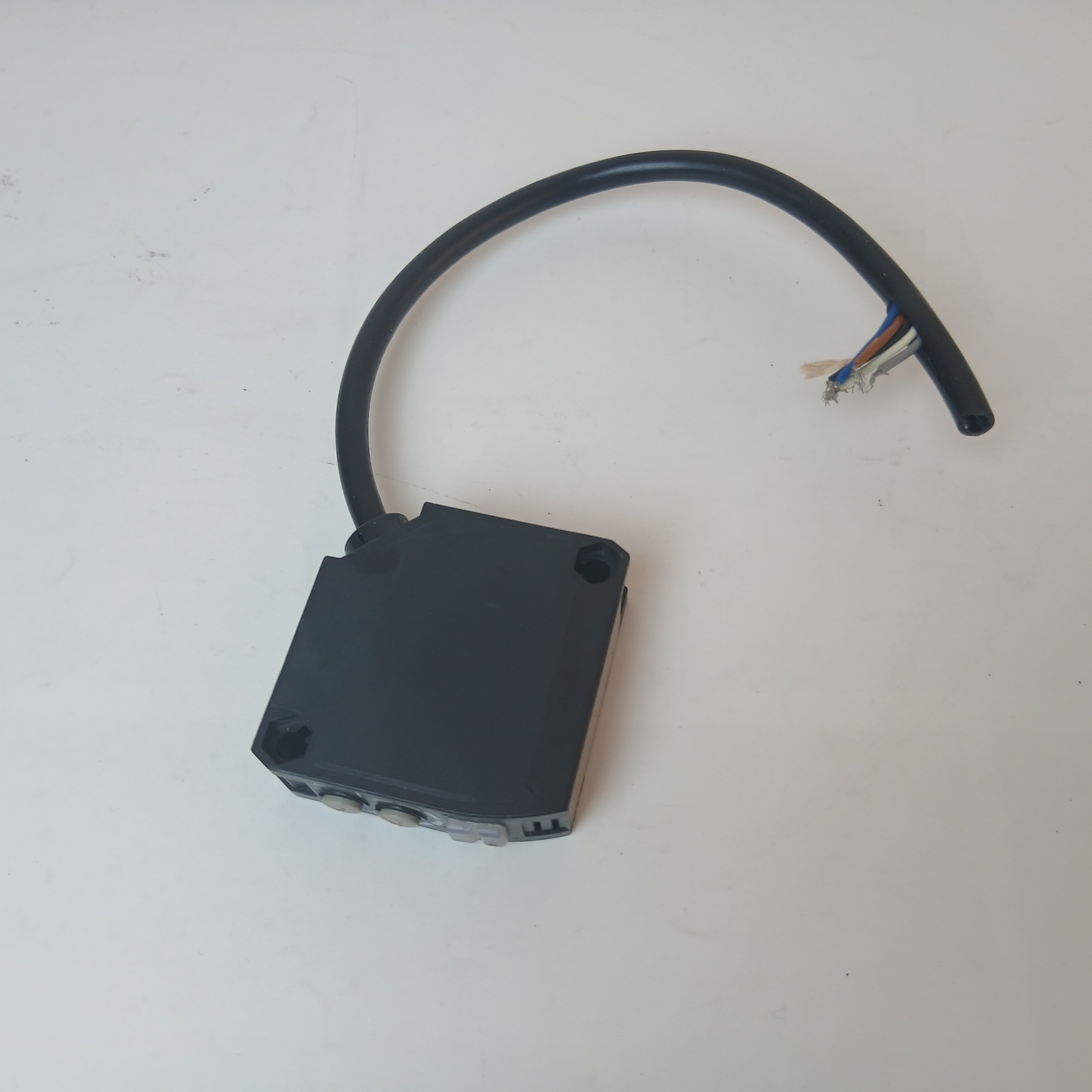

E3JK-RR12
پروکسی سوئیچ نوری مکعبی یک طرفه
Shape: Square type
Sensing method: Retro-reflective with M.S.R. function
Sensing distance: When using the E39-R1: 100 mm to 6 m
When using the E39-R2: 100 mm to 10 m
Standard sensing object: Opaque: 75 mm dia. min. (When using the E39-R1)
Opaque: 100 mm dia. min. (When using the E39-R2)
Directional angle1.5 ° min.
Light source: Red LED (624 nm)
Power supply voltage: 24 to 240 VAC±10% 50/60 Hz
24 to 240 VDC±10% ripple (p-p) 10% max.
Power consumption: 2 W max.
Control output: Relay output (SPDT)
250 VAC 3 A (cosφ= 1) max.
5 VDC 10 mA min.
Life expectancy (relay output) Electrical: 100 thousand times or more (switching frequency 1800 times/hour)
Mechanical: 50 million times or more (switching frequency 18000 times/hour)
Operation mode: Light-ON/Dark-ON selectable
Response time: 20 ms max.
Sensitivity setting: Single-turn adjustment
Ambient illuminance: Incandescent lamp: 3,000 lx
Sunlight: 11,000 lx
Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) 35 to 85 % (with no condensation)
Ambient humidity range (Strage) 35 to 95 % (with no condensation)
Insulation resistance20 MΩ min. (500 VDC megger)
Dielectric strength1500 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s2 3 times each in X, Y and Z directions
Malfunction: 100 m/s2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP64
Connection methodPre-wired models (Cable length 2 m)
IndicatorOperation indicator (orange), Stability indicator (green)
WeightPackage: Approx. 180 g
AccessoriesInstruction manual
MaterialCase: ABS
Lens: Methacrylate resin
Display: Methacrylate resin
Adjustment: POM
Cable: Polyvinyl chloride (PVC)
پارت نامبر:
E3JK-RR12
برند:
OMRON
وضعیت کالا:
استوک
