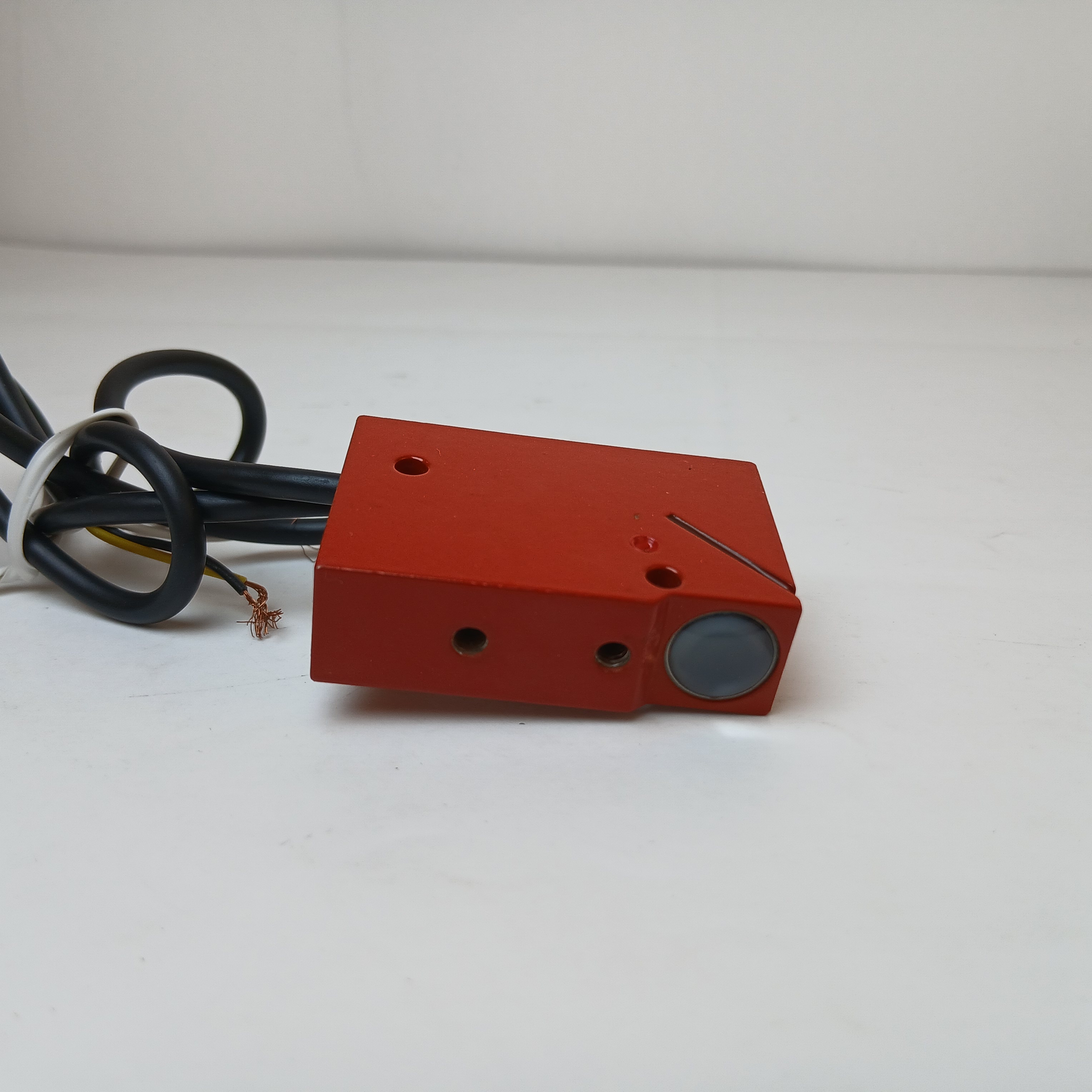

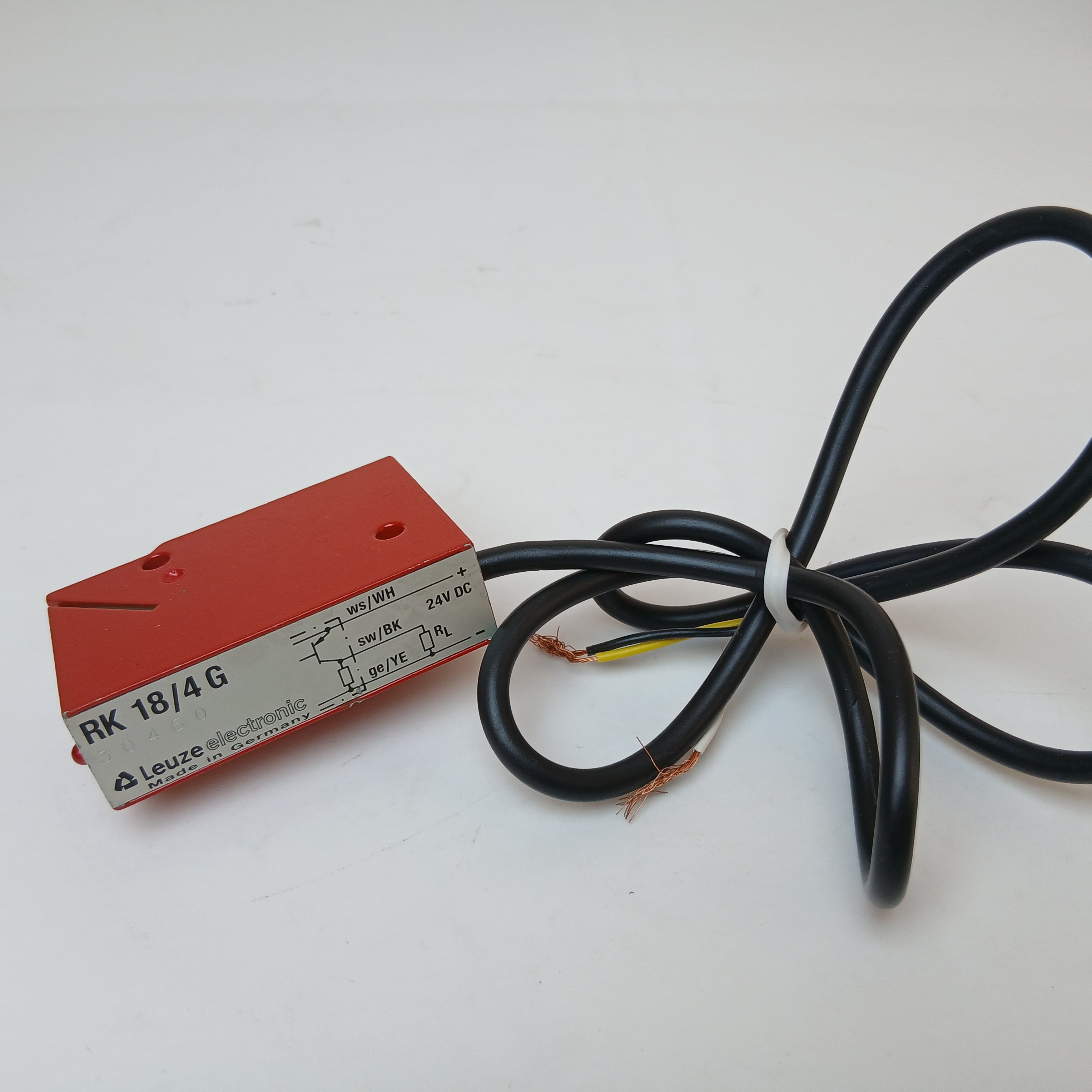

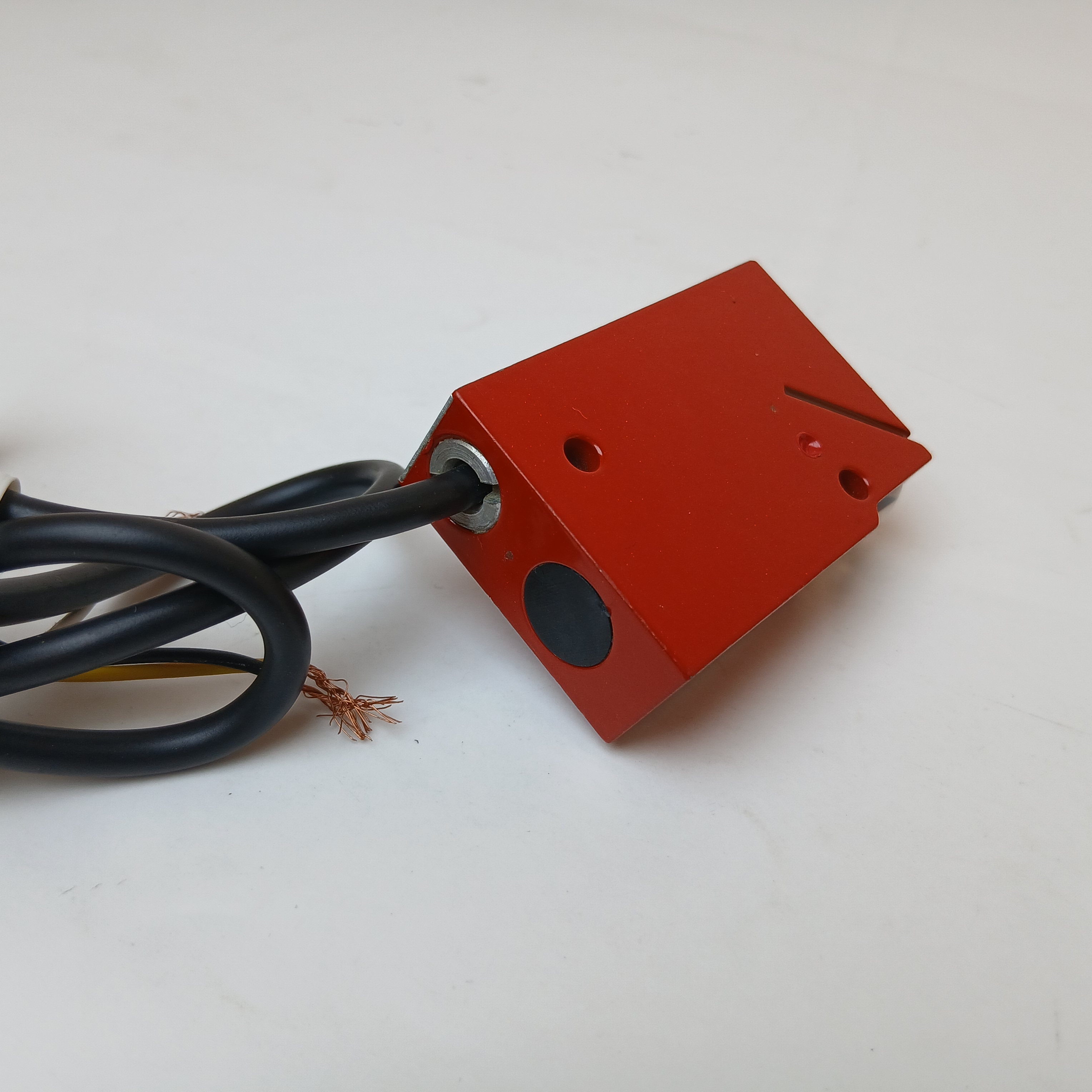

RK 18/4 G

Unpolarized retro-reflective photoelectric sensor

Series18
Operating principle : Reflection principle
Application:  Detection of highly transparent bottles / Detection of highly transparent films and glass panes

Operating range: 0 ... 2.4 m (guaranteed operating range)
Operating range limit : 0 ... 3 m (typical operating range)
Light source : LED, Red
Wave length : 660 nm
Transmitted-signal shape: Pulsed
LED group: 1
Type of light spot geometry: Round

Protective circuit : Polarity reversal protection / Short circuit protected

Supply voltage: UB10 ... 30 V, DC
Current consumption, max.: 35 mA
Residual ripple: 0 ... 15 %, From UB

Open-circuit current: 0 ... 35 mA

Number of digital switching outputs:1 Piece(s)

Type: Digital switching output

Switching element: Transistor, PNP
Switching principle: Light/dark switchable

Number of connections:1 Piece(s)

Function: Signal OUT / Voltage supply
Type of connection: Connector
Thread size: M12
Type: Male
Material: Stainless steel
No. of pins: 4 -pin
Encoding: A-coded

Dimension (W x H x L)15 mm x 50 mm x 33 mm
Housing material: Metal
Metal housing: Zinc
Lens cover material: Glass
Net weight75 g
Housing color: Red
Type of fastening: Mounting thread
Through-hole mounting

Type of display: LED
Number of LEDs2 Piece(s)
Operational controls: Multiturn potentiometer

Ambient temperature, operation: -25 ... 55 °C
Ambient temperature, storage: -40 ... 70 °C
