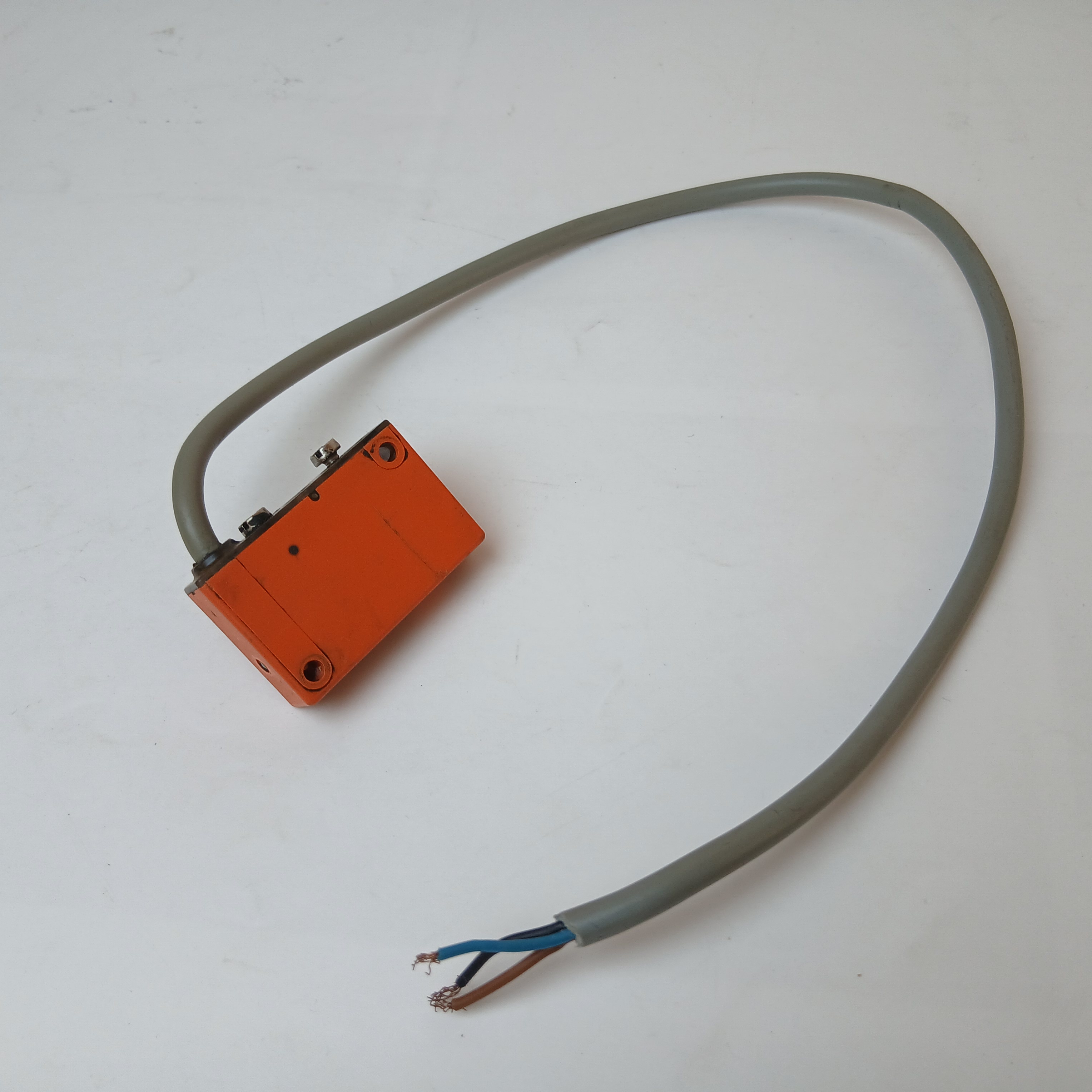

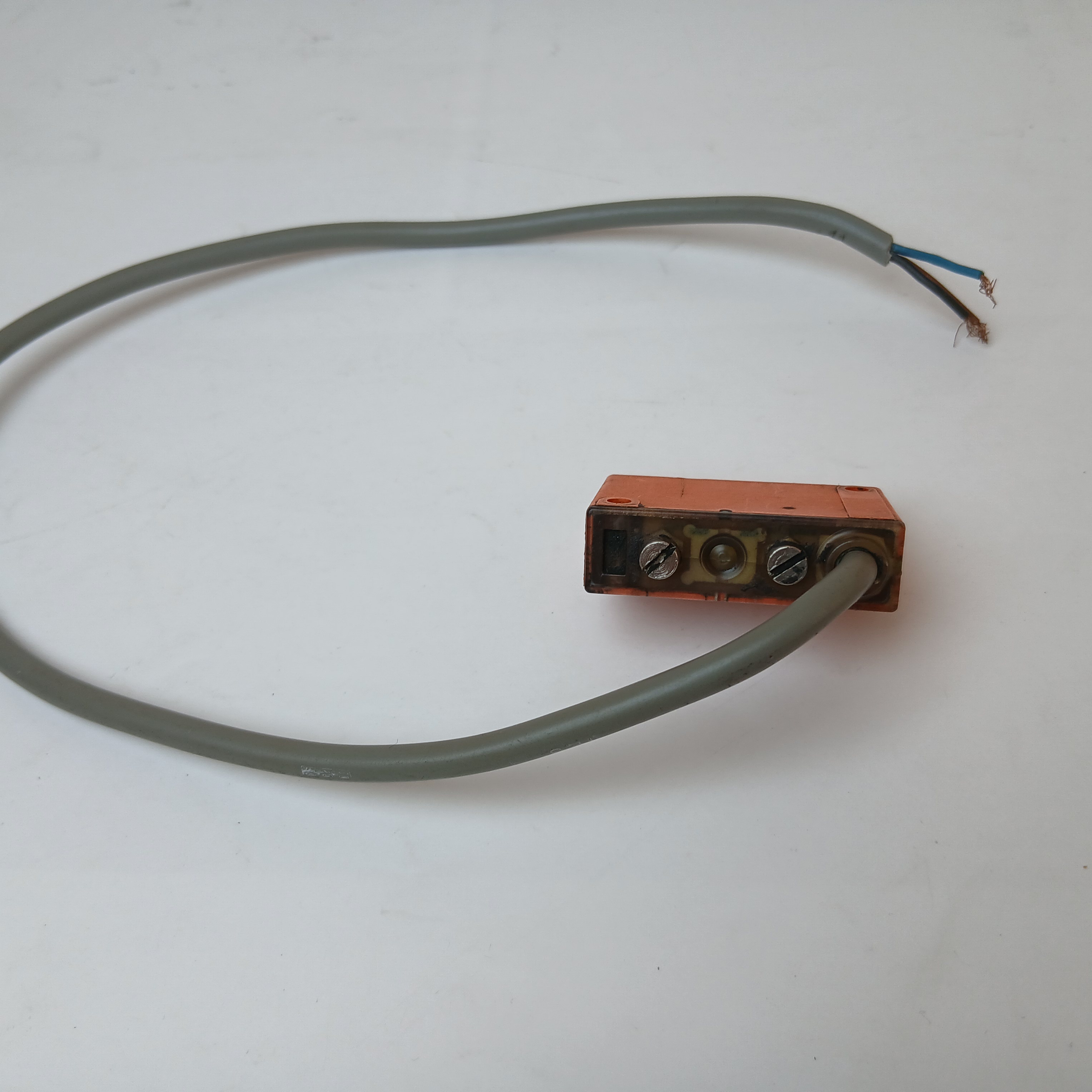

IFL 4-250-10P

Thermoplastic enclosure

DC 3-wire

Double-insulated

Design 250

Standards: DIN VDE 0660-208 / EN IEC 60947-5-2
Housing construction form: Block
Installation conditions (mechanical): not flush
Housing material: Plastic

Active area: Plastic

Operating voltage 10 ... 30 VDC
Type of voltage range DC
No-load supply current I0, typical 3 mA
Rated operating voltage 10 ... 30 VDC
Operating current 200 mA
Switching element Normally open contact (NO)
Protection circuit integrated inductive interference protection
Protection against polarity reversal
Surge protection
Max. fuse rating
Switching frequency, approx. 1,000 Hz
