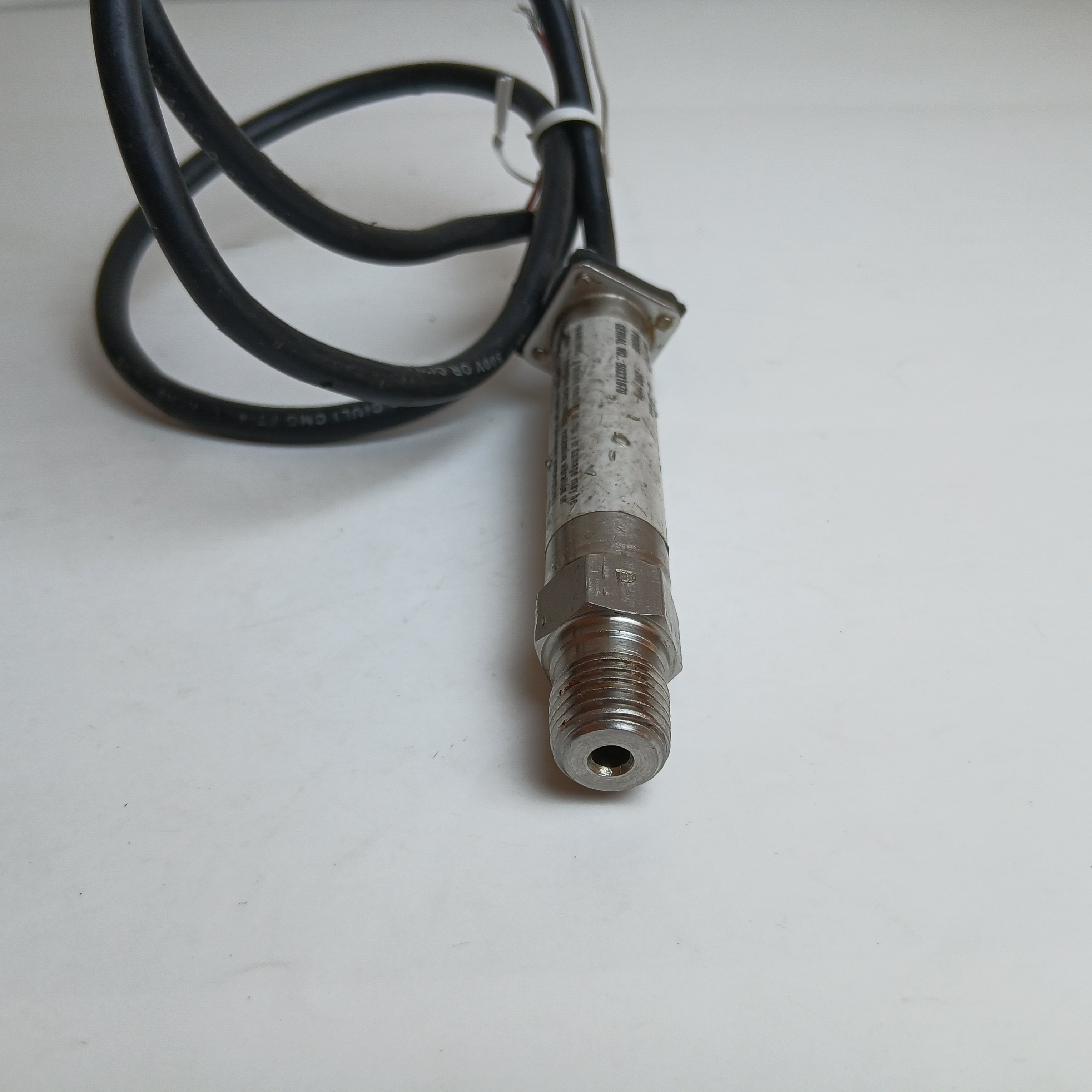

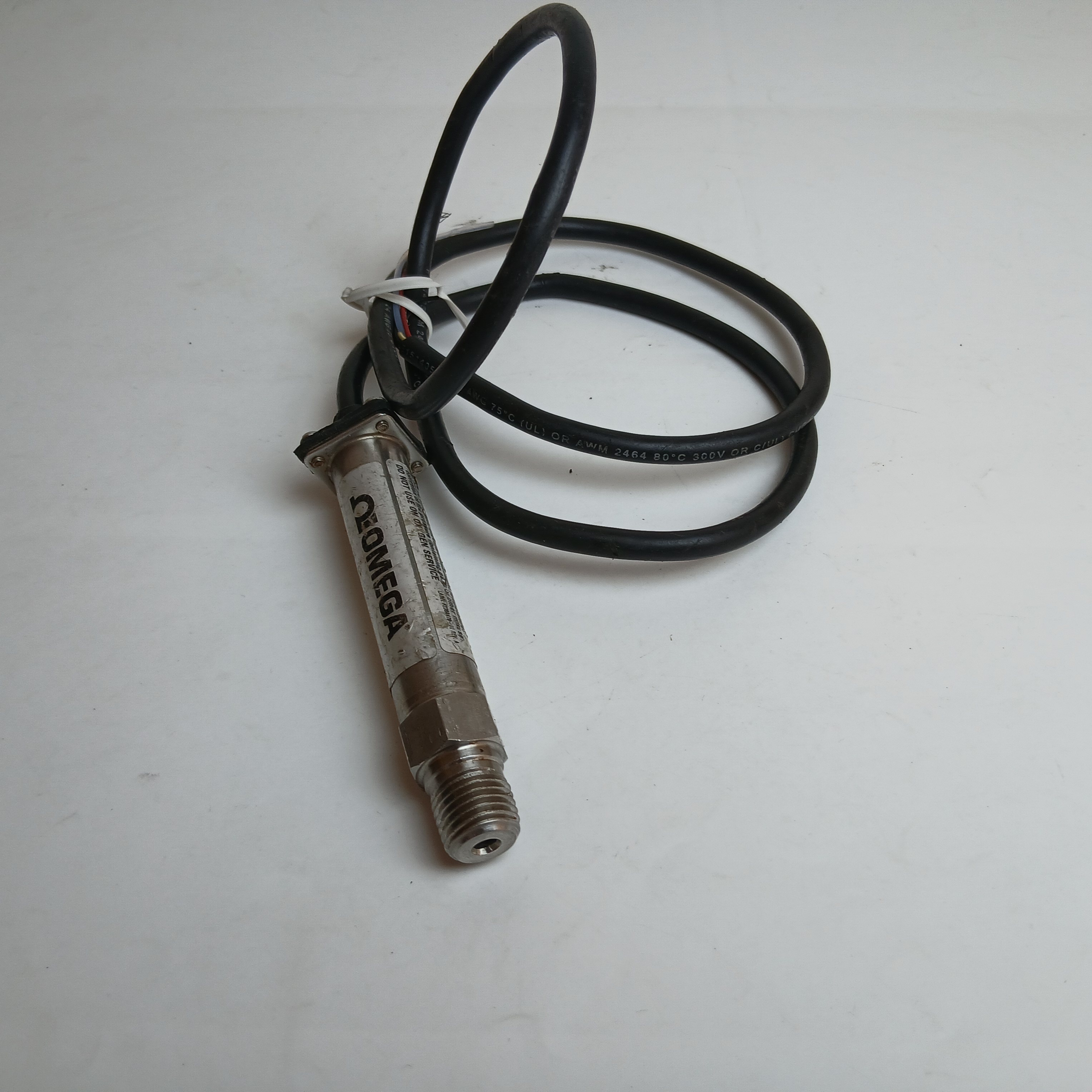

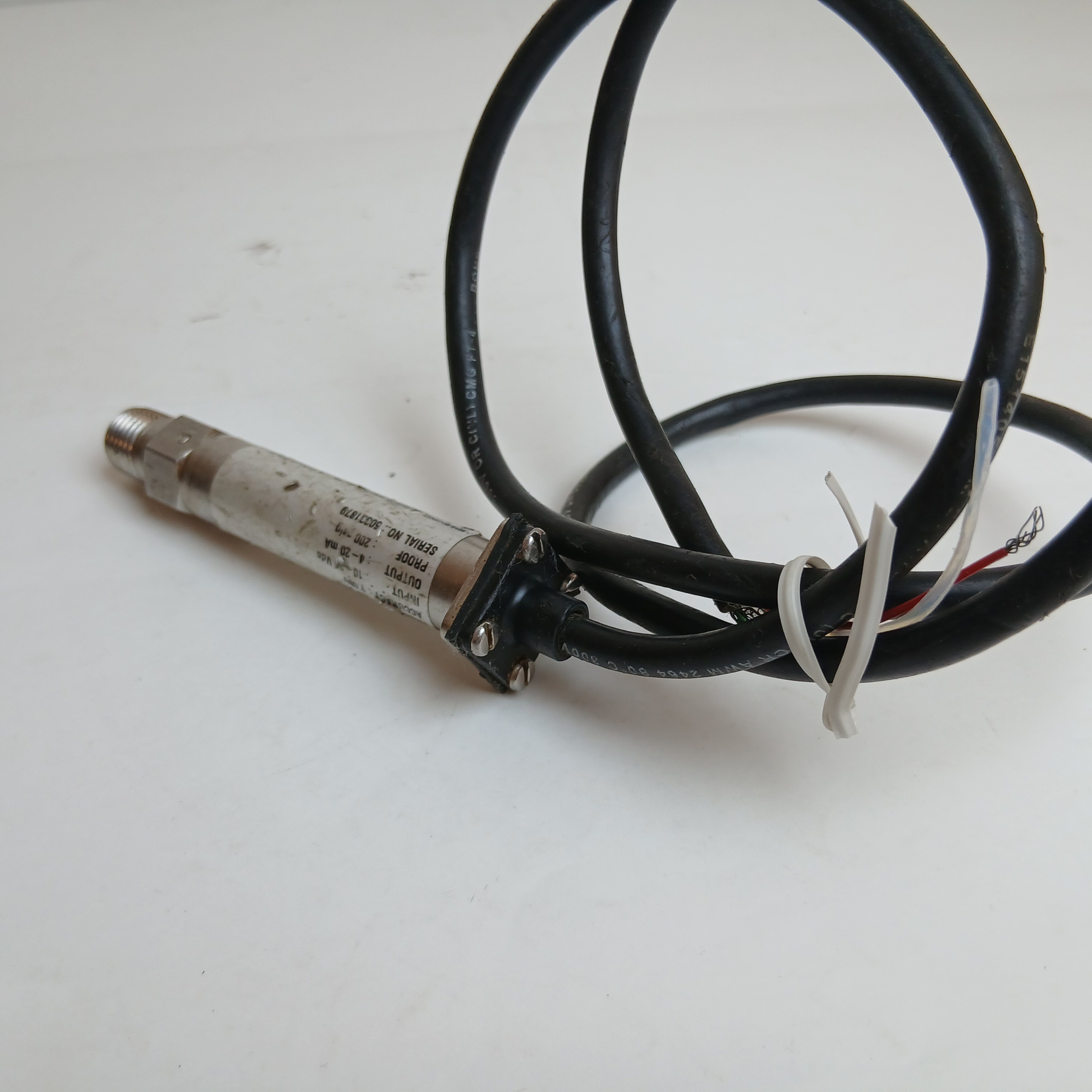

ترانسمیتر فشار قلمی 7 بار

Thin Film Pressure Transmitters, Stainless Steel Construction

Range: 100psi

24vdc

4-20mA

Accuracy:1.0%

Excitation: 10 to 30 Vdc unregulated
Output: 4 to 20 mA (2-wire)
Supply Current: 20 mA
Insulation Resistance: 100 M½ @ 50 V
Accuracy: ±0.4% BFSL (Includes non-linearity, hysteresis and non-repeatability errors)
±1.0% Terminal Point Method Includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors
Hysteresis: ±0.2%
Repeatability: ±0.05%
Stability: ±1.0%/year
Durability: 100 million cycles
Operating Temperature: -48 to 90°C (-55 to 195°F)
Compensated Temperature: -29 to 82°C (-20 to 180°F)
Thermal Zero Effect: ±0.07% FS/°C
Thermal Span Effect: ±0.07% FS/°C
Proof Pressure:
15 to 2000 psi = 200% Full Scale;
3000 to 5000 = 150% FS
7500 to 20000 = 120% FS
Burst Pressure:
15 to 2000 psi = 800% FS
3000 to 5000 = 500% FS
7500 to 20000 = 500% FS
Gages: Thin film polysilicon
Diaphragm: 17-4PH Stainless Steel
Case: 300 Series Stainless Steel
Pressure Connection:
15 to 10,000 psi: 1/4 NPT
15,000 and 20,000 psi = female AMINCO fitting (9/16-18 UNF)
Electrical Connection: 0.9 m (36") braided shield PVC Cable or Connector.
Mating Connector (PX615): PT06F8-4S, sold separately
Response Time: 5 ms
Construction: Sealed units, except PX605 ≤500 psi is vented to room
