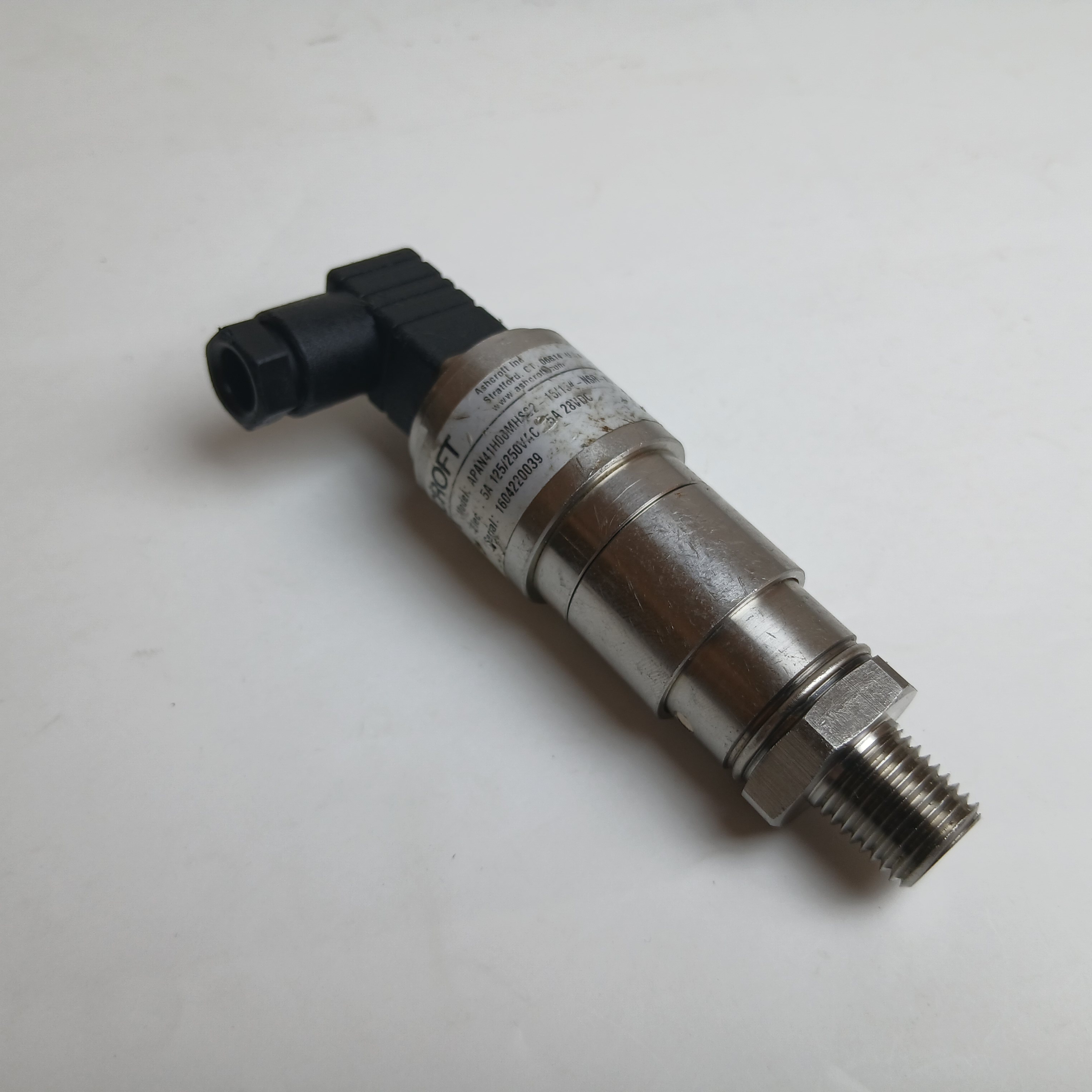

پرشر سوئیچ قلمی 1بار

ItemPressure Switch
Ac Contact Rating5A @ 125/250 V
Actuator StyleDiaphragm
Adjustable Range TypeField Adjustable
Burst Pressure9500 psi
Circuit TypeSnap Switch
Compatible MediaCompressed Air, Liquid
Compatible WithBuna And 316 Stainless Steel
Electrical Connection TypeMicro DIN Connector
GradeGrade 316L
Hazardous Location SpecificationNot Rated
Housing MaterialStainless Steel
Ip RatingIP67
MaterialStainless Steel
Max. Set Point-1 psi
Maximum Set Point-1 psi
Minimum Set Point11.5 psi
Nema Enclosure RatingNEMA 6
No. Of Contact Form2 , NO/NC
Operating Temp. Range-40°F to +210°F
Operating Temperature - Maximum212°F
Operating Temperature - Minimum-40°F
Overall Height3.13"
Overall Width1.13"
Pressure - Maximum15 psi
Pressure - Minimum-15 psi
Pressure Connection TypeMNPT
Range-15 psi to +15 psi
Resistance PropertiesWatertight
SeriesA-Series
Wetted Materials316 Stainless Steel
Standards3A APPROVED, CE, CRN, CSA, ROHS, UL LISTED
