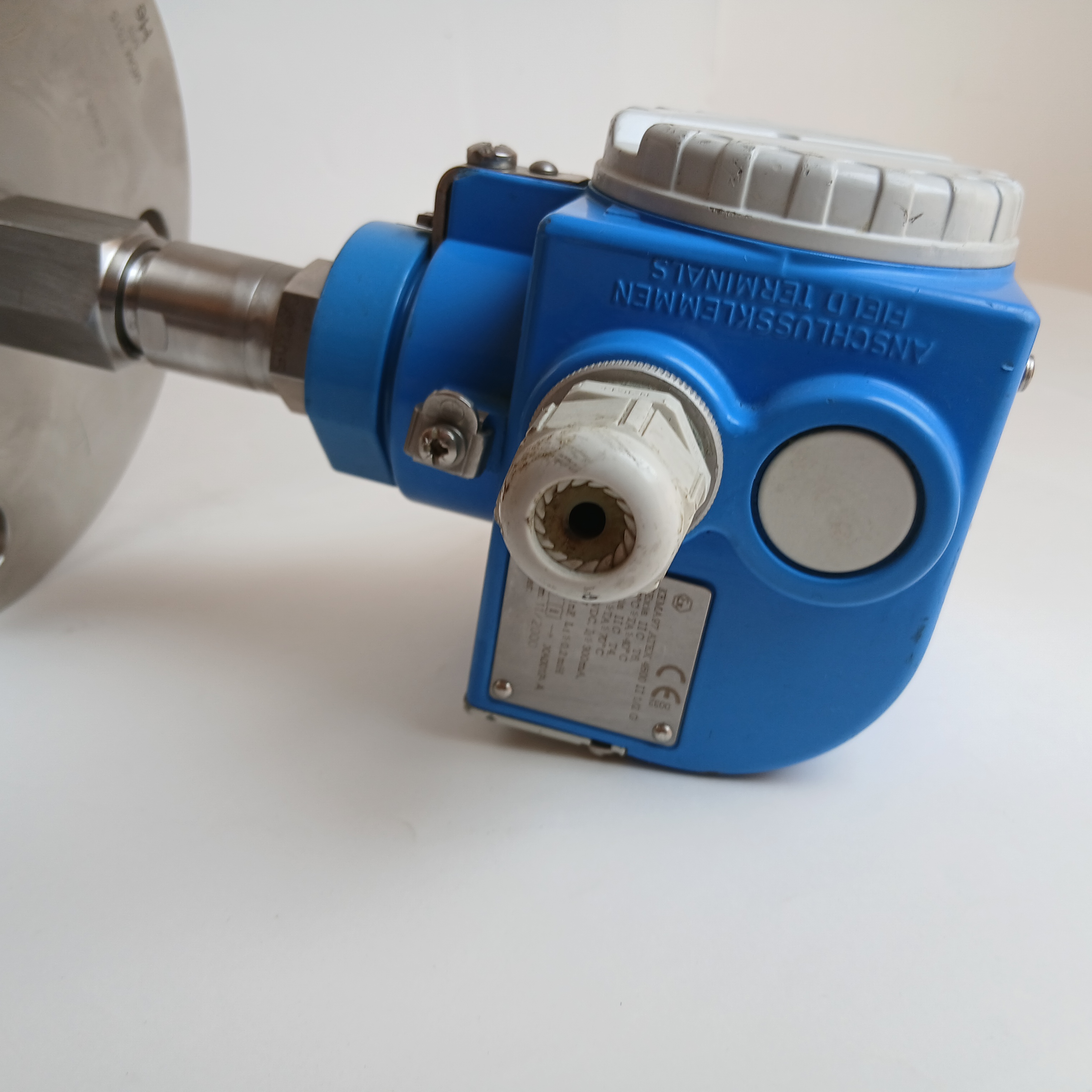

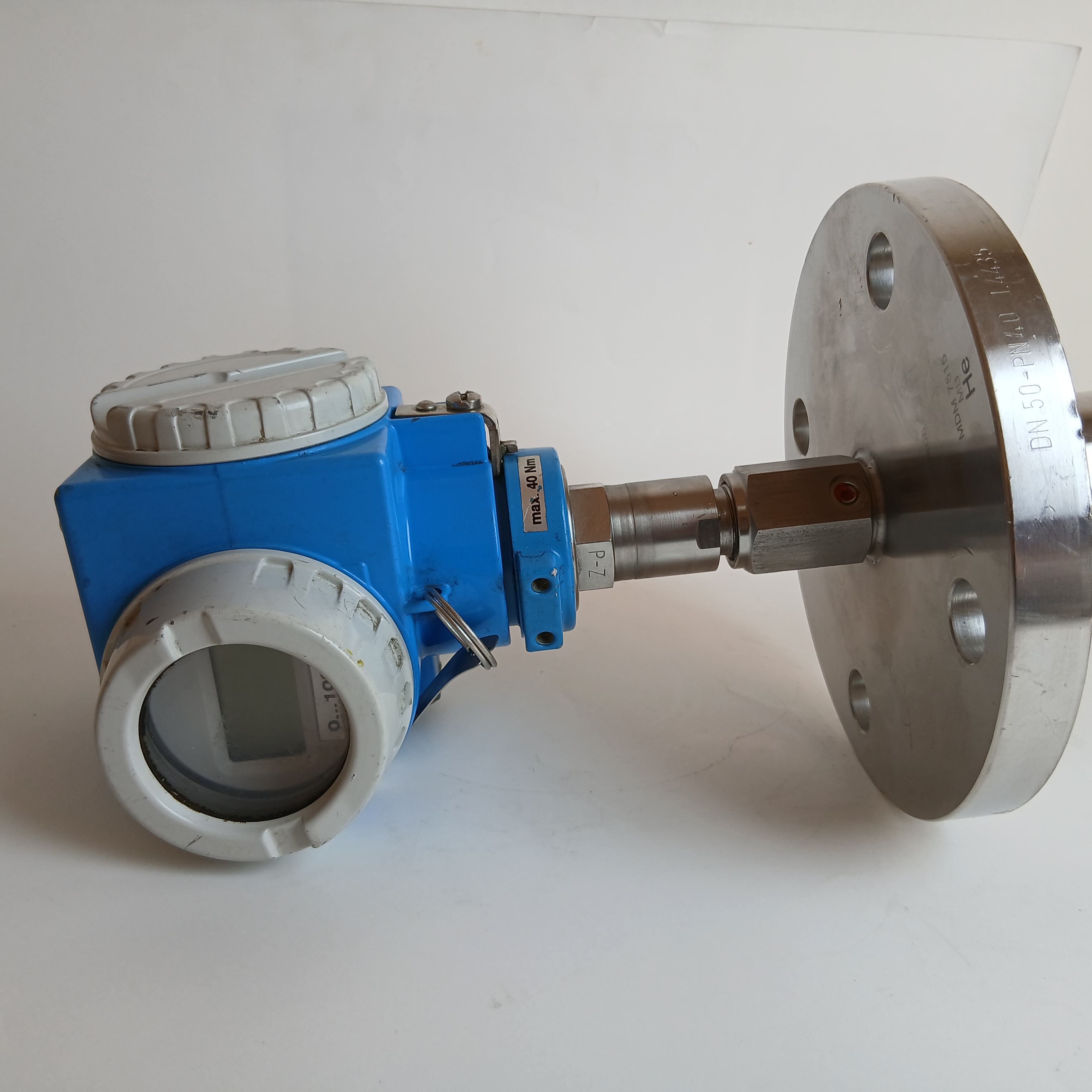

PMP635-G33HBM1AGK1
ترانسمیتر فشار 1bar
PMP635-G33HBM1AGK1
G = Approval: ATEX II 1/2G EEx ia IIC T4/T6
3 = Housing; Cable Entry: Alu + LCD; gland M20 (EEx d > thread M20)
3H = Sensor Range; Sensor Overload Limit: 0...1bar/100kPa/15psi gauge; 4bar/400kPa/60psi
B = Calibration; Unit: Customised; see additional spec. + Protocol
M = Output: 4-20mA Hart + advanced software
1 = Additional Option: Basic version
A = Fill Fluid; Transmitter Mounting: Silicone oil; Direct

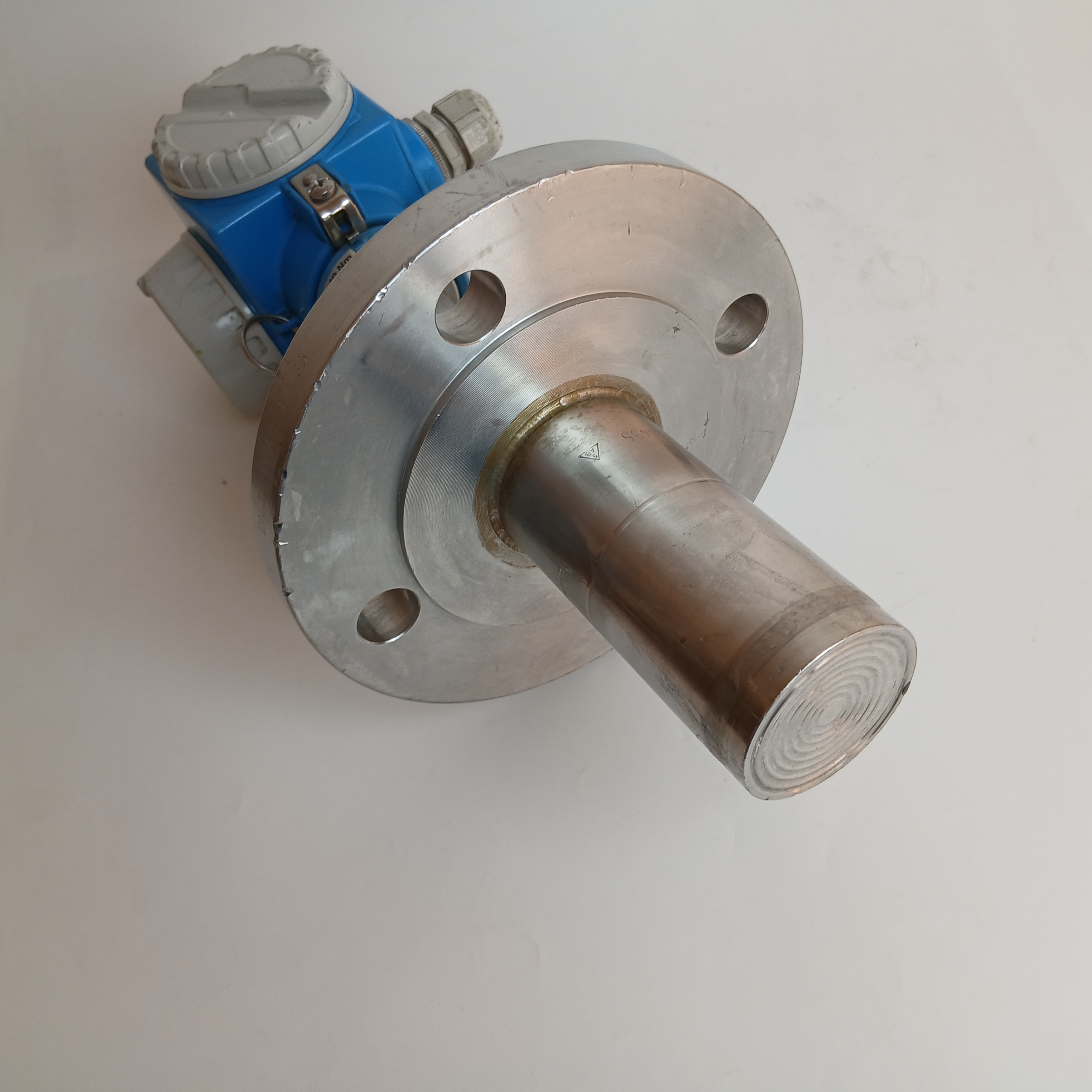

GK = Process Connection: DN50 PN10-40 B1, 316L, 100mm Tubus flange EN1092-1 (DIN2527 D)
1 = Membrane Material: 316L
پارت نامبر:
PMP635-G33HBM1AGK1
برند:
Endress Hauser
وضعیت کالا:
استوک
