سنسور القایی مکعبی

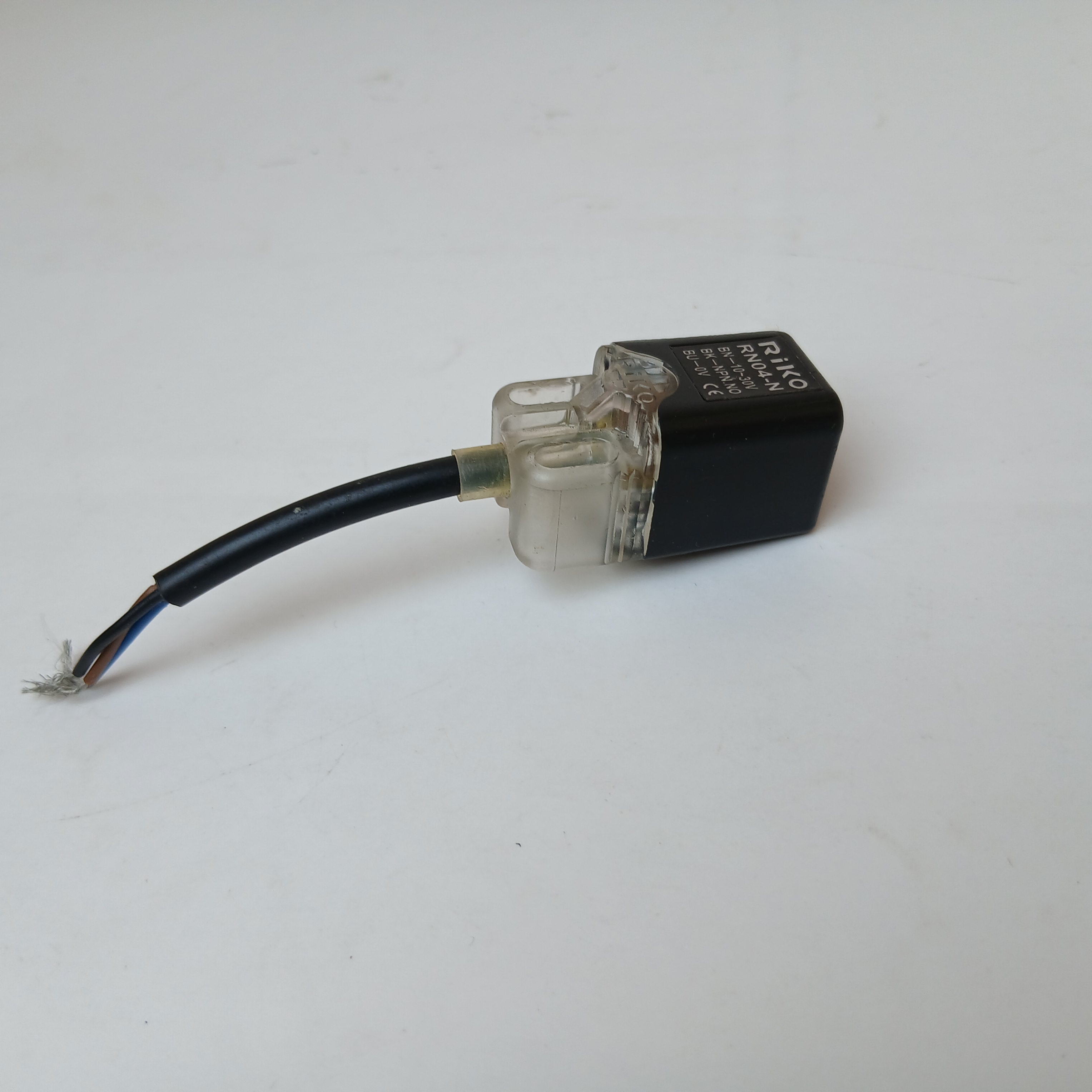

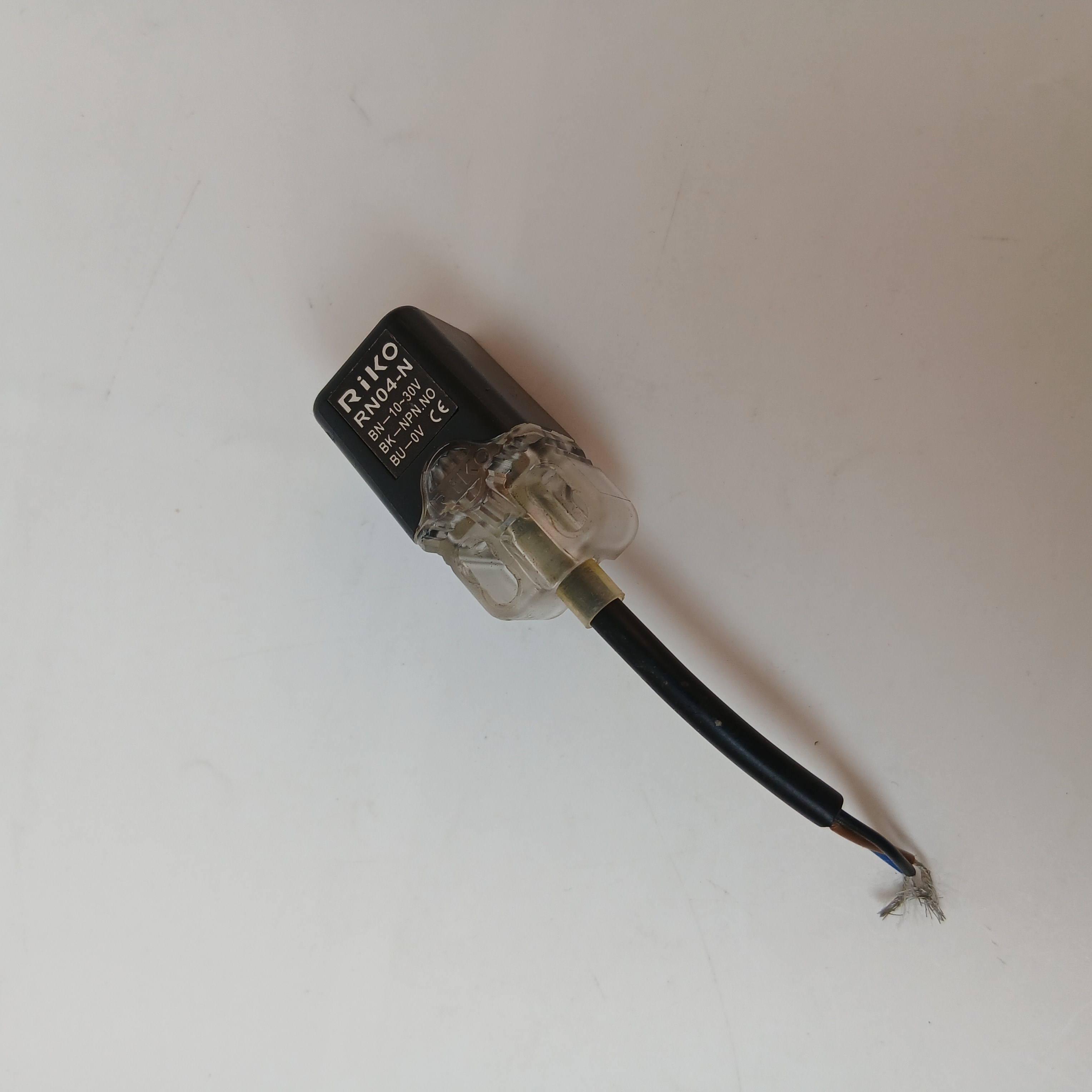

Rectangular Inductive Proximity Sensor

The IP67 rating is designed to the effective waterproof.
Build-in twin LED,convenient for checking the operaton.
Plug-in connector type is available, easy to connect, anyone can replace the new sensor in a minute.
Oval hole for easy installation and adjustment

Sensing distance: 5mm

Secure sensing distance: 0to4mm

Standard sensing object: Iron 18x18x1mm

Sensing Surface: ≦10% of sensing distance

Response time: 2ms MaX

Operating voltage: DC 10 ~ 30V

 Current consumption: ≦8 mA no-load

Leakage current: ≦1.1 mA no-load

 Load current: 100 mA Max. at DC 30V

Residual voltage: ≦ DC 1.5V

Insulation resistance: 20M Ω min. (DC500V)3

Voltage with standability: AC1000V 60Hz for 60 Sec

 -20 ℃ ~ +60 ℃ : Operating temperature

 Protection degree: IP64 or IP67

Wiring method : N/P：Ø4.2 x 2M / 3wires
