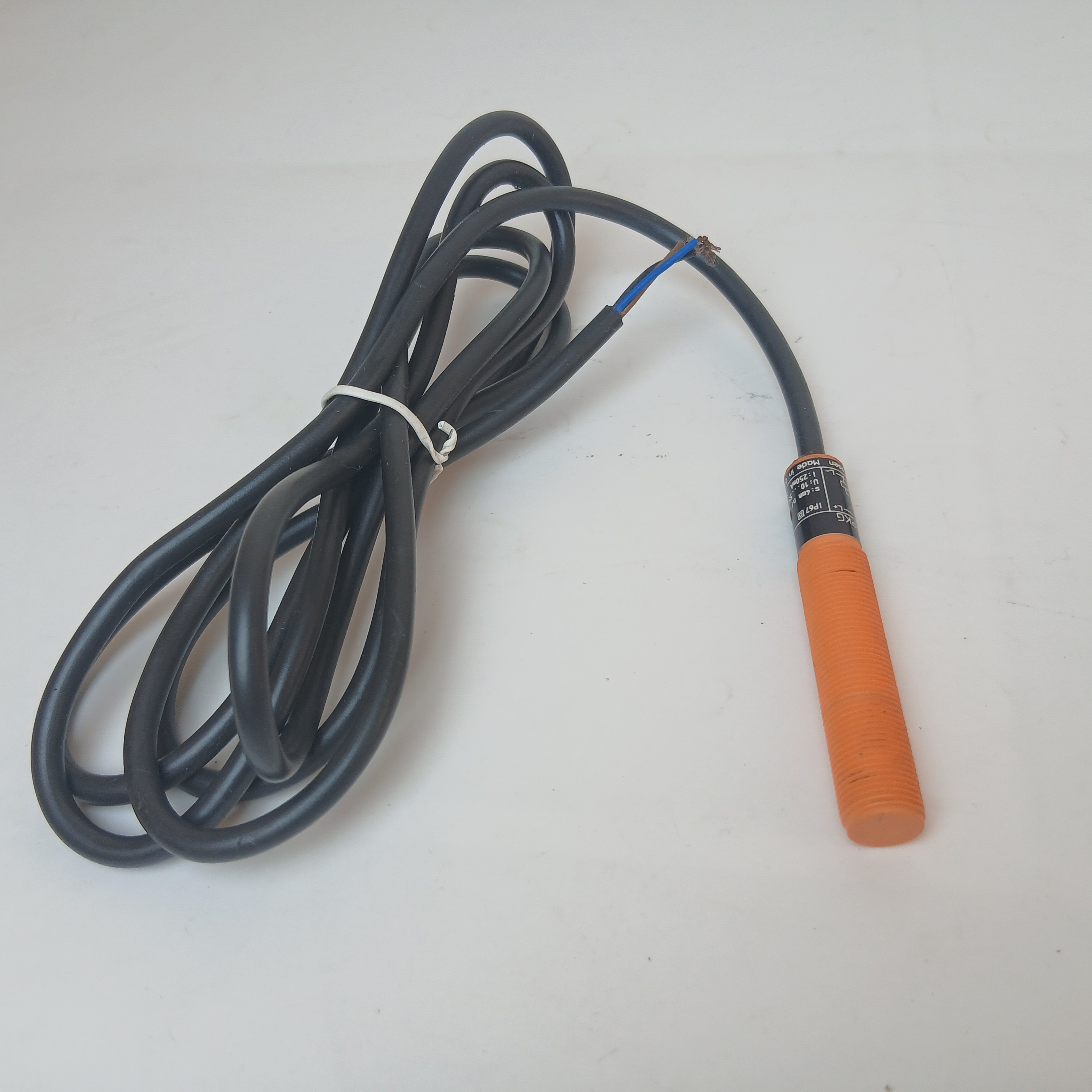

IF-3004-BPKG

Inductive sensor
Electrical design PNP
Output function normally open
Sensing range[mm]4
Housing threaded type
Dimensions[mm] M12 x 1 / L = 71
Electrical data
Operating voltage[V] 10...36 DC
Current consumption[mA] 15; (24 V)
Protection classII
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]250
Switching frequency DC[Hz]400
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range[mm]4
%Real sensing range Sr[mm] 4 ± 10
Operating distance[mm]0...3.25
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr] 1...15
Switch point drift[% of Sr] -10...10
Operating conditions
Ambient temperature[°C]-25...80
Protection IP 67
