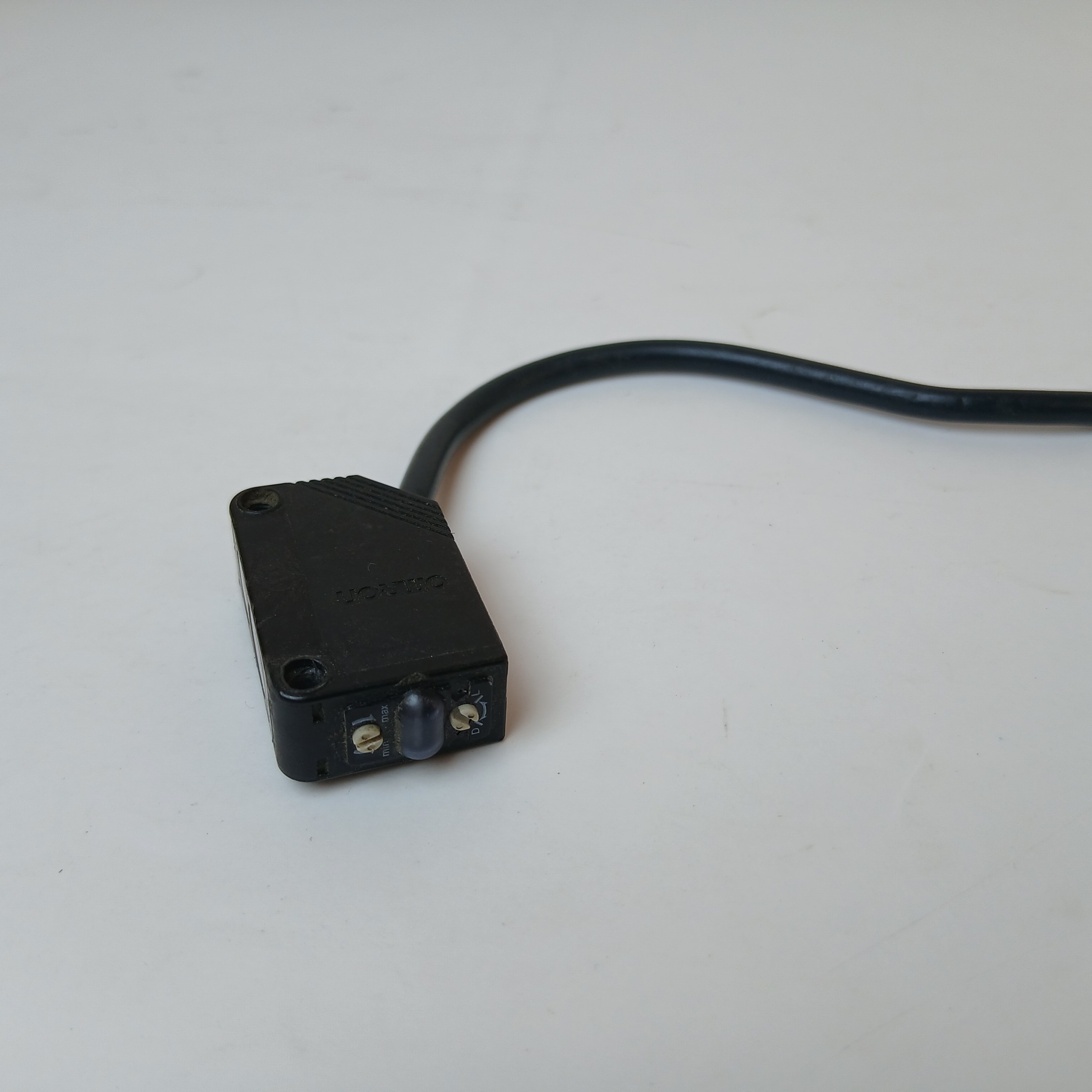

E3Z-LS61

Compact Photoelectric Sensor with Built-in Amplifier, Square type, Sensing distance: 20 to 200 mm (BGS max setting), NPN open collector, Pre-wired model, 2 m

Sensing method : Distance-setting
Sensing distance : 20 to 200 mm
Light source : Red LED (670 nm)

Connection method : Pre-wired models

Shape: Square type
Sensing method: Distance-setting
Sensing distance: 20 to 200 mm
Setting range: White paper 100 x 100 mm: 40 to 200 mm
Black paper 100 x 100 mm: 40 to 160 mm
Detection range: BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm)
FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm)
Differential distance10% max. of setting distance
Reflectivity characteristic (black-white error)10% max. of setting distance
Light source: Red LED (670 nm)
Power supply voltage12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption30 mA max.
Control output: NPN open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max.
Operation mode: Light-ON/Dark-ON selectable
Protective circuit: Output short-circuit protection, Power supply reverse polarity protection
Response time: Operate or reset: 1 ms max.
Sensitivity setting: 5-turn endless adjustment
Ambient illuminance: Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max.
Ambient temperature range (Operating)-25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage)-40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating)35 to 85 % (with no condensation)
Ambient humidity range (Strage)35 to 95 % (with no condensation)
Insulation resistance20 MΩ min. (500 VDC megger)
Dielectric strength1000 VAC 50/60 Hz 1 min
Vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance: Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection: IEC: IP67

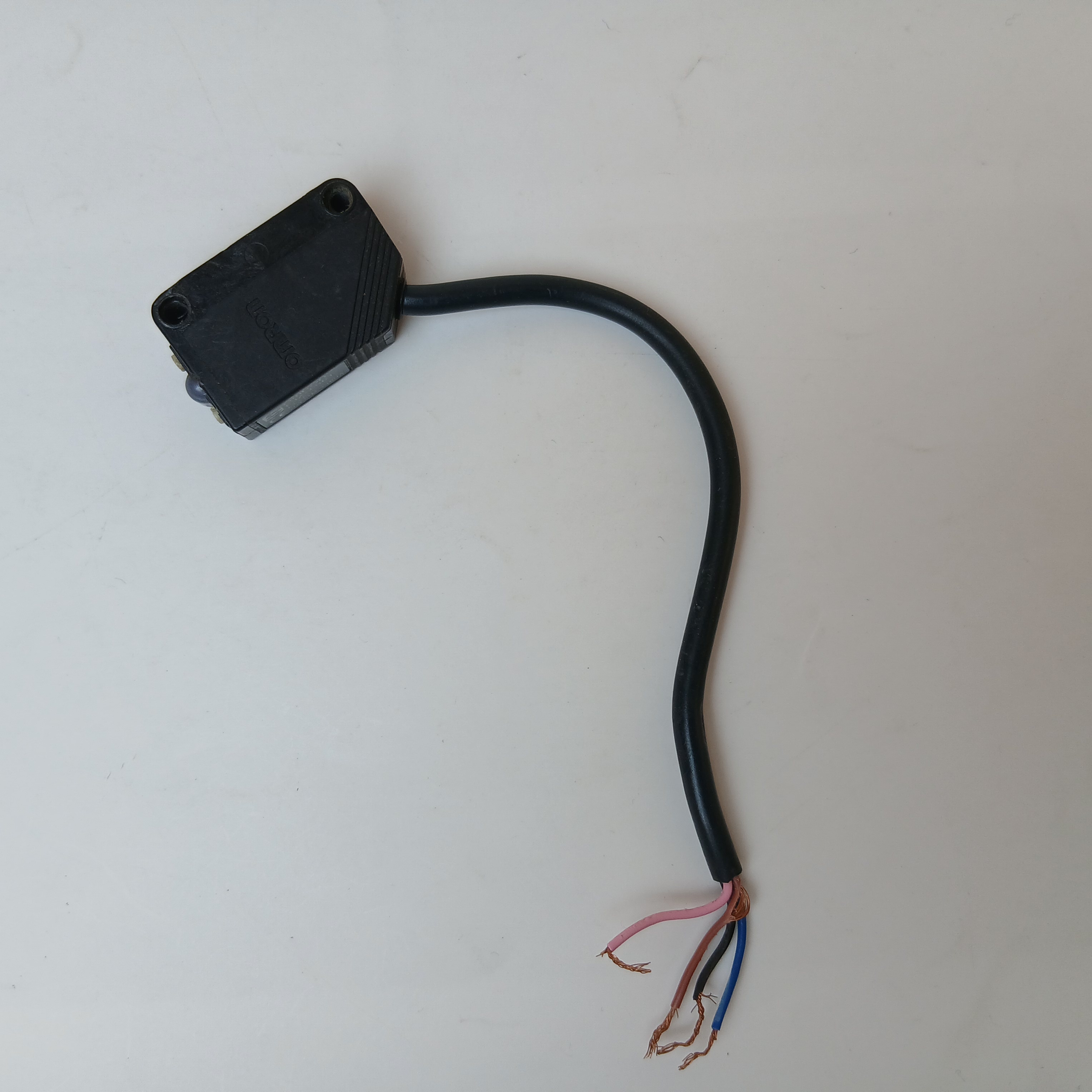

Connection method: Pre-wired models (Cable length 2 m)
Indicator: Operation indicator (orange), Stability indicator (green)
Material Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
