DB50L-AC44BC33GD20
ترانسمیتر فشار 1200mbar

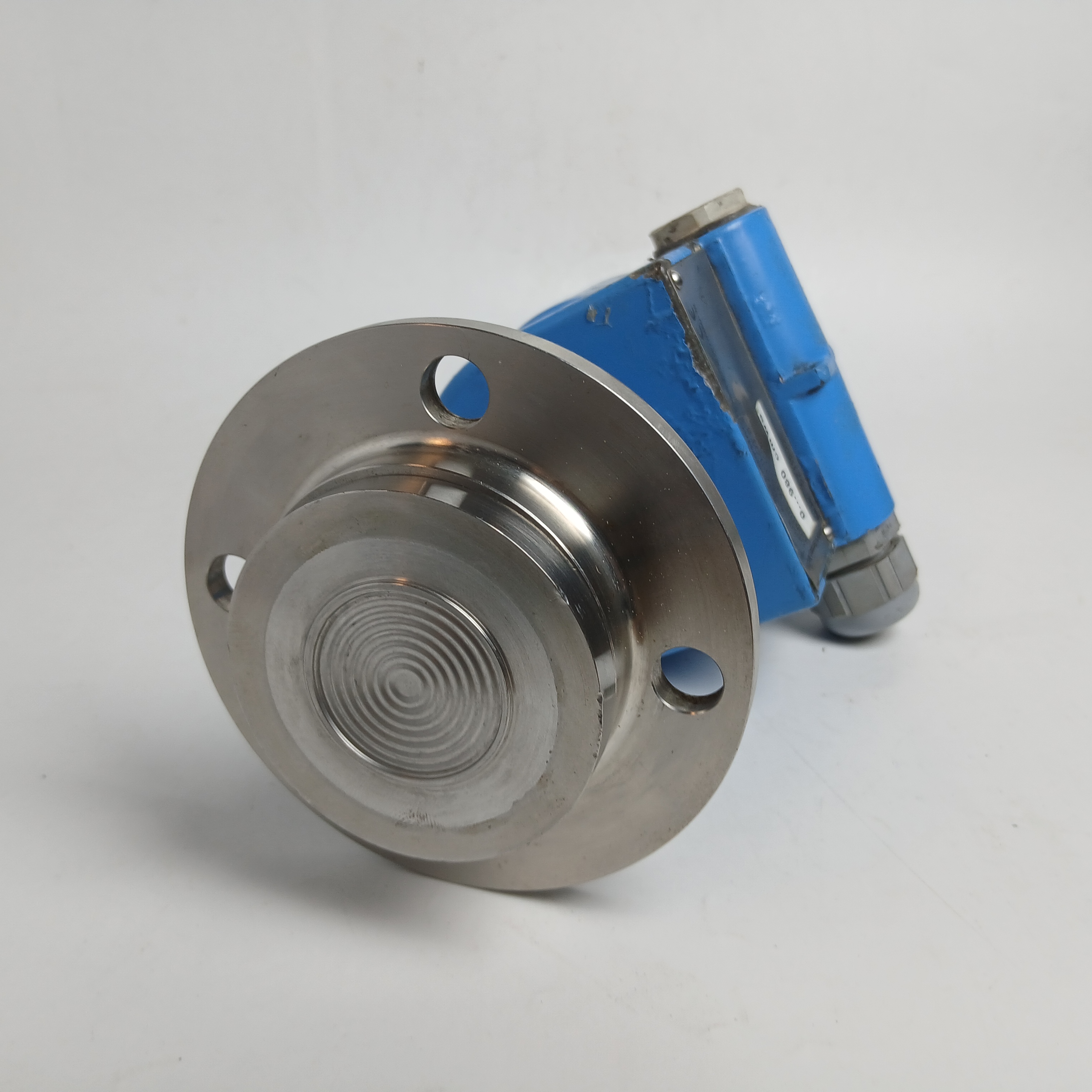

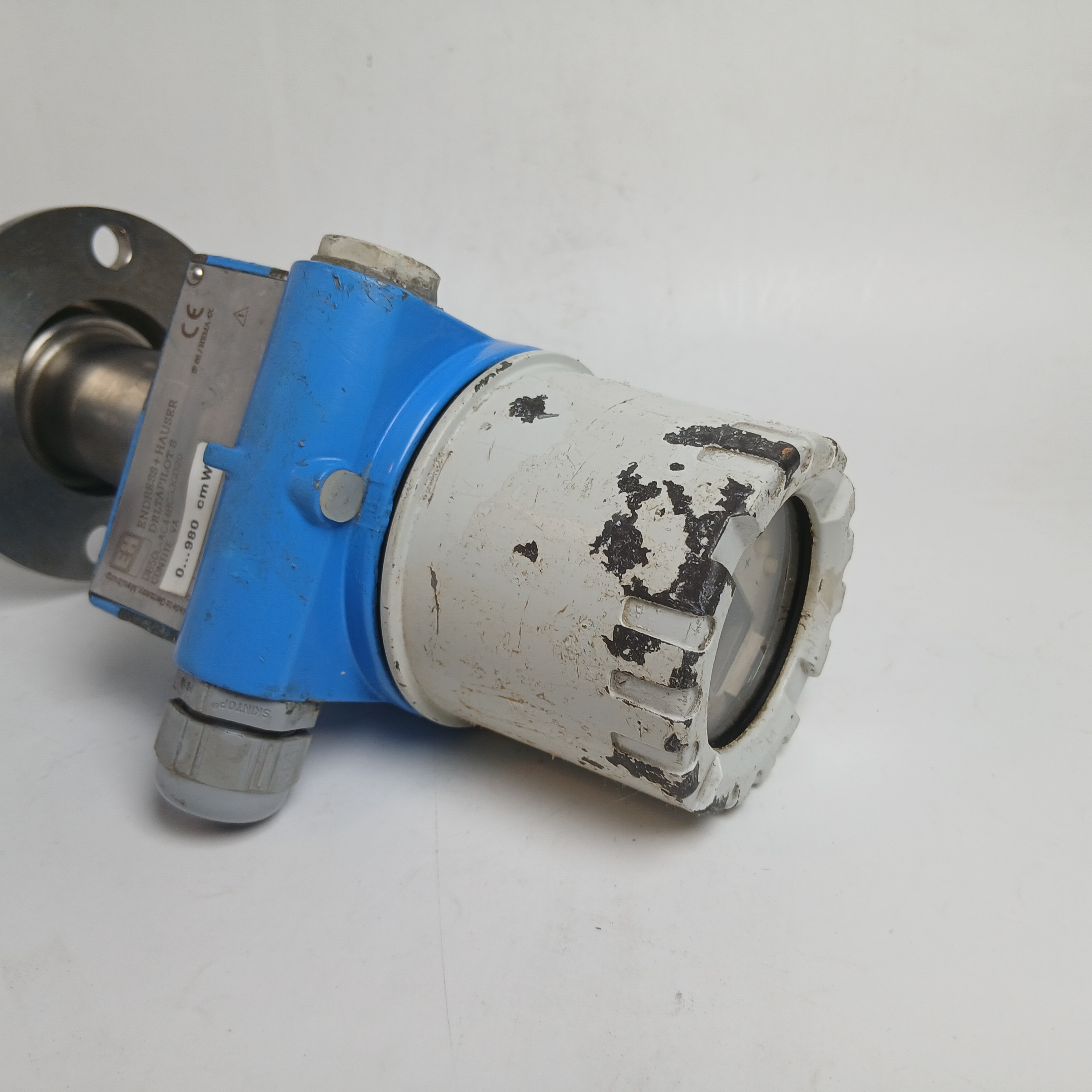

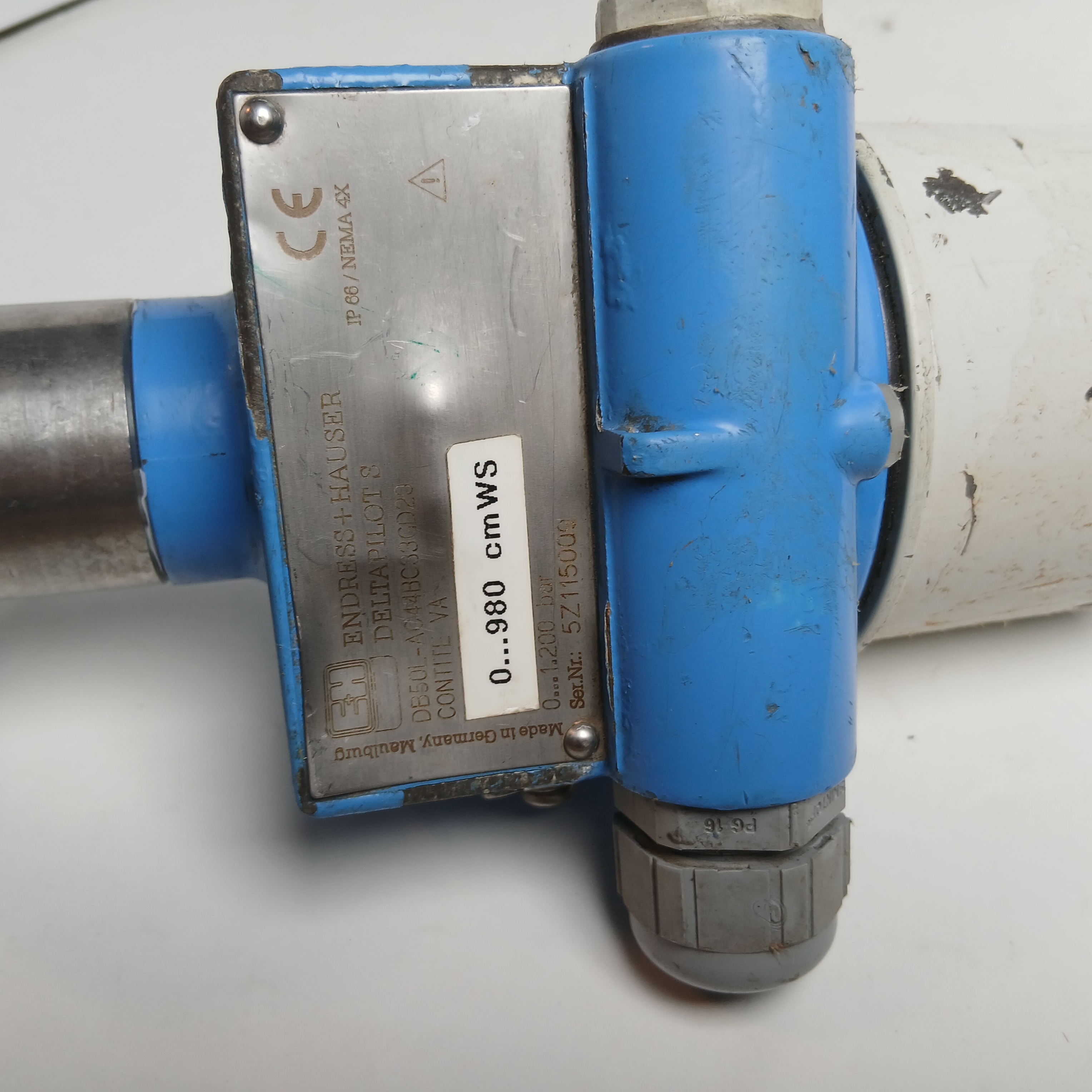

Pressure Transmitter
A = Approval: Non-hazardous area
C = Probe: Compact version
44 = Process Connection: DRD 65mm PN25, 316L, EHEDG 3A
BC = Measuring Range: 0...1200mbar/12mH2O/480inH2O
3 = Linearity; Fill fluid: < 0.1%; FDA compliant
3 = Measuring Sensor Seal: Sensor welded
G = Electronics; Output: FEB22; 4-20mA HART + display
D2 = Housing; Cable Entry: Housing Alu gland Pg16 IP66
0 = Additional Option: Basic version
پارت نامبر:
DB50L-AC44BC33GD20
برند:
Endress Hauser
وضعیت کالا:
استوک
