YVP110

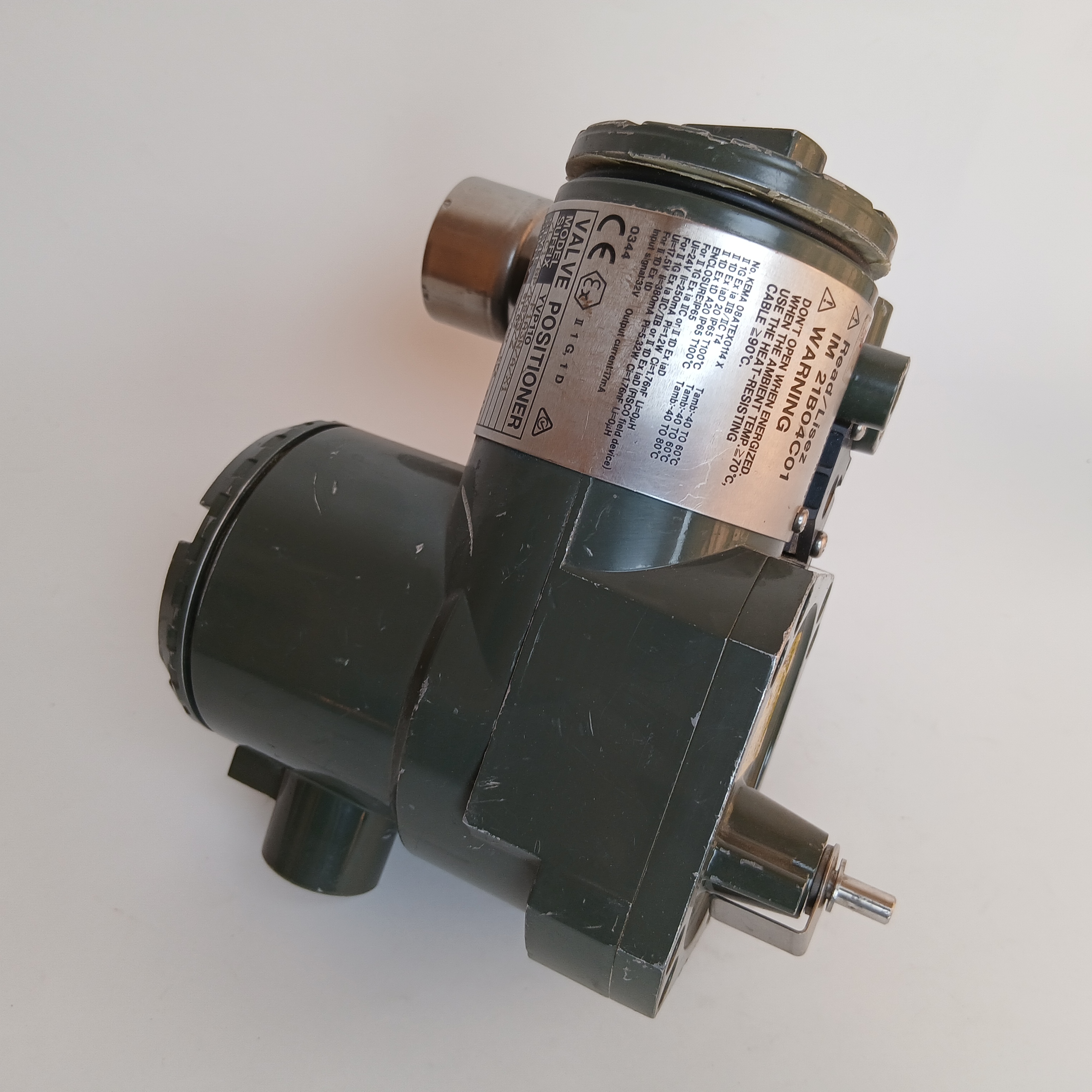

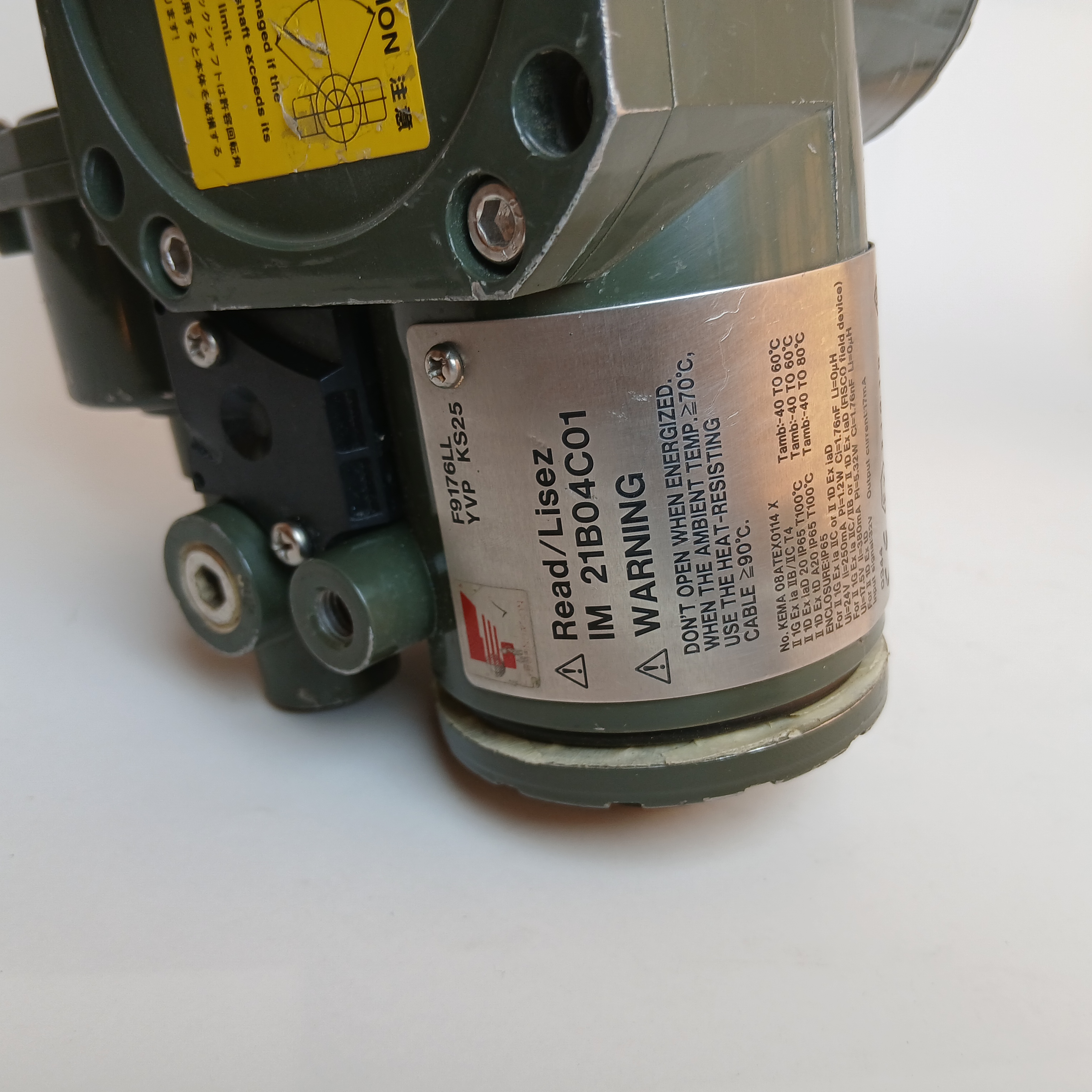

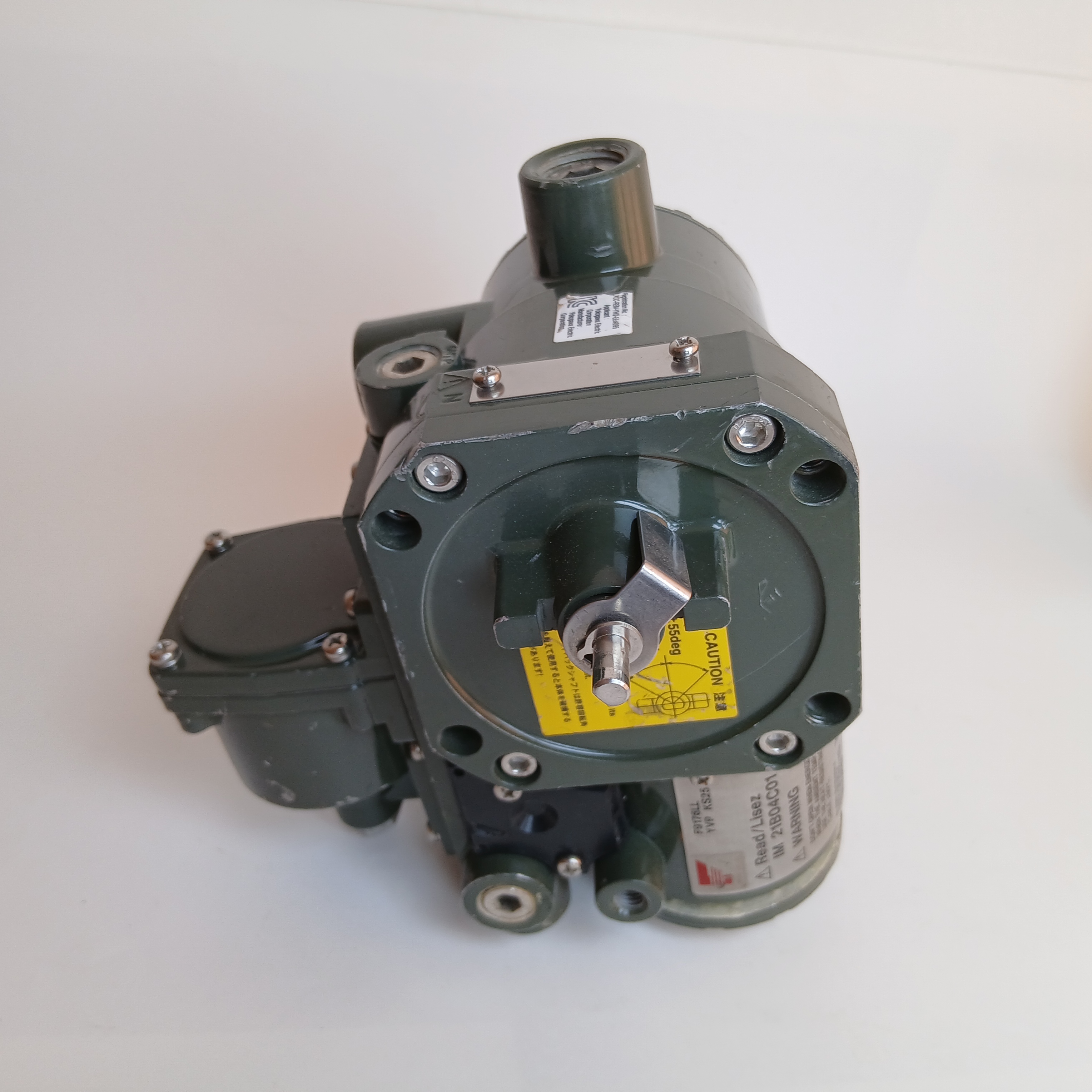

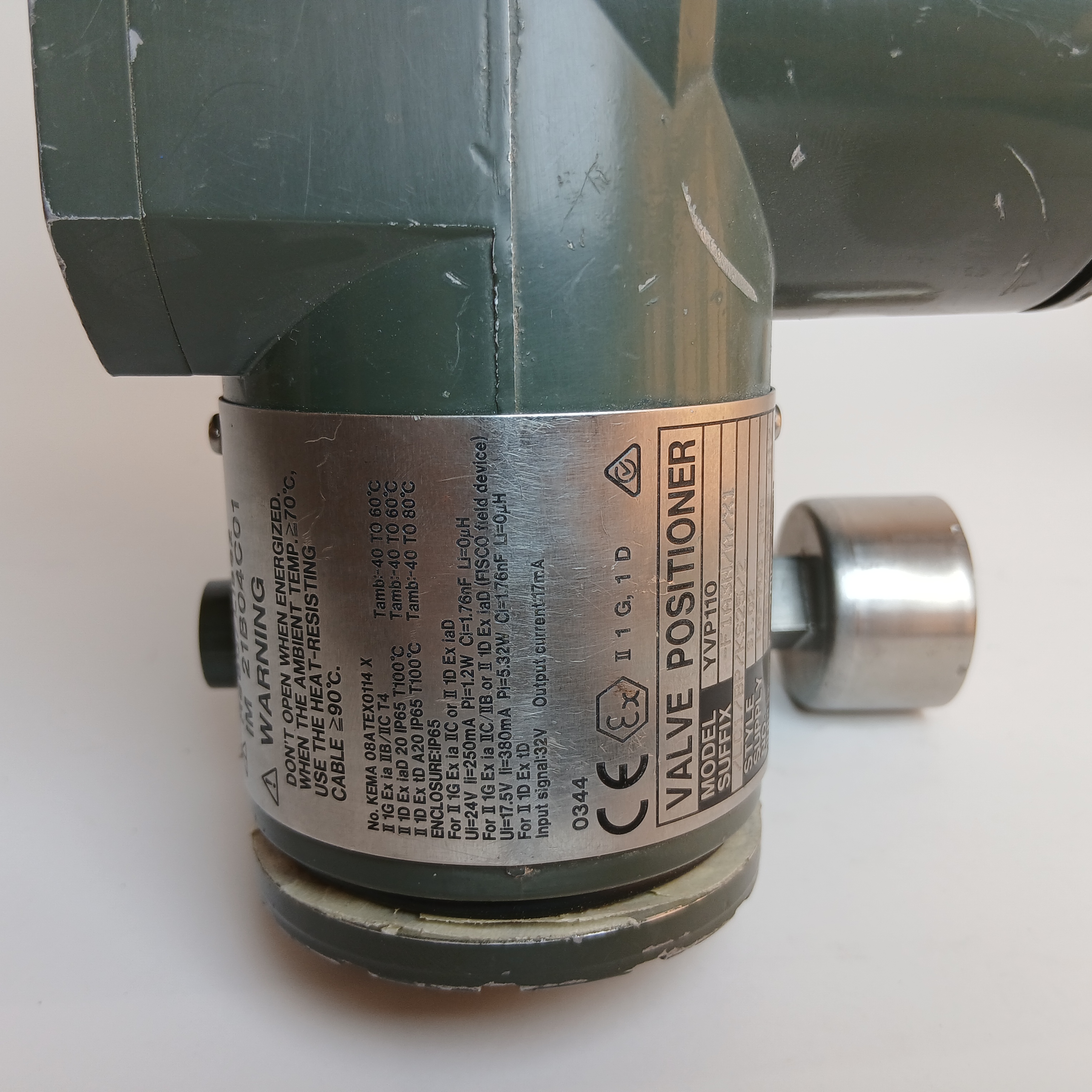

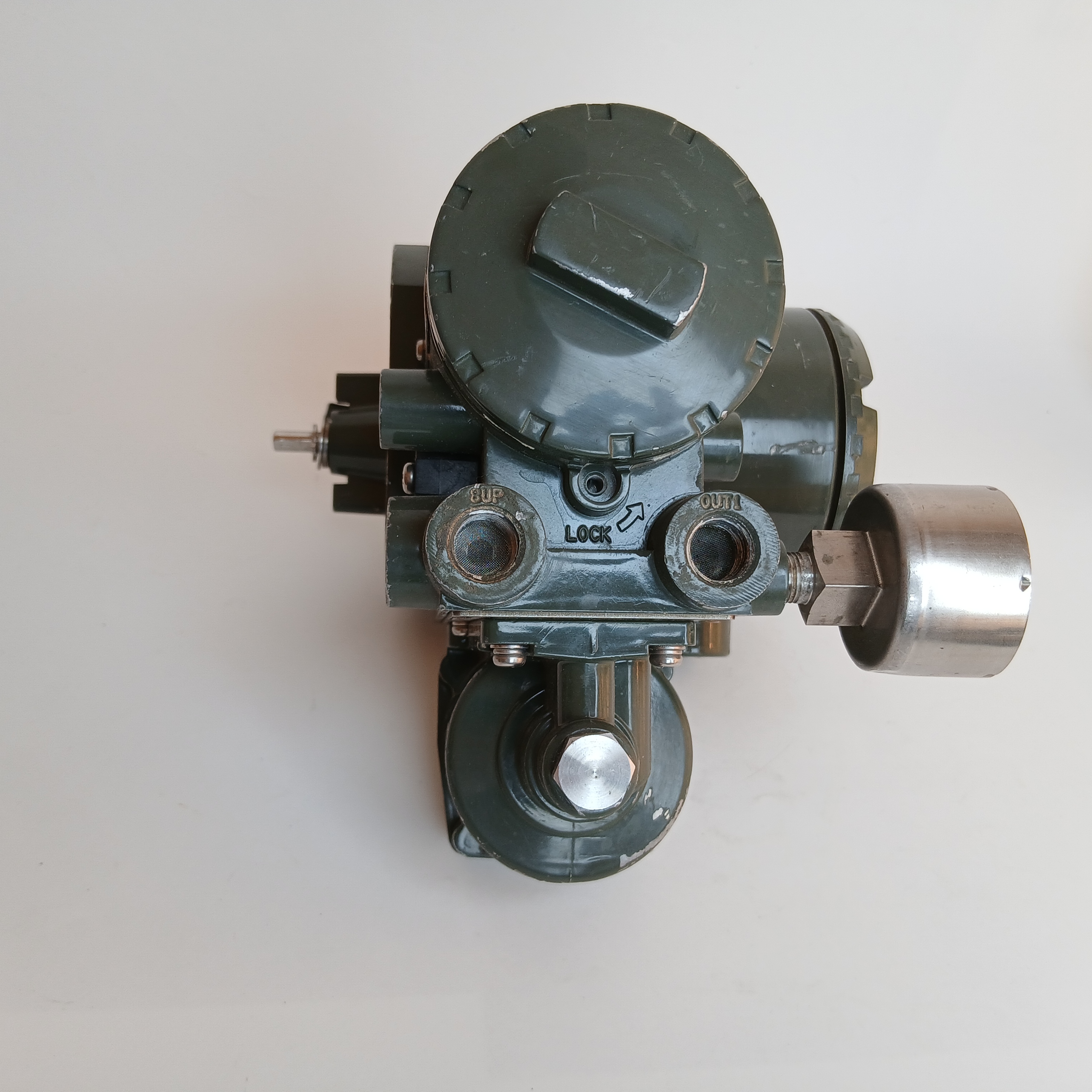

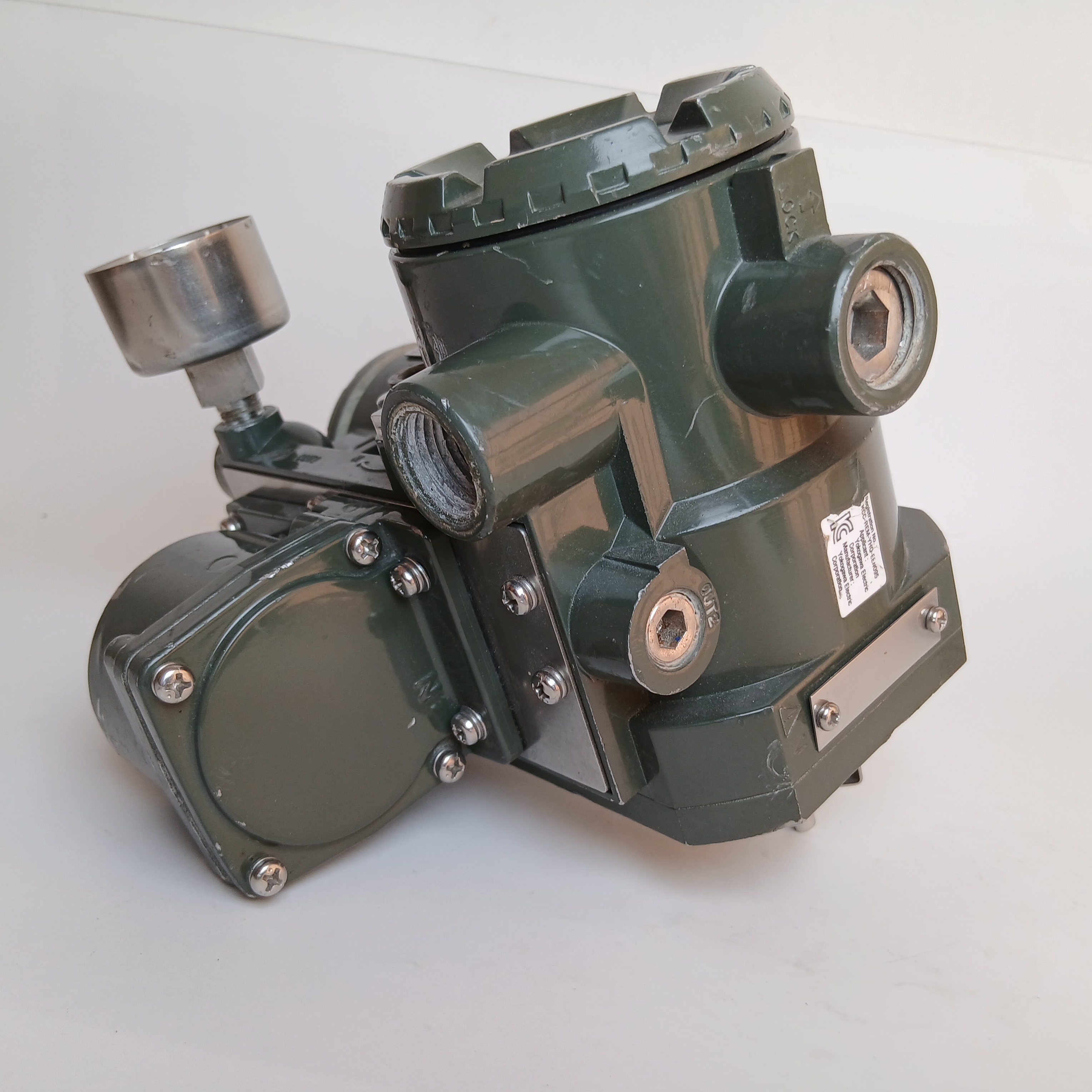

YVP110 Advanced Valve Positioner
Applicable control valve: Linear or rotary motion control valve (single acting actuator and double acting actuator) .

Linearity: ±0.5% of span (including linkages) *1
Hysteresis: 0.3% of span *1
Communication:  Digital: FOUNDATION fieldbus
Communication line: Supply voltage: 9 to 32V DC / Supply current: 17 mA (max)

Air supply pressure: 140 to 700 kPa (20 to 100 psi)
Max. air consumption: 0.32 Nm3/h (0.178 SCFM) at 140 kPa (20 psi) of air supply *1
Max. output capacity: 6.6 Nm3/h (4.1 SCFM) at 140 kPa (20 psi) of air supply *1
Ambient temperature: -40 to 85 deg C (-40 to 185 deg F) *1
