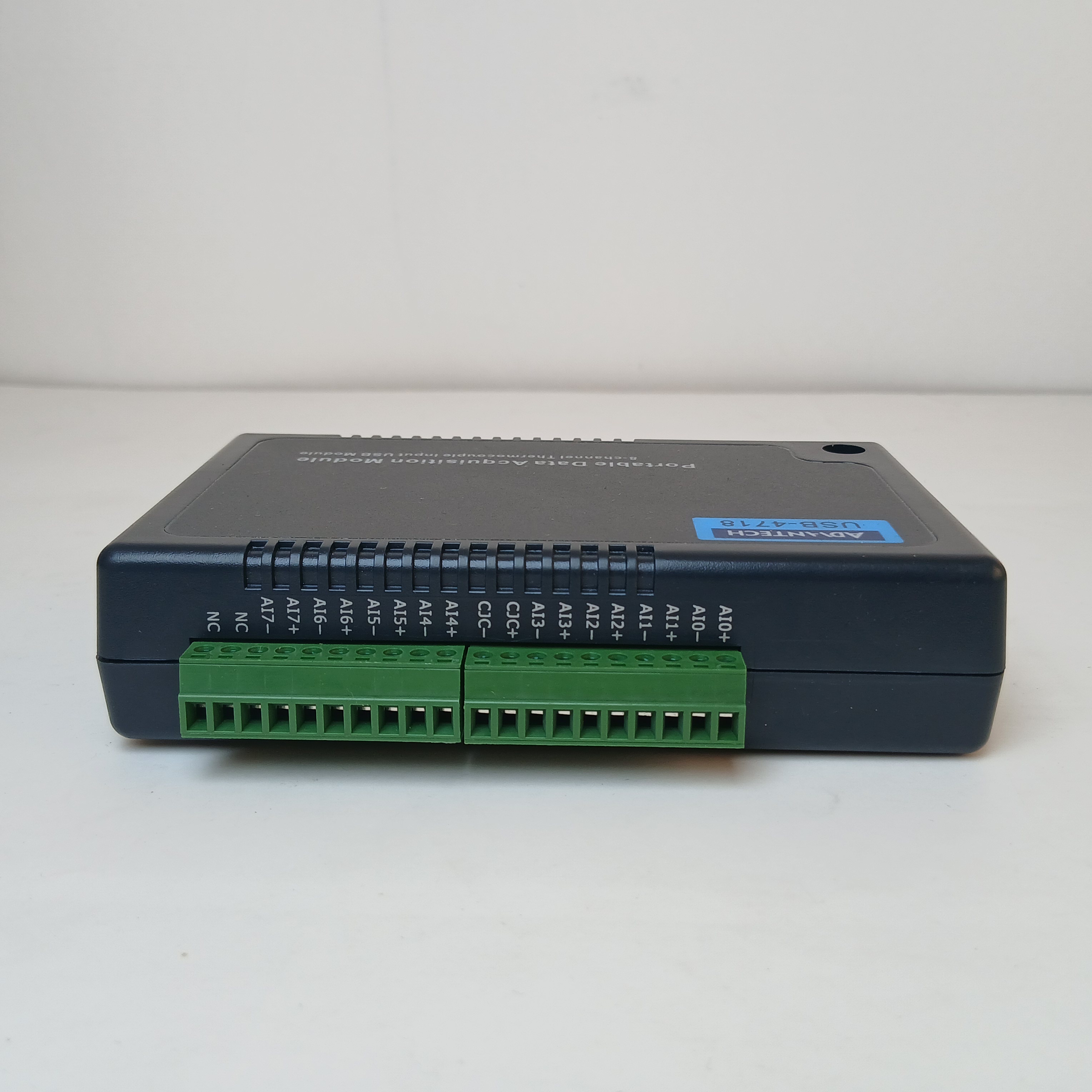

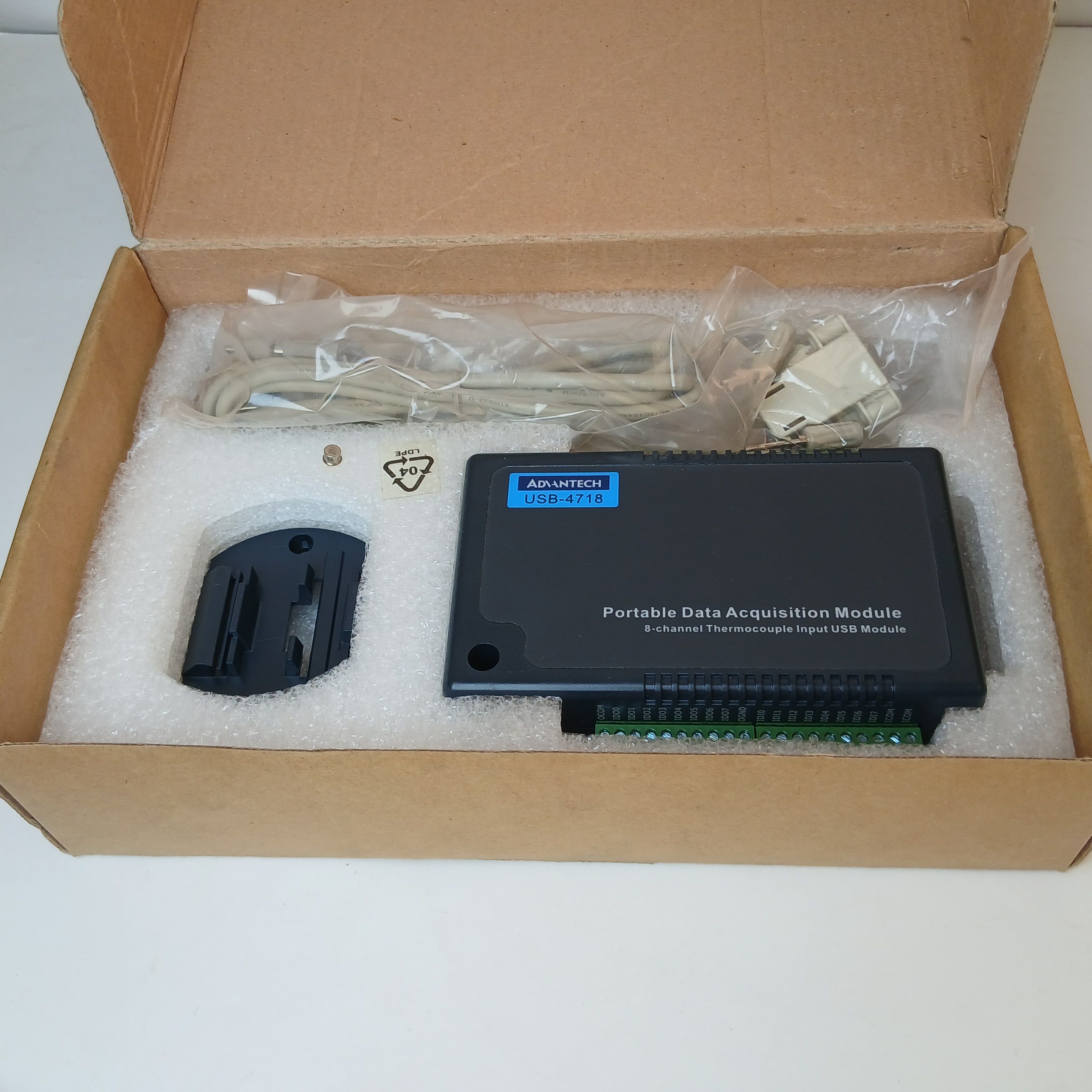

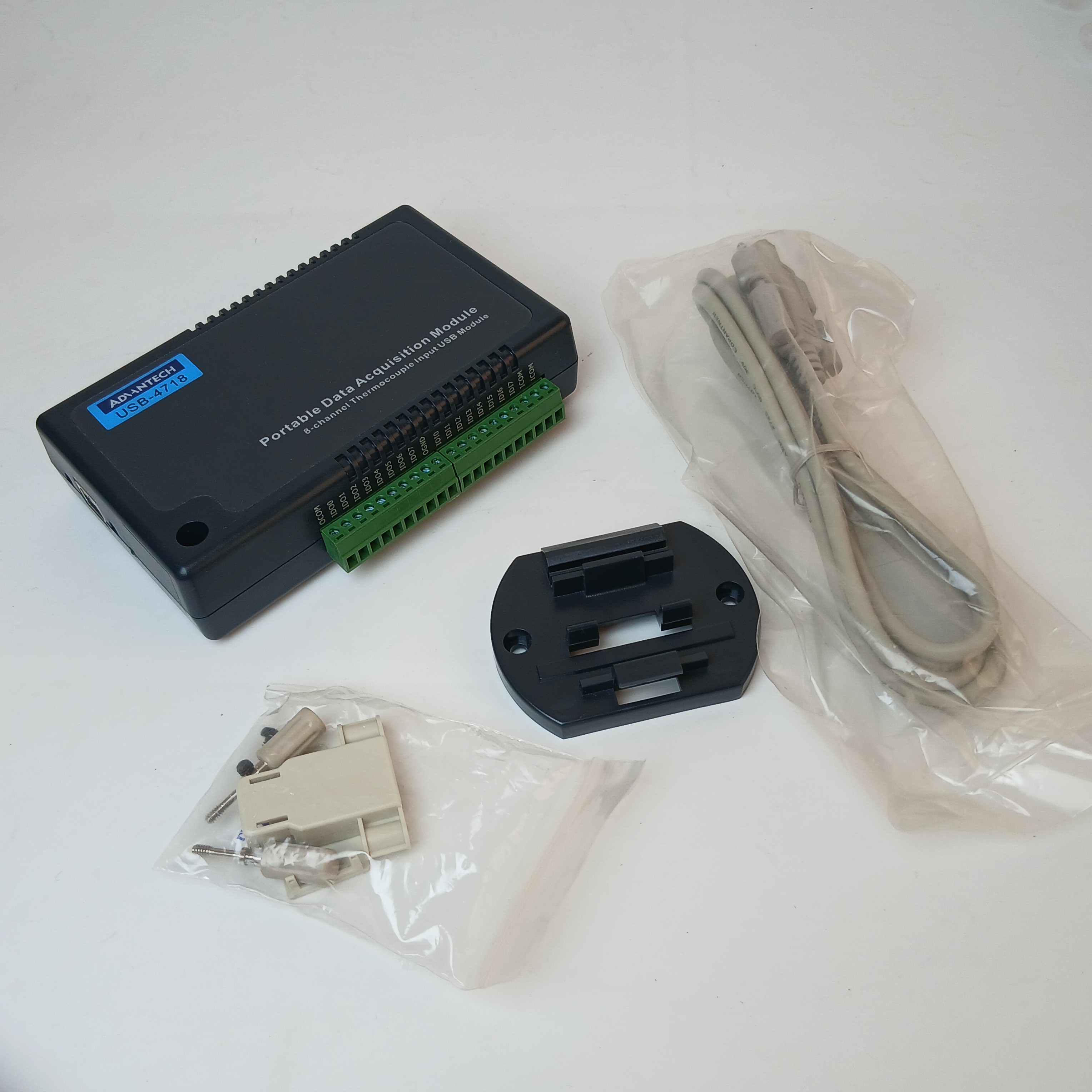

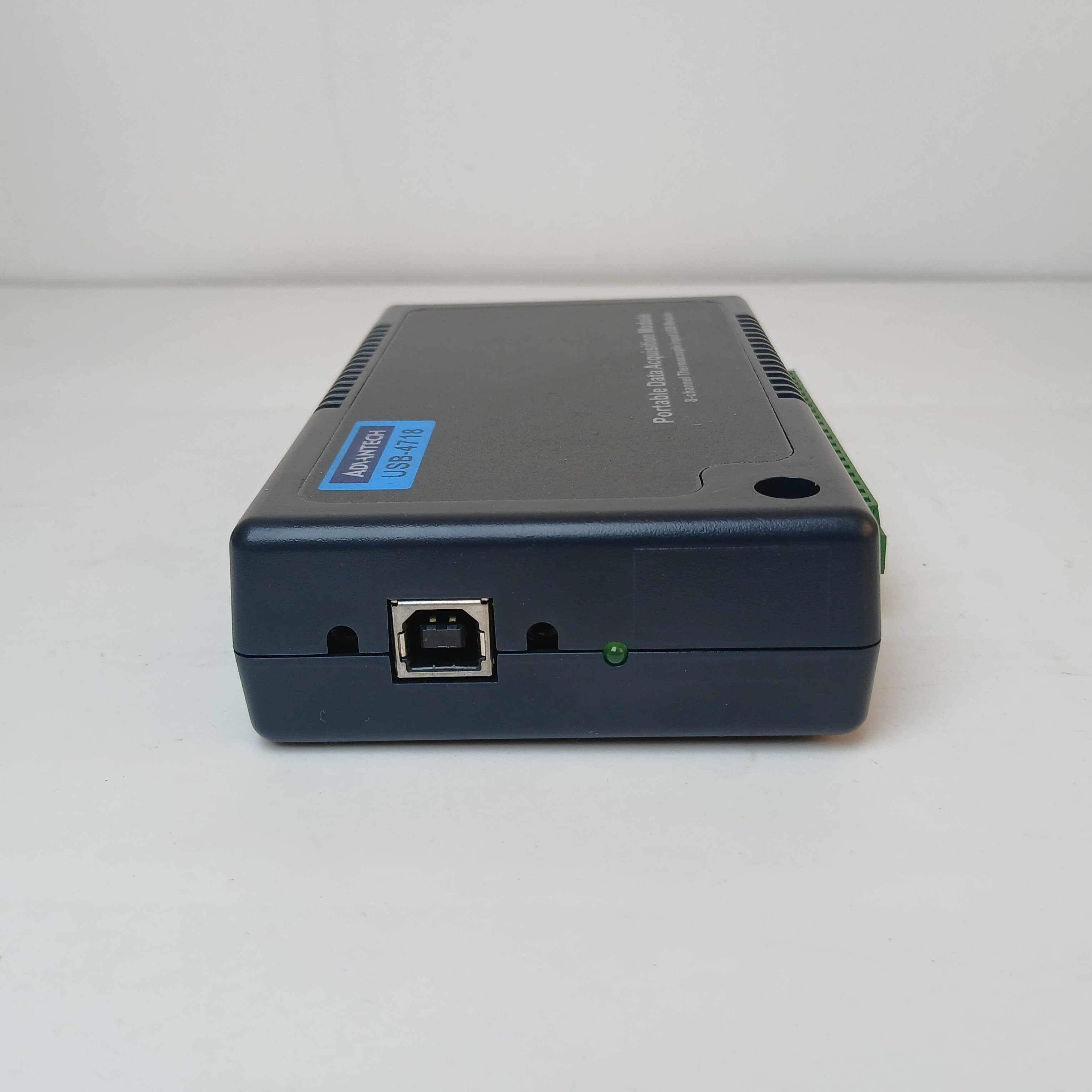

USB-4718
کارت داده برداری دما ادونتک
8-Ch Thermocouple Input USB Module with 8-Ch Isolated Digital Input
Analog Input
Accuracy ±0.1% for voltage input
Bandwidth 13.1 Hz @ 50 Hz,
15.72 Hz @ 60 Hz
Channels 8 differential
Independent Channel Configuration Yes
CMR @ 50/60 Hz 92 dB min.
Resolution 16 bits
Input Impedance 1.8 MΩ
lnput Range 0 ~ 15 mV, 0 ~ 50 mV, 0 ~ 100 mV,
0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V,
0 ~ 20 mA, 4 ~ 20 mA
lnput Types Thermocouple, mV, V, mA
Sampling Rate 10 S/s (shared for all channels)
Isolated Digital Output
Channels 8
Output Type Sink (NPN)
Isolation Protection 2,500 VDC
Output Voltage 5 ~ 30 VDC, 1.1 A max./ total
Sink Current 200 mA max./channel
Opto-Isolator Response 25 µs
General
Bus Type USB 2.0
I/O Connector Onboard screw terminal
Dimensions (Lx W x H) 132 x 80 x 32 mm (5.2" x 3.15" x 1.26")
Power Consumption 100 mA @ 5 V
Watchdog Timer 1.6 sec. (system)
Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH non-condensing
پارت نامبر:
USB-4718
برند:
Advantech
وضعیت کالا:
نو و آکبند
