رله SSR

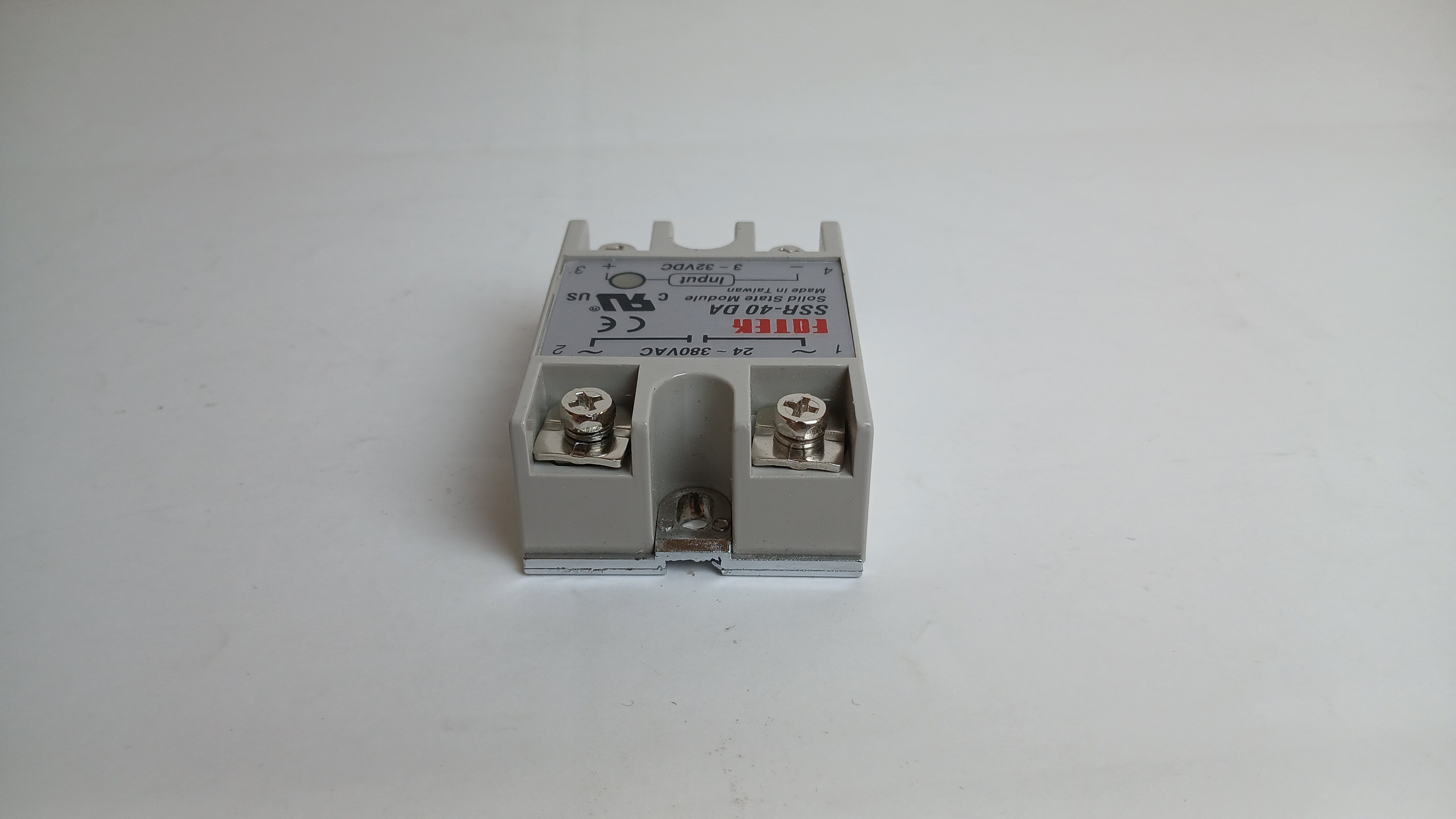

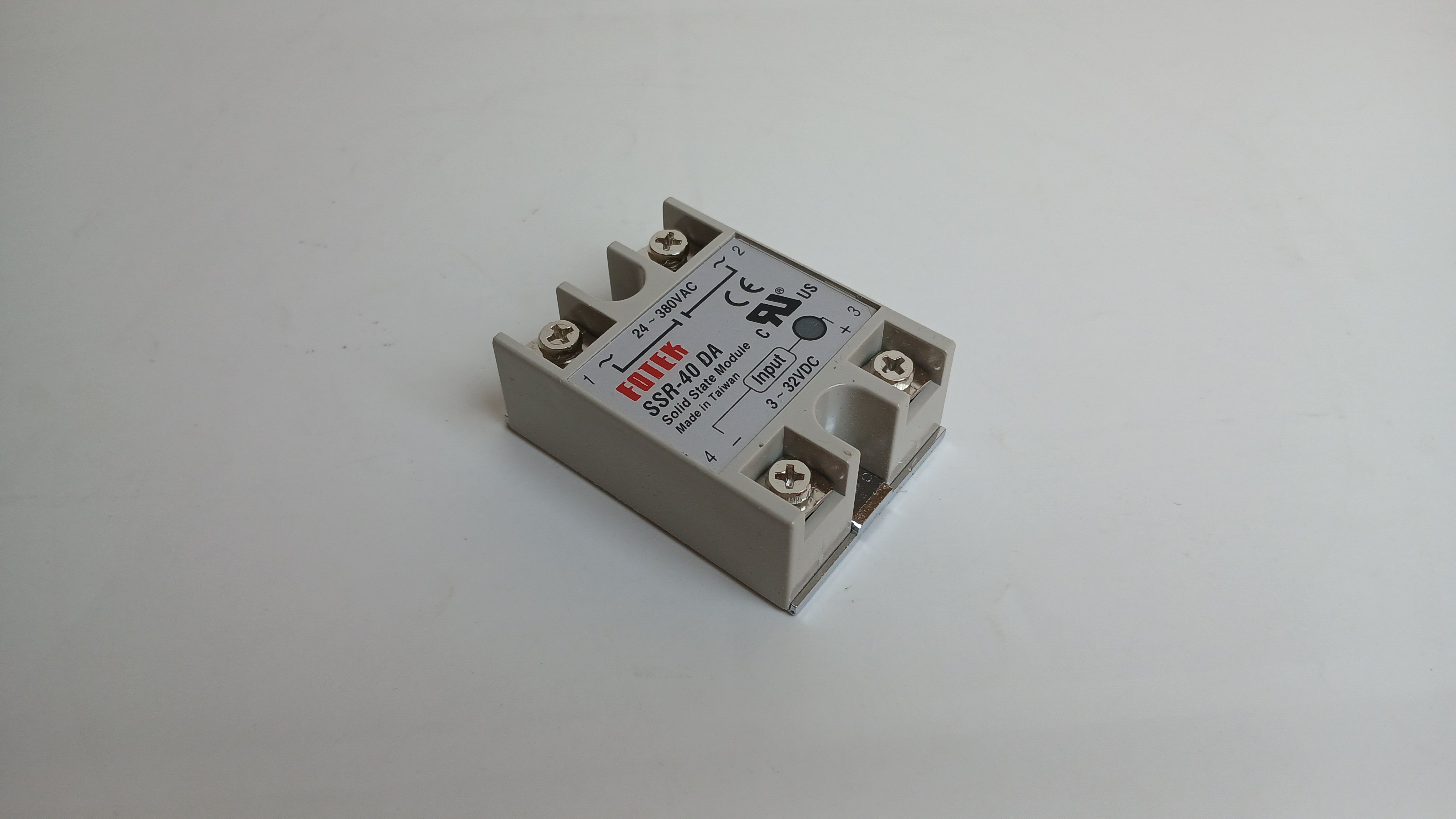

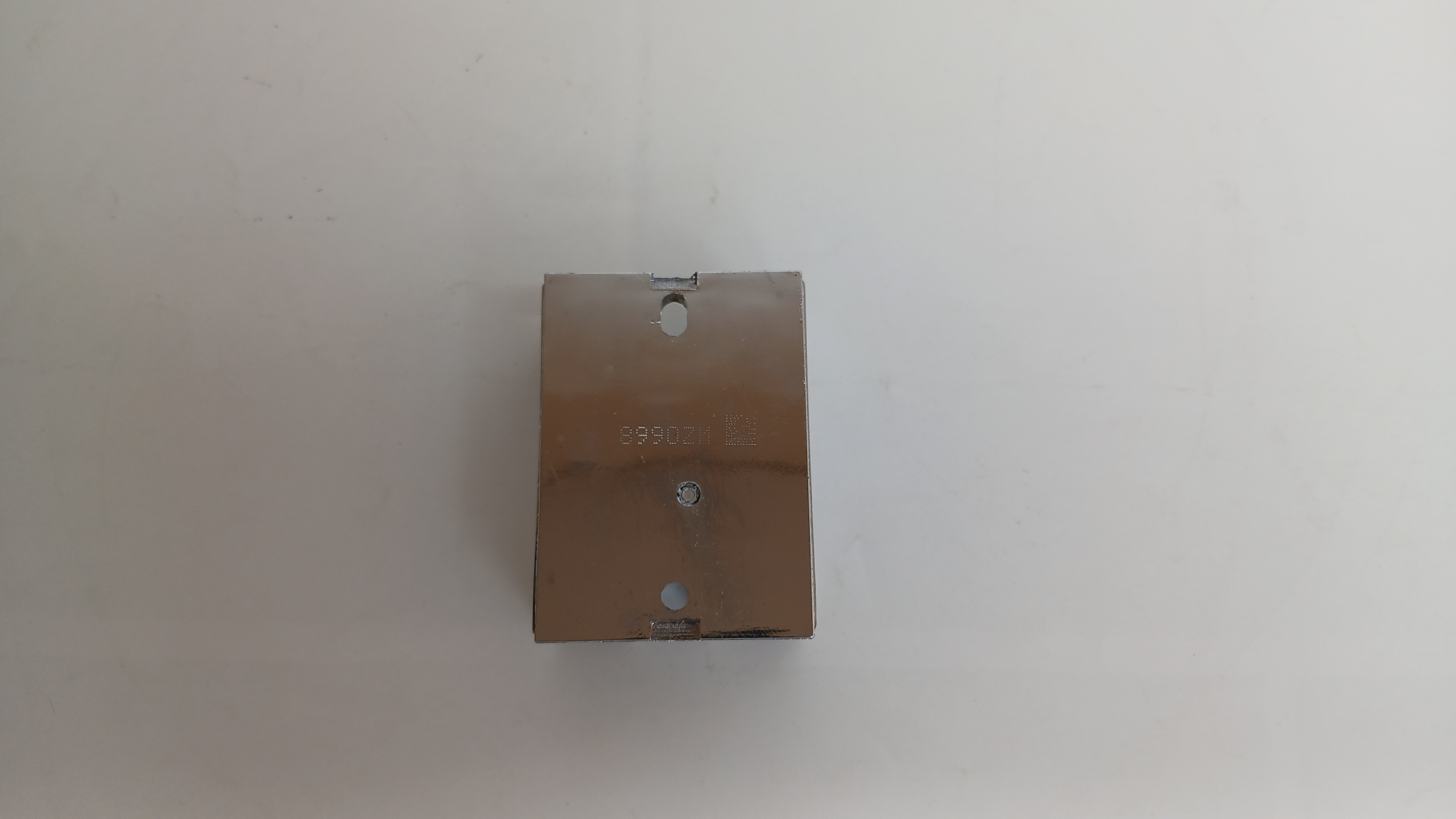

Product Name: SSR-DA Series Single Phase Solid State Module (SSR)

Product Category: Solid State Module (SSR)Model: SSR-40 DA

Input voltage  : 4 ~ 32 VDC
Turn-off voltage   : < 3.5 VDC
Trigger current  : 12.0 mA max
Control method  : Zero cross
Leakage current : 5 mA max
Response time  : 8.3 ms (at 60 Hz)
Input immunity ( : 2 KV (EN61000-4-4)
Isolation strength   : 4 KV rms (EN60950/VDE0805)
Insulation resistance  : 100 MΩ / 500 VDC (EN60950/VDE0805)
Housing material : ABS (UL-94V0)
Operating environment: -40°C ~ +80°C ; 35 ~ 85% RH
Peak voltage : 1200 VAC min
Output voltage : 24 ~ 380 VAC
