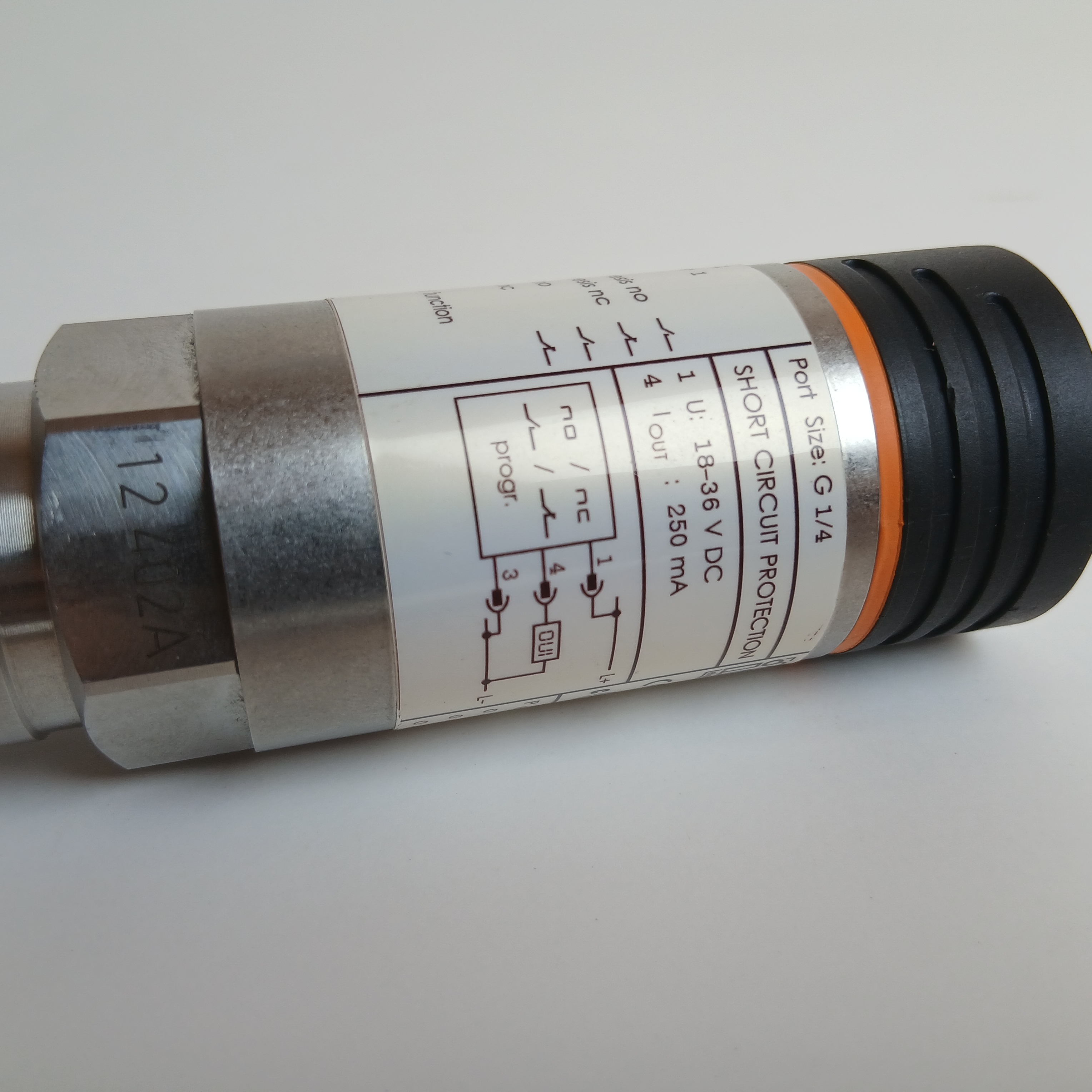

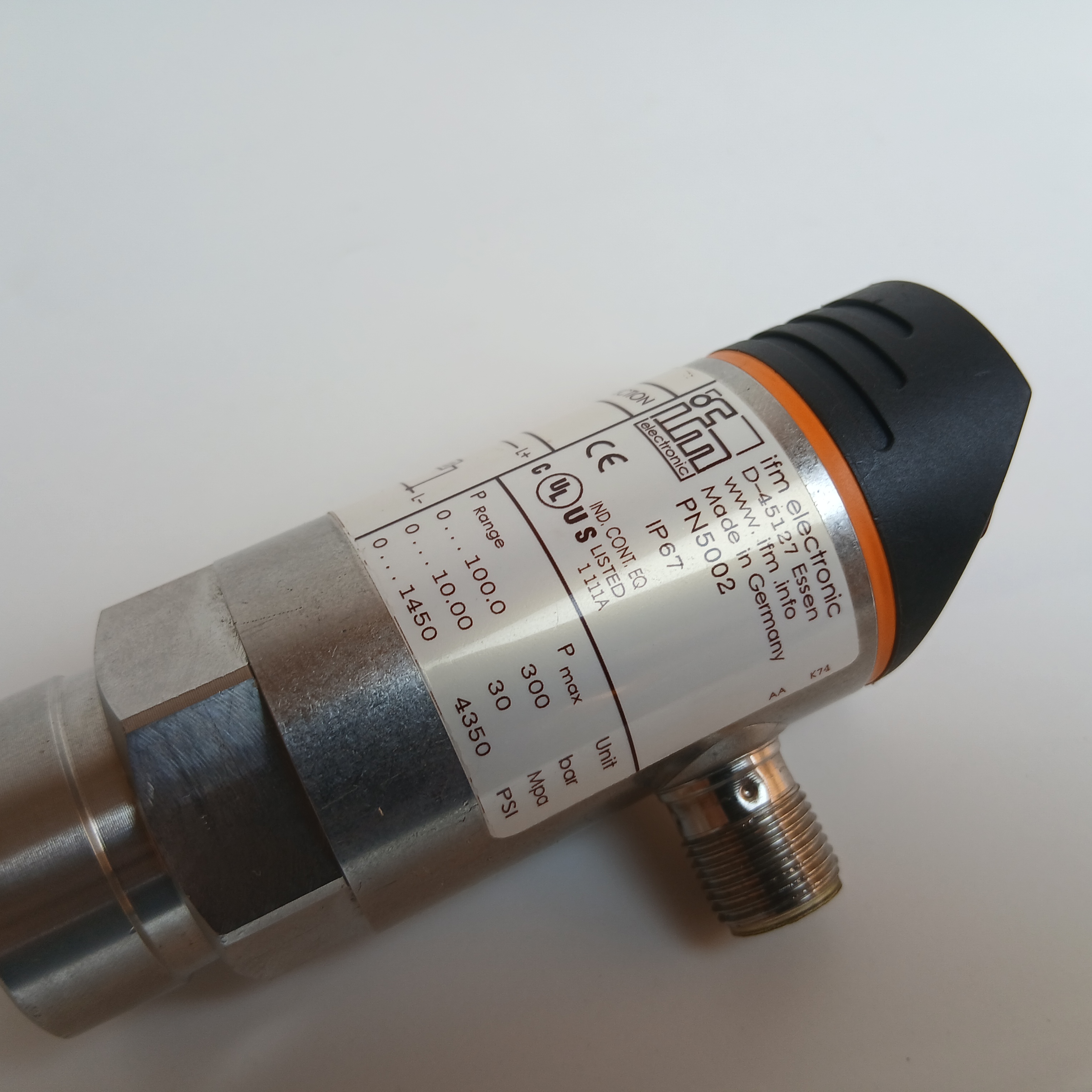

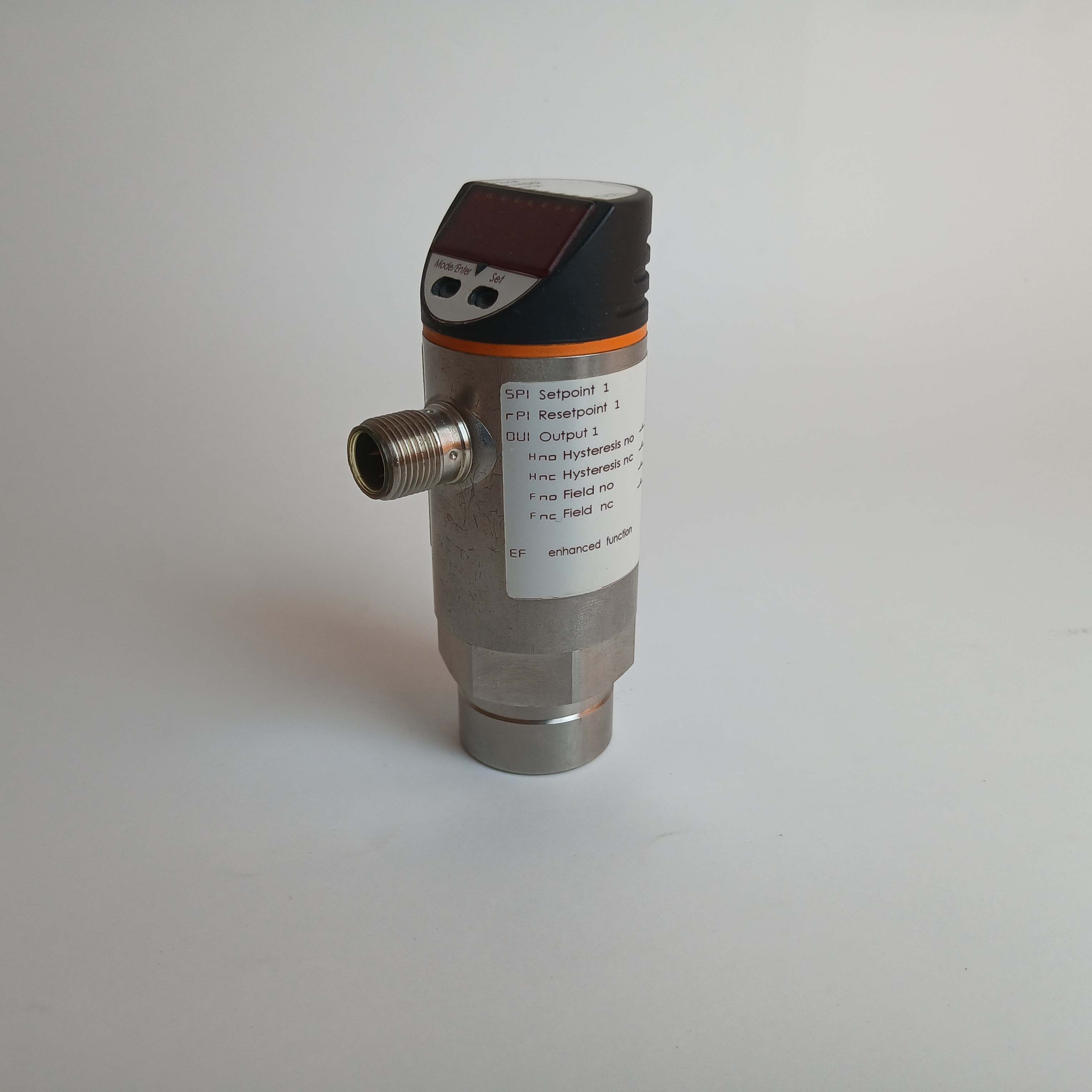

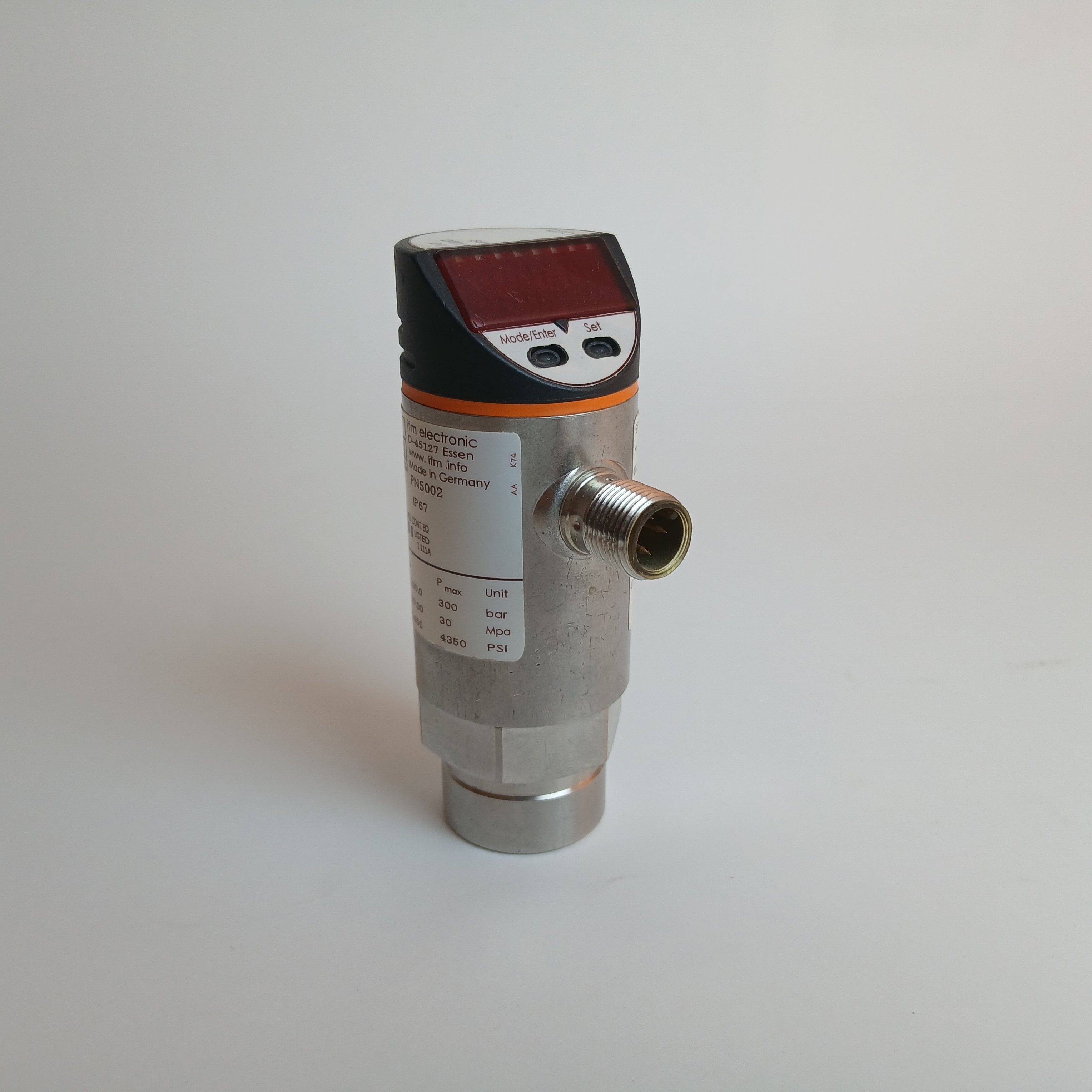

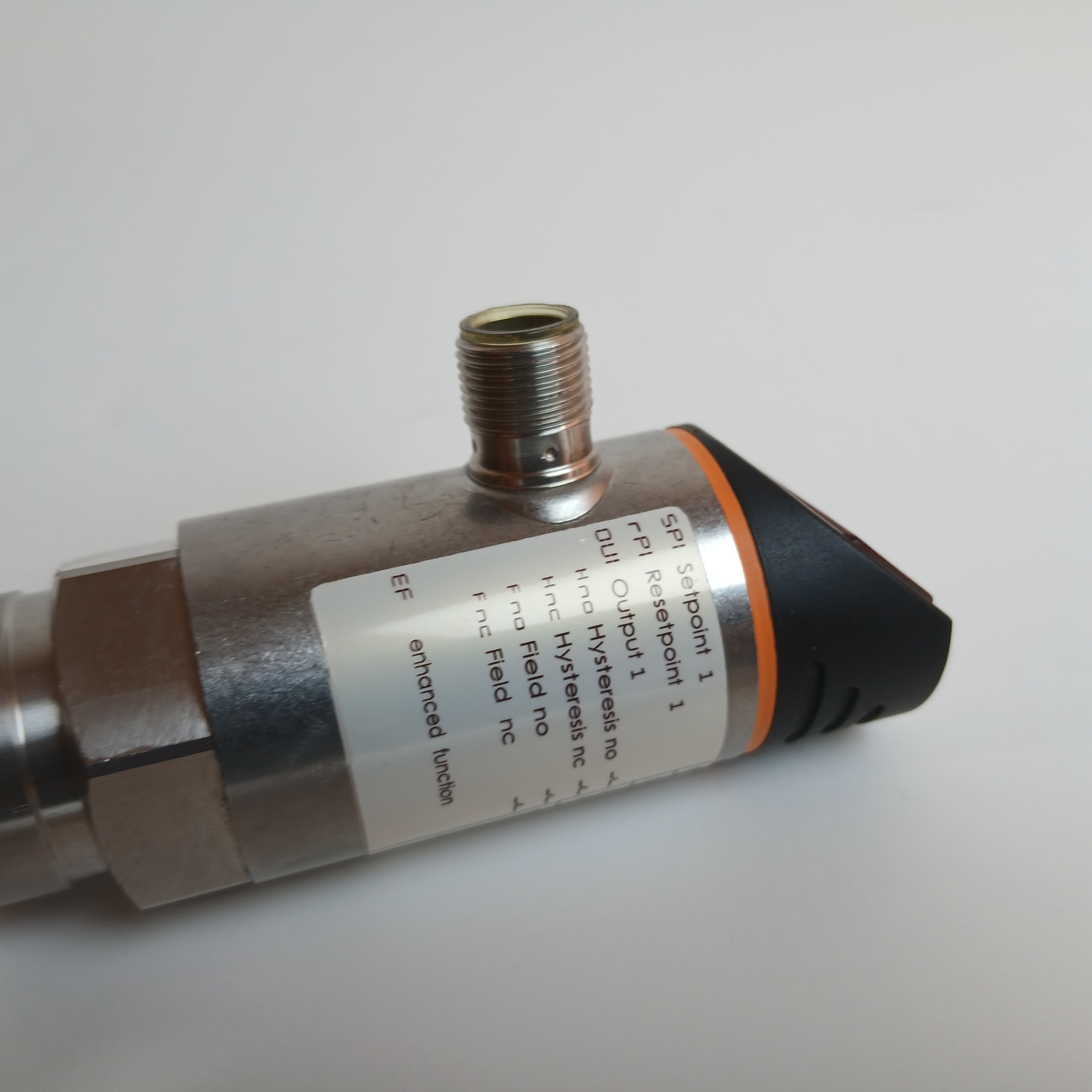

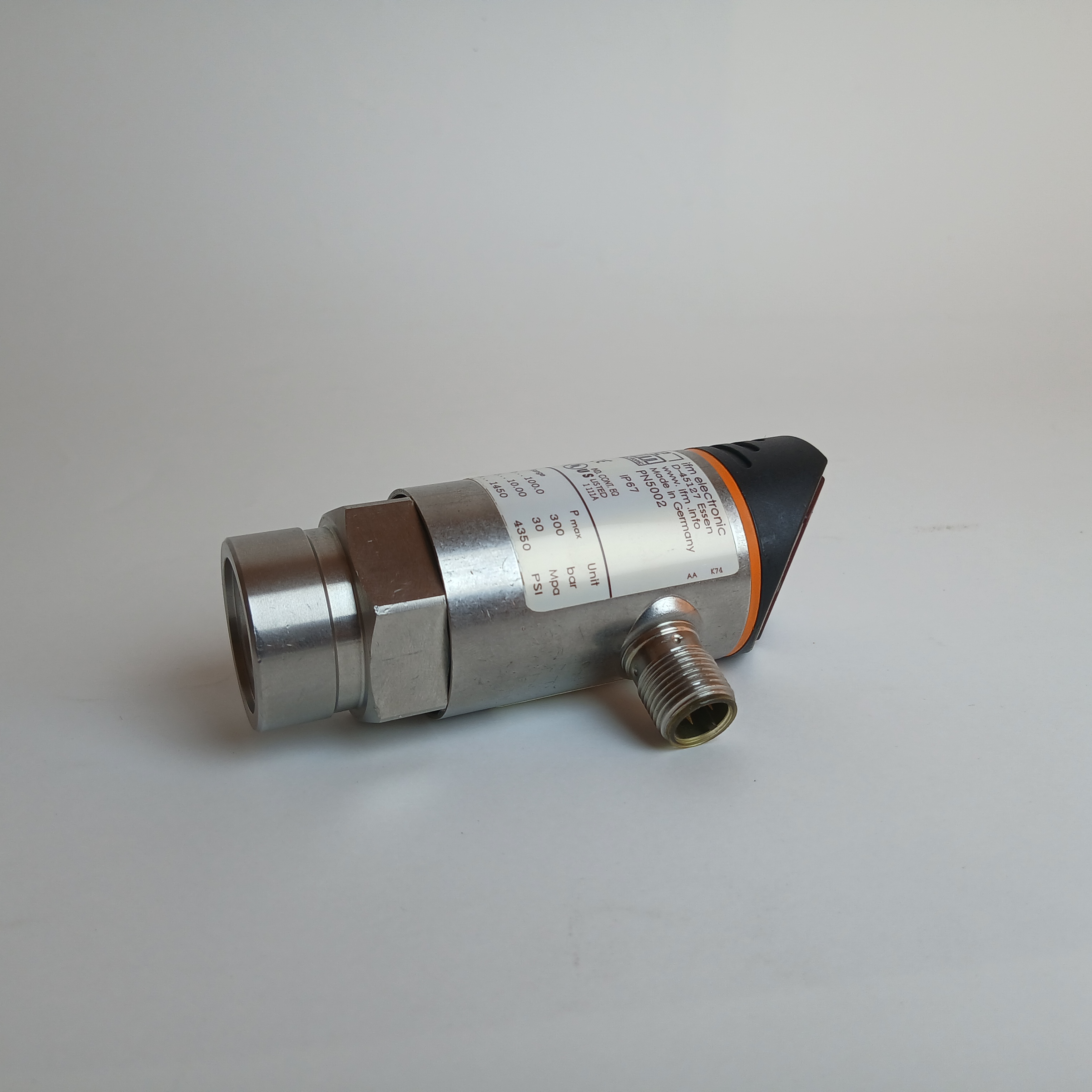

PN5002

Pressure sensor with display

With long-term stability thanks to high overload protection

Lifespan of more than 100 million pressure cycles

Clearly visible 4-digit LED display

Country-specific pressure units selectable

Memory function for the highest measured system pressure

Number of inputs and outputs Number of digital outputs: 1

Measuring range : 0...100 bar0...1450 psi0...10 MPa

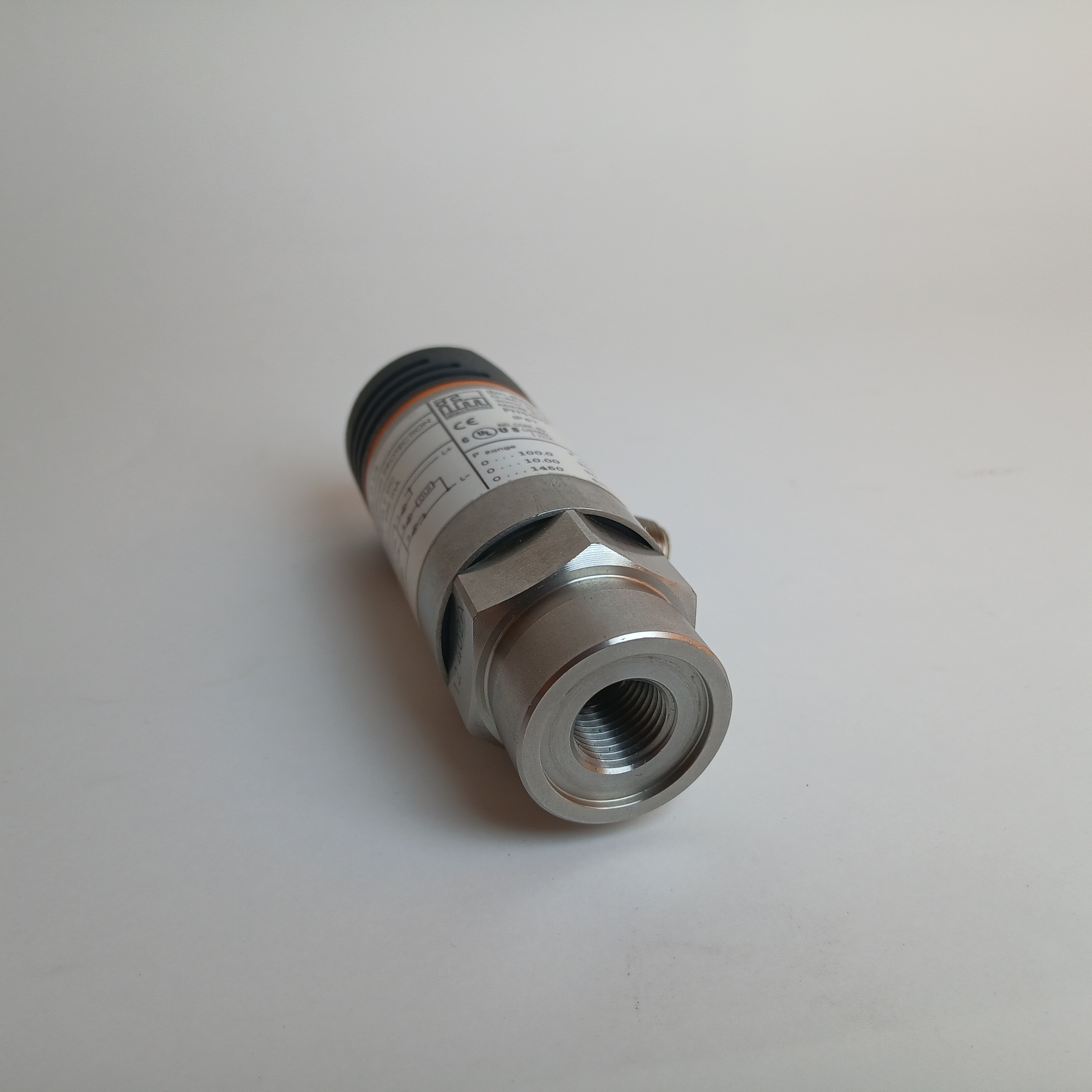

Process connection:  threaded connection G 1/4 internal thread

Special feature : Gold-plated contacts

Conditionally suitable for use in gases at pressures > 25 bar only on request

Medium temperature : [°C]-25...80

Min. burst pressure : 650 bar9400 psi65 MPa

Pressure rating : 300 bar4350 psi30 MPa

Type of pressure : relative pressure

Operating voltage : [V]18...36 DC; (to SELV/PELV)

Current consumption : [mA]< 50

Min. insulation resistance[MΩ]100; (500 V DC)

Protection : classIII

Reverse polarity protection:  yes

Overvoltage protection :  yes; (< 40 V)

Power-on delay time : [s]0.3

Integrated watchdog : yes

Number of digital outputs: 1

Total number of outputs: 1

Output signals : witching signal

Electrical design : PNP

Output function:  normally open / normally closed; (parameterisable)

Max. voltage drop switching output:  DC[V]2

Permanent current rating of switching output : DC[mA]250

Switching frequency : DC[Hz]< 170
