PMP731-I43Z9H1T1T2
ترانسمیتر فشار 40Mpa

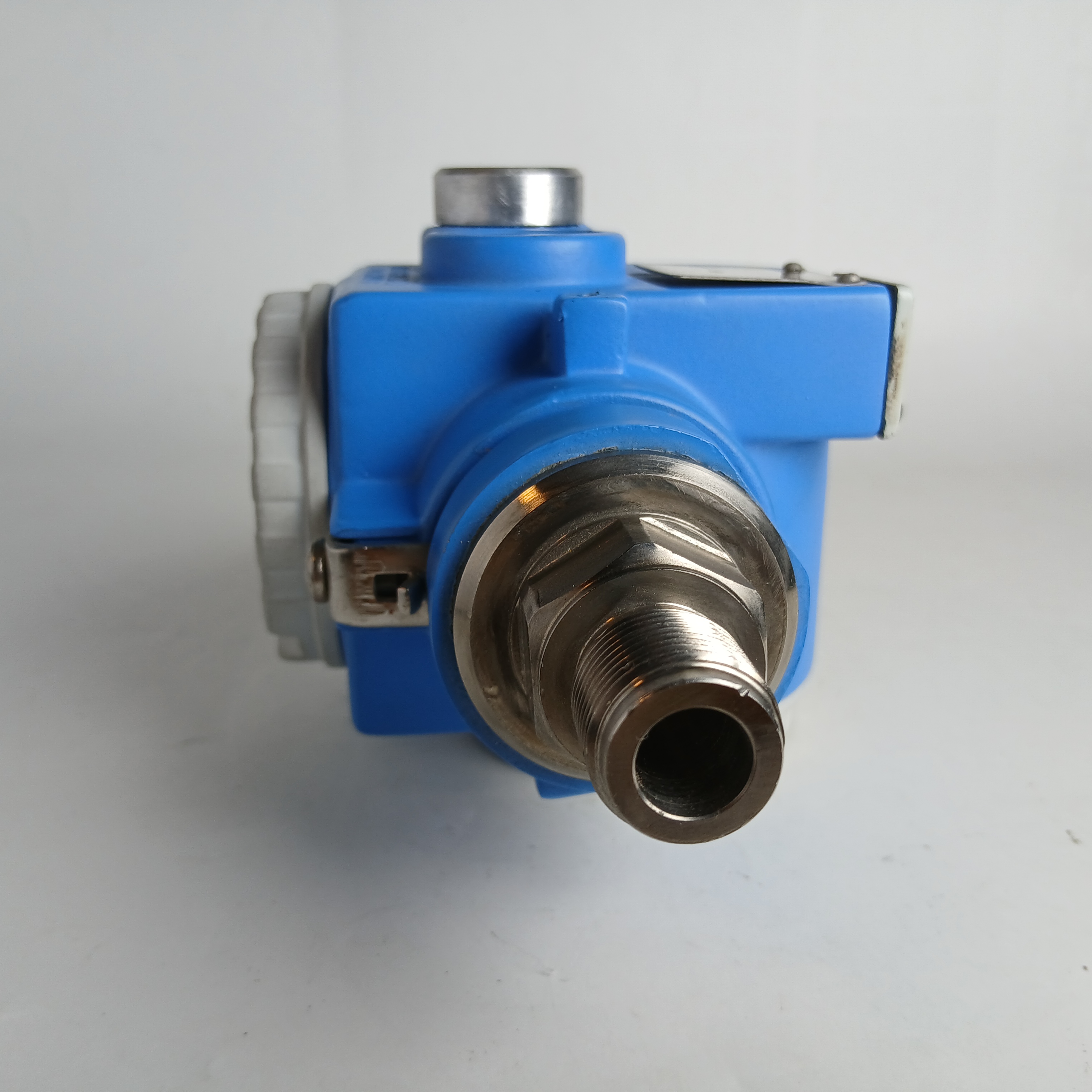

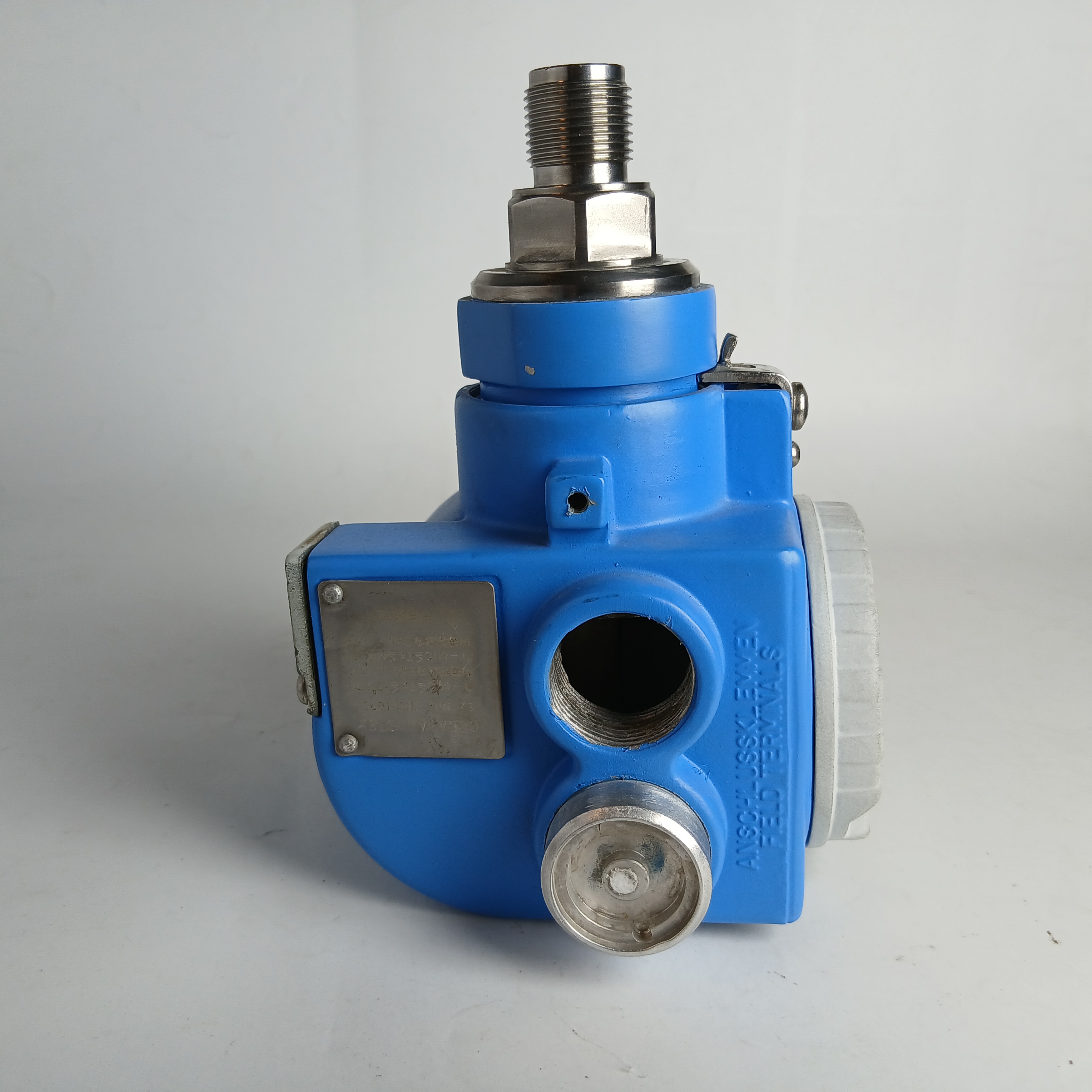

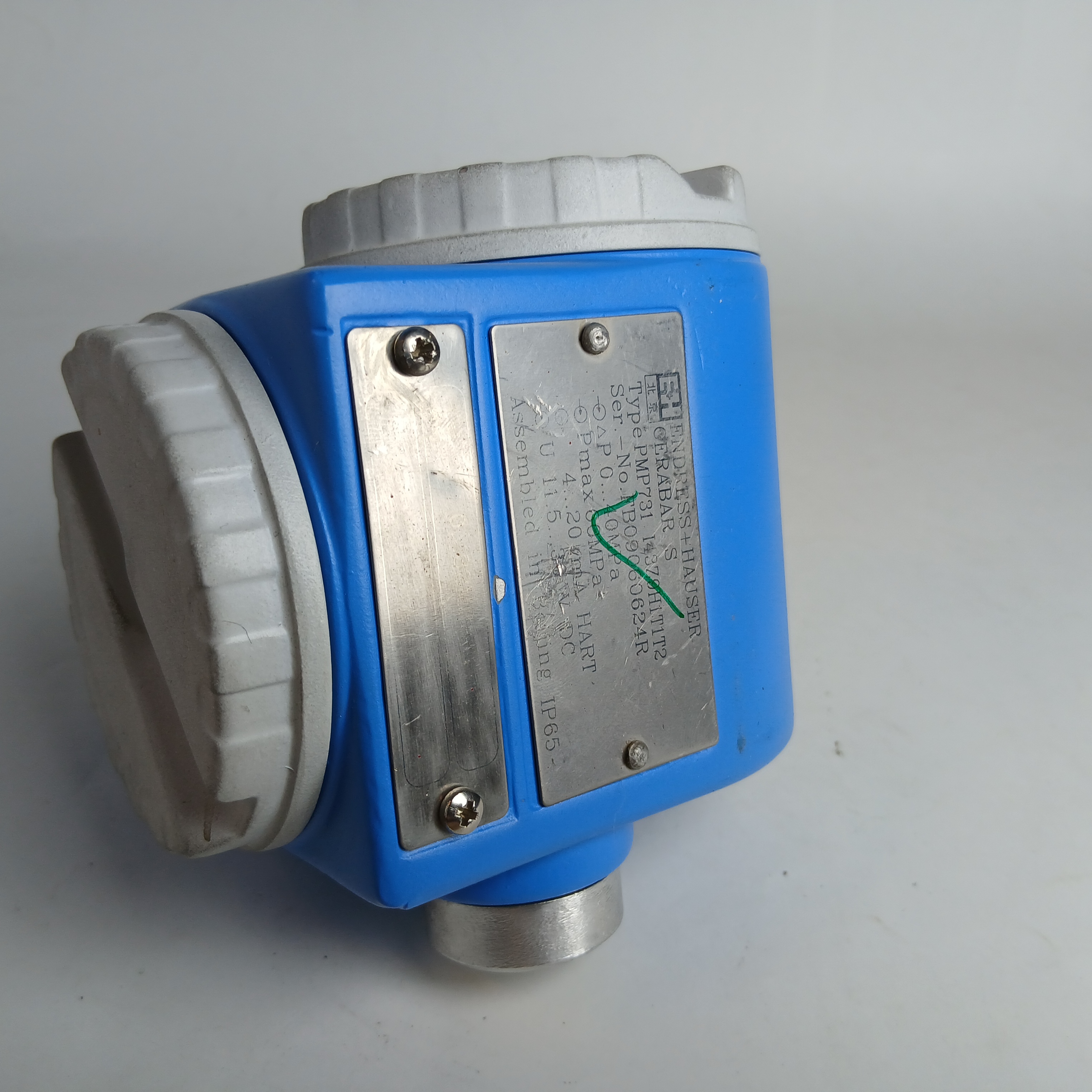

Pressure Transmitter
I=Approval: ATEX II 2G EEx d IIC T5
4= Housing; Cable Entry: Alu; gland M20 (EEx d > thread M20)
3Z=Sensor Range; Sensor Overload Limit: 0...400bar/40MPa/6000psi; gauge; 600bar/60MPa/9000psi
9=Calibration; Unit: Adjusted; see additional spec.
H=Output: 4...20mA, HART-protocol
1=Additional Option: Basic version
2= Marking acc. to customerspecification : Presetting Busadr.:see additional spec.
پارت نامبر:
PMP731-I43Z9H1T1T2
برند:
Endress Hauser
وضعیت کالا:
استفاده نشده
