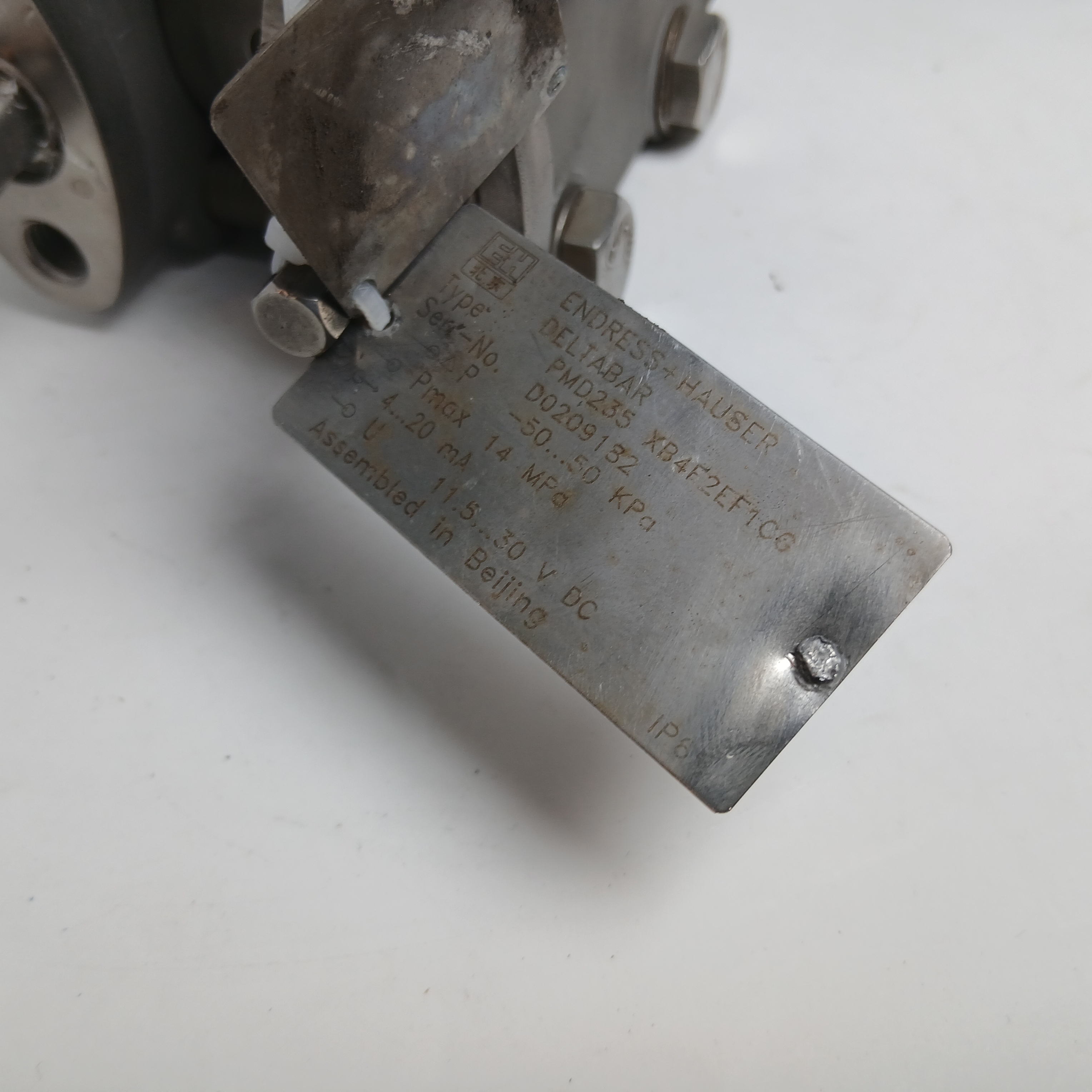

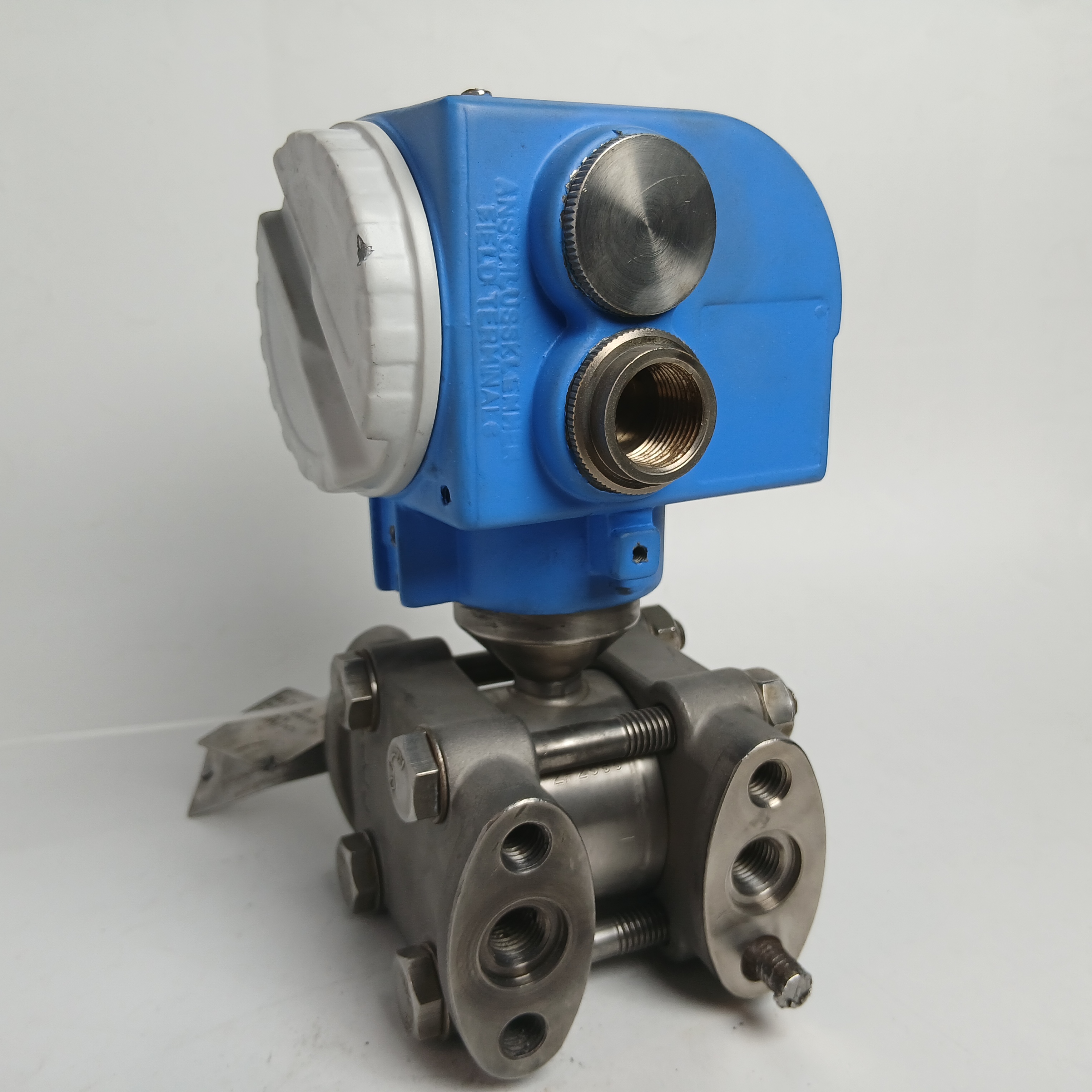

PMD235-XB4F2EF1CG
ترانسمیتر اختلاف فشار 50kpa
Differential pressure transmitter
Range: -50 ...50KPa
Output : 4-20mA
Pmax: 14 MPa
Supply : 11.5-30 VDC
Output; Housing :B=4-20mA HART; Alu, top LCD
Nominal Range; Diaphragm Material; PN:4F=500mbar/50kPa/7.5psi; 316L; 160bar/ 16MPa/2400psi
Calibration; Unit:2=Nominal range; kPa/MPa
Seal:1=FKM Viton
Process Connection: C=NPT1/4-18 DIN19213, 316L
پارت نامبر:
PMD235-XB4F2EF1CG
برند:
Endress Hauser
وضعیت کالا:
نو شده
