PMD235-KB488ED1C
ترانسمیتر فشار خلا 100mbar

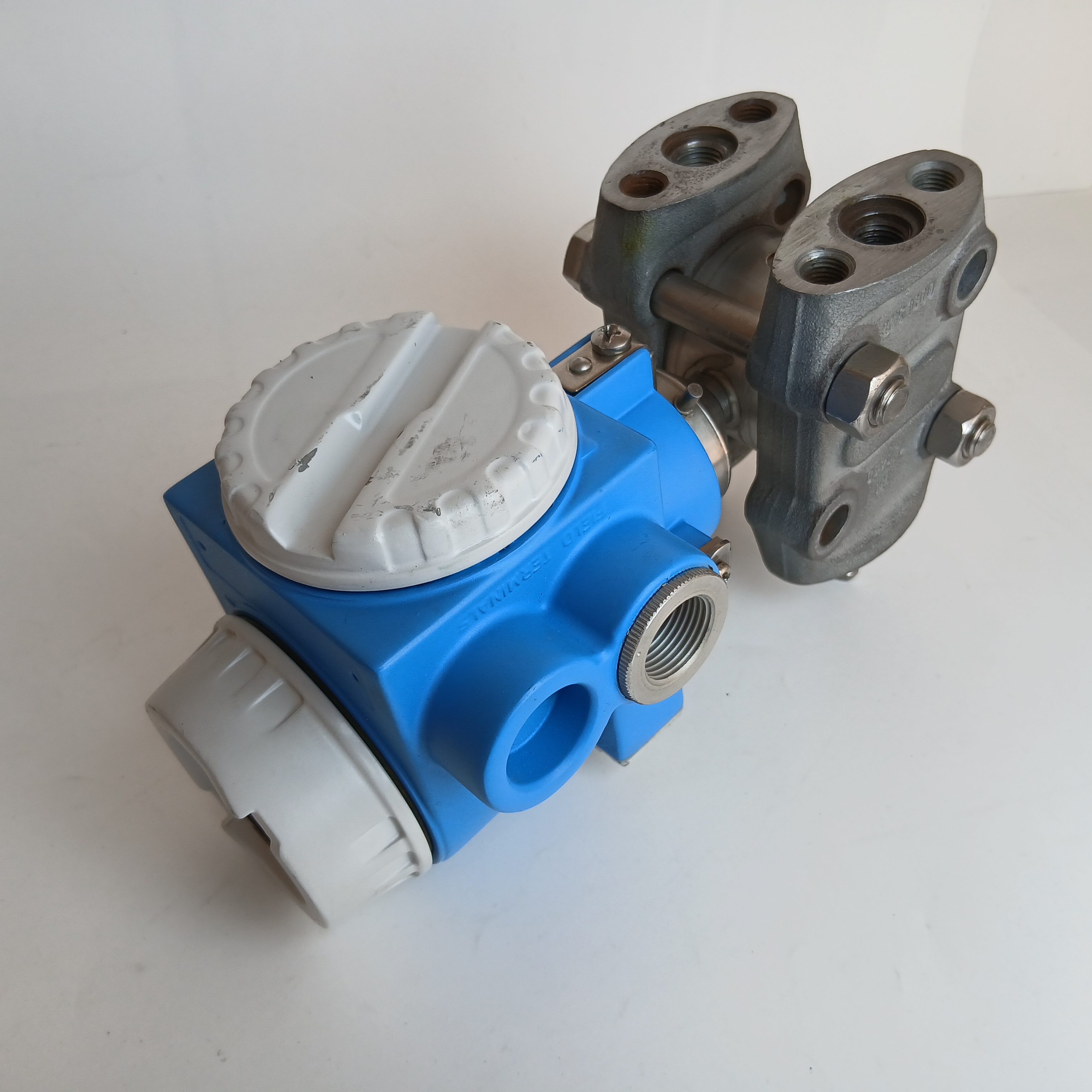

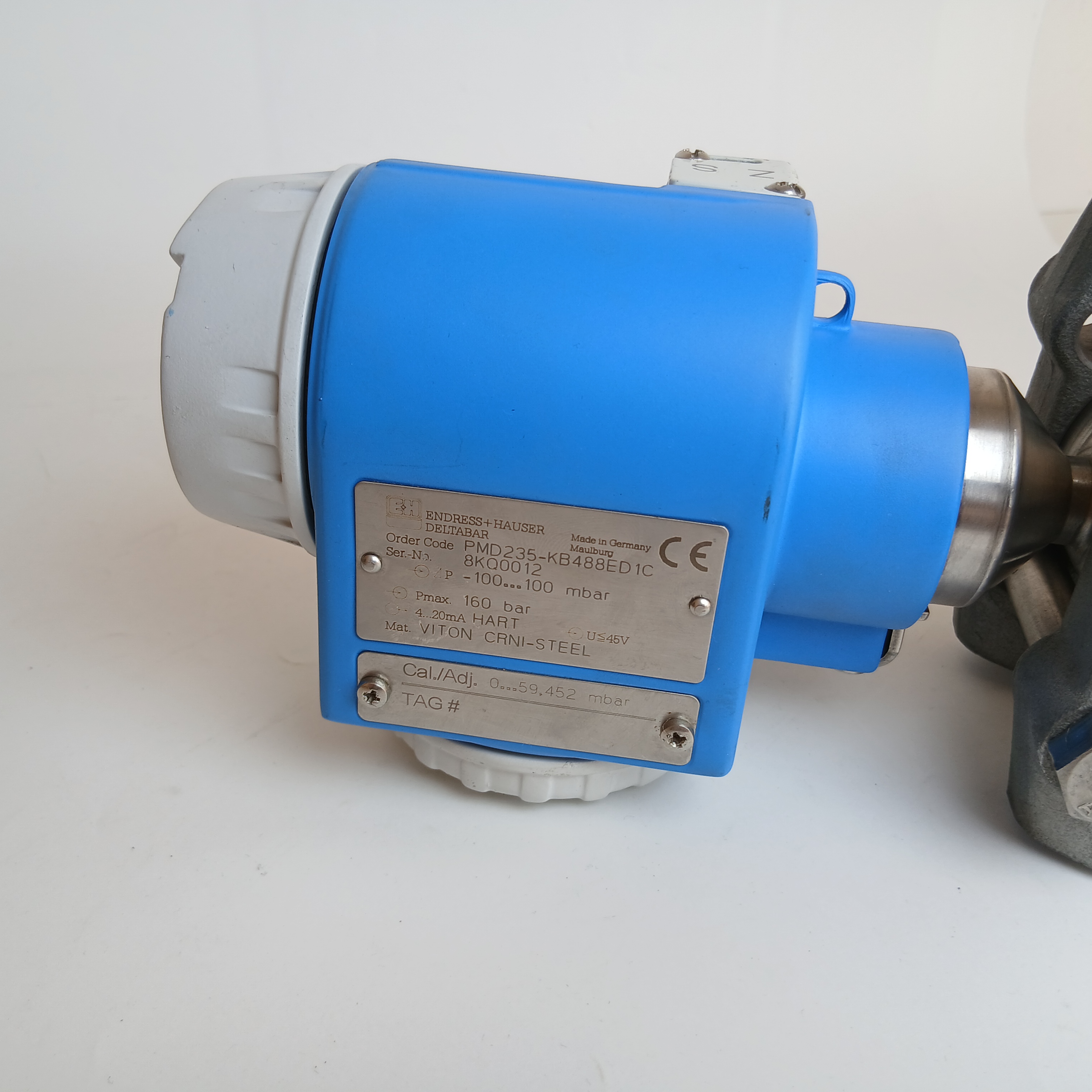

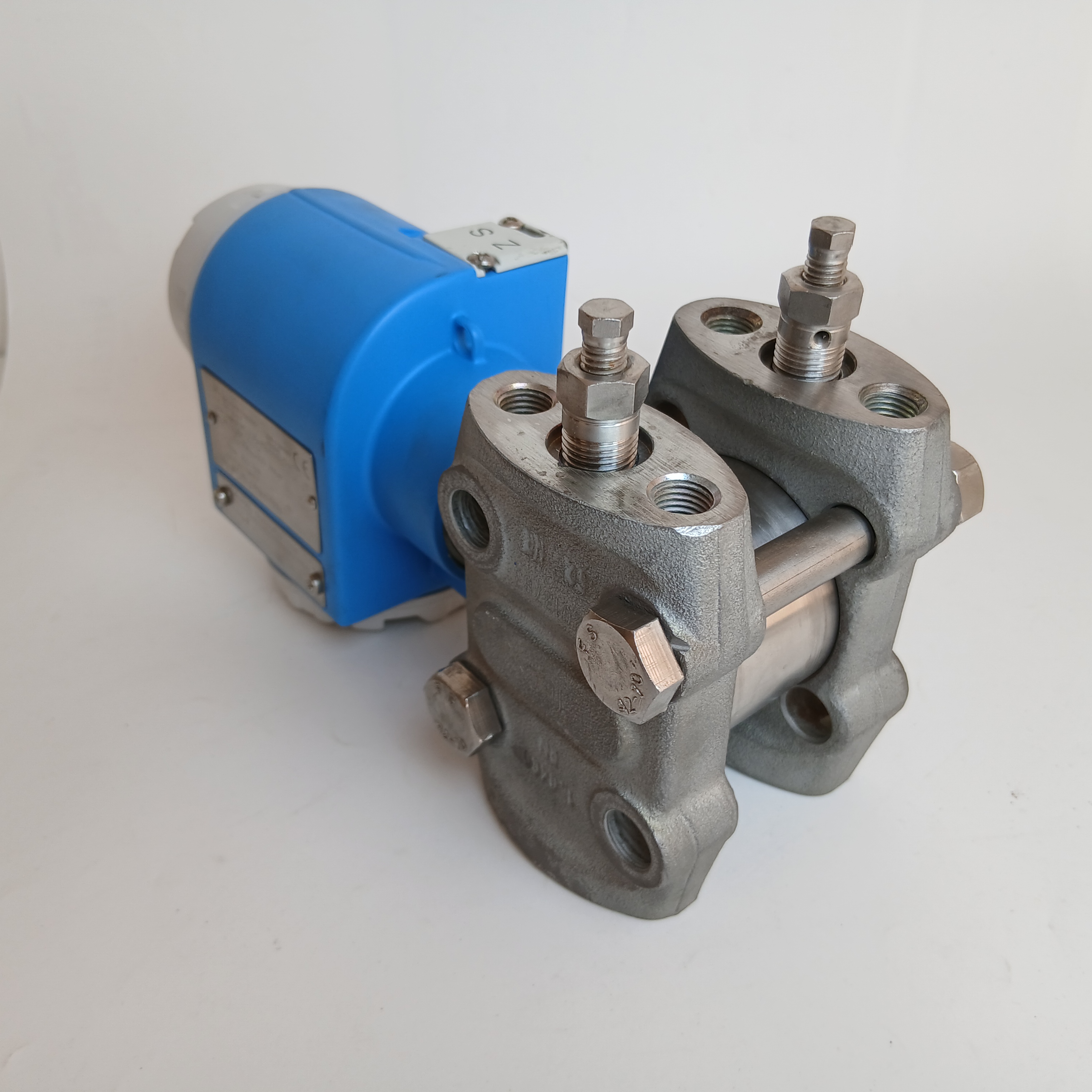

Deltabar S PMD235
Measuring principle Differential pressure
Digital differential pressure transmitter
Cable Entry; Approval:K=Gland M20; non-hazardous area
Output; Housing:B=4-20mA HART; Alu, top LCD
Nominal Range; Diaphragm Material; PN:48=Deltatop/Deltaset; 316L; 160bar/ 16MPa/2400psi
Calibration; Unit:8=adjusted for Deltatop/Deltaset
Additional Option:ED=2x vent valve 316L
Seal:1=FKM Viton
Process Connection:C=NPT1/4-18 DIN19213, 316L
پارت نامبر:
PMD235-KB488ED1C
برند:
Endress Hauser
وضعیت کالا:
استفاده نشده
