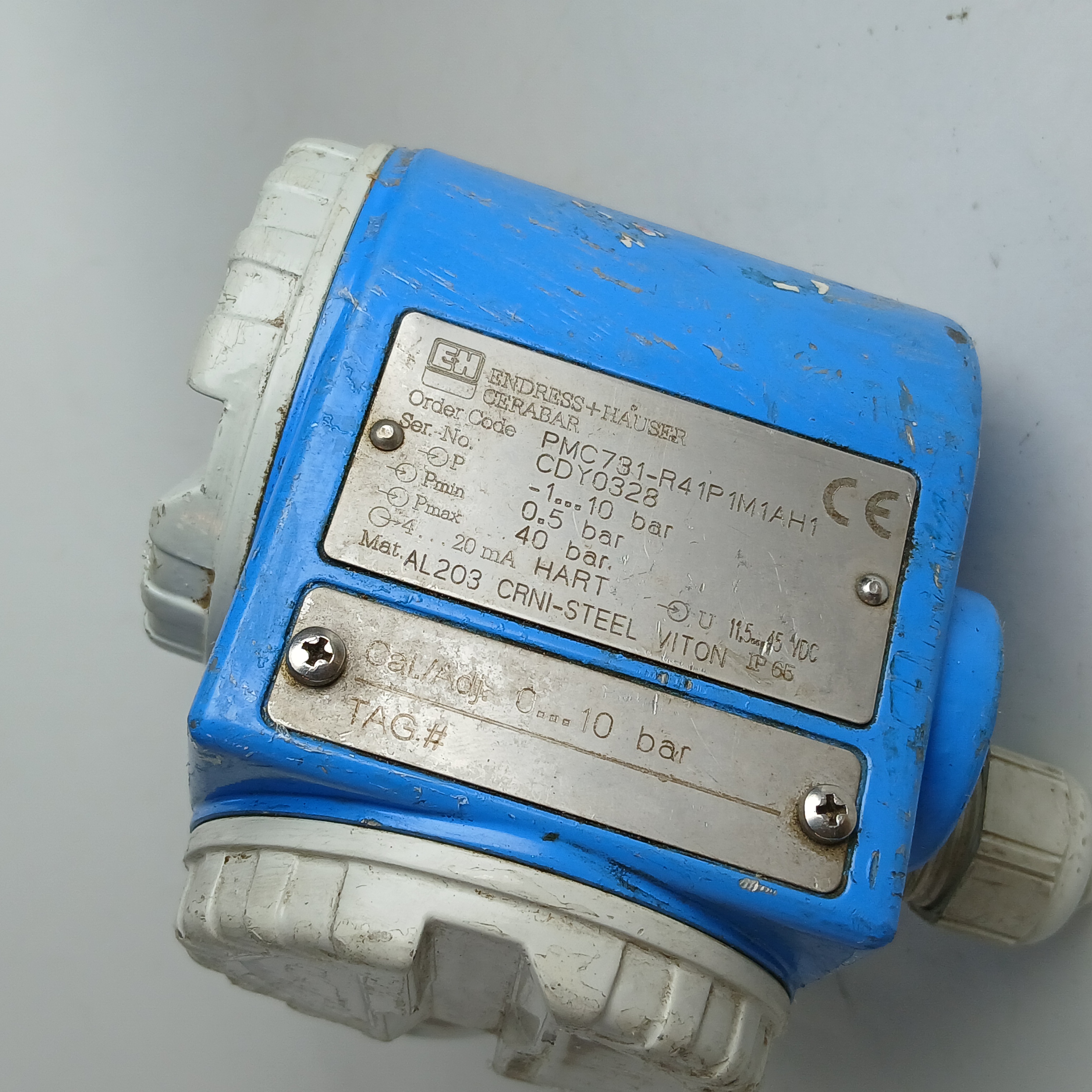

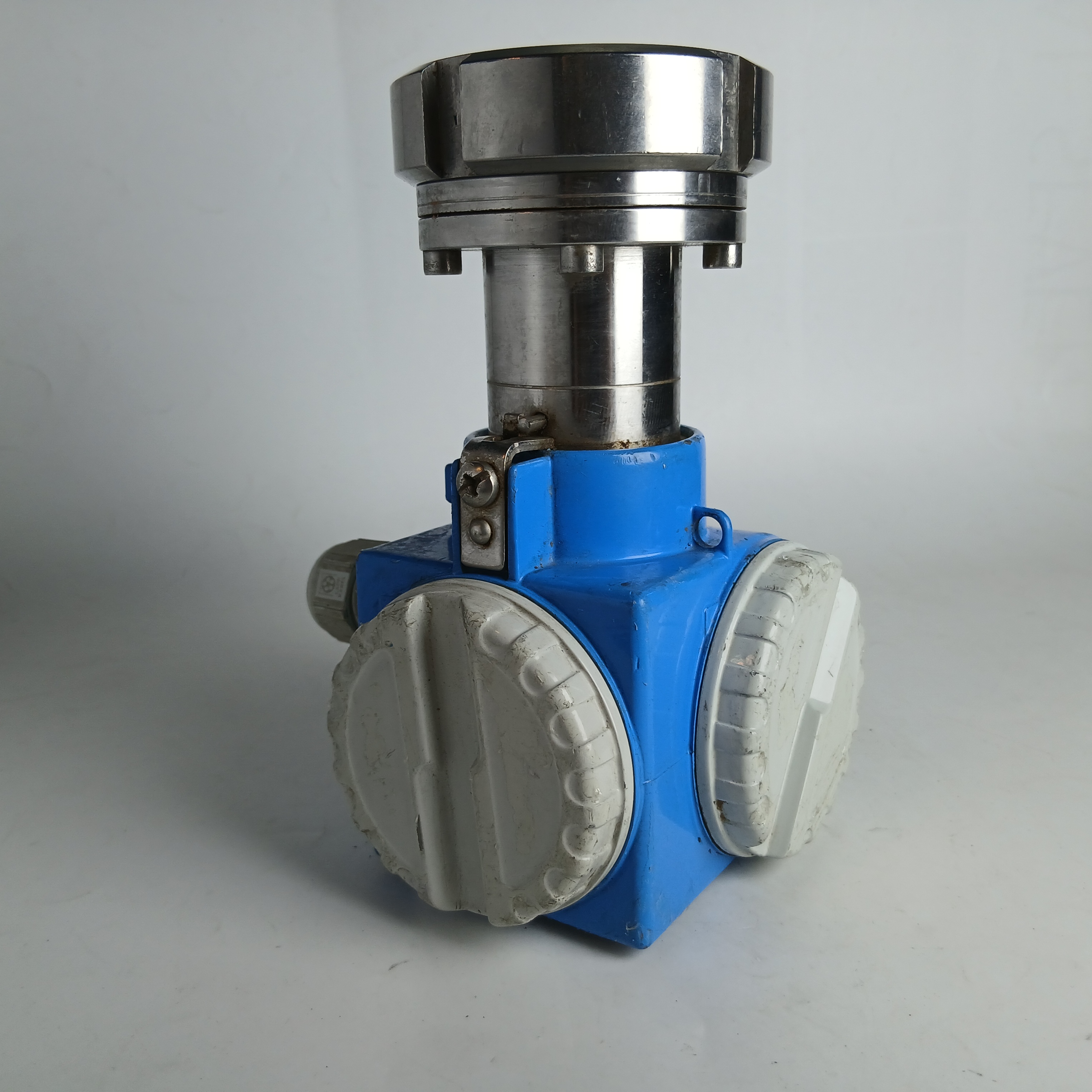

PMC731-R41P1M1AH1
ترانسمیتر فشار 10bar
Pressure Transmitter
R=Approval: Non-hazardous area

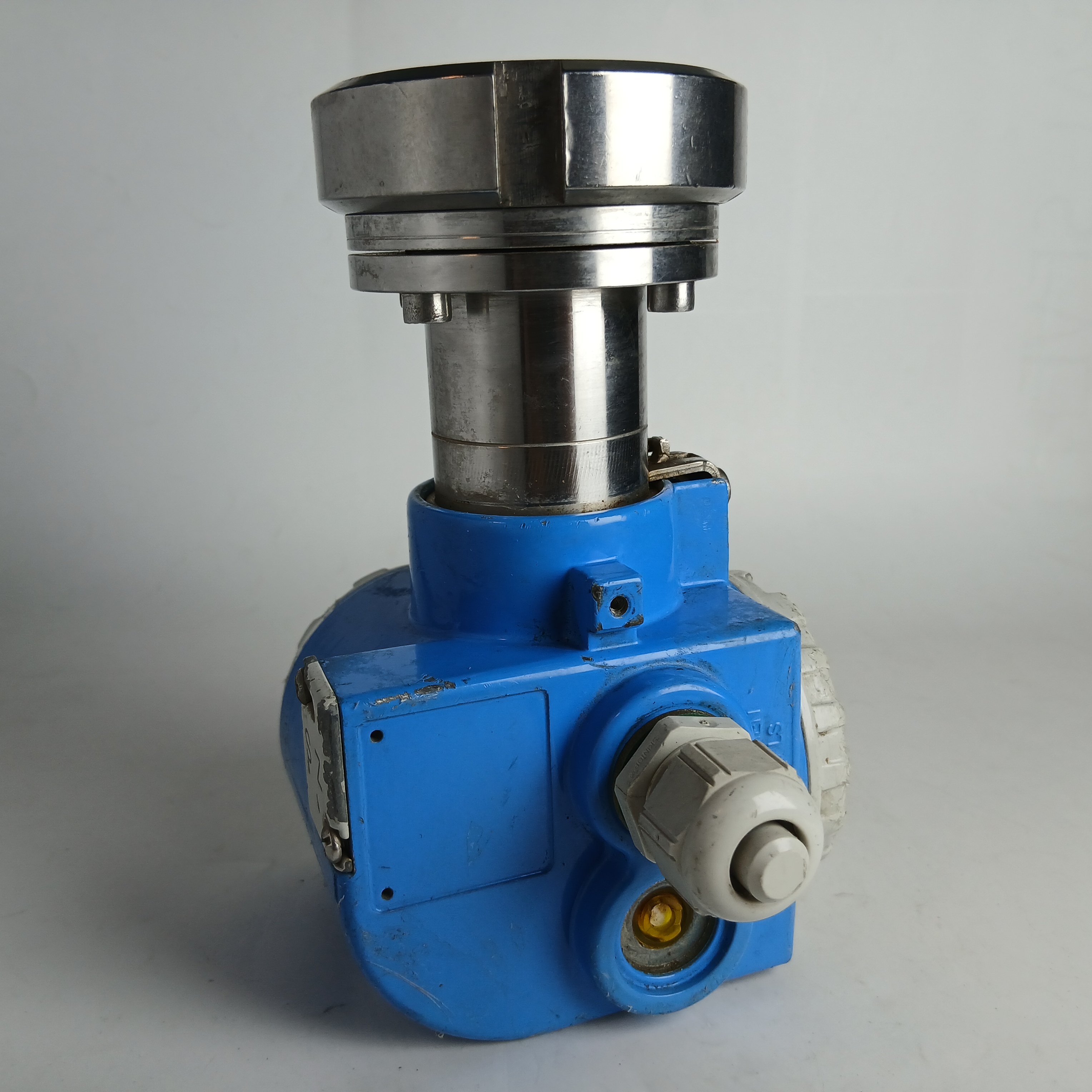

4= Housing; Cable Entry: Alu; gland M20 (EEx d > thread M20)
1P=Sensor Range; Sensor Overload Limit: -1...10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
1= Calibration; Unit: Sensor range; mbar/bar
M= Output: 4-20mA Hart + advanced software
1= Additional Option: Basic version

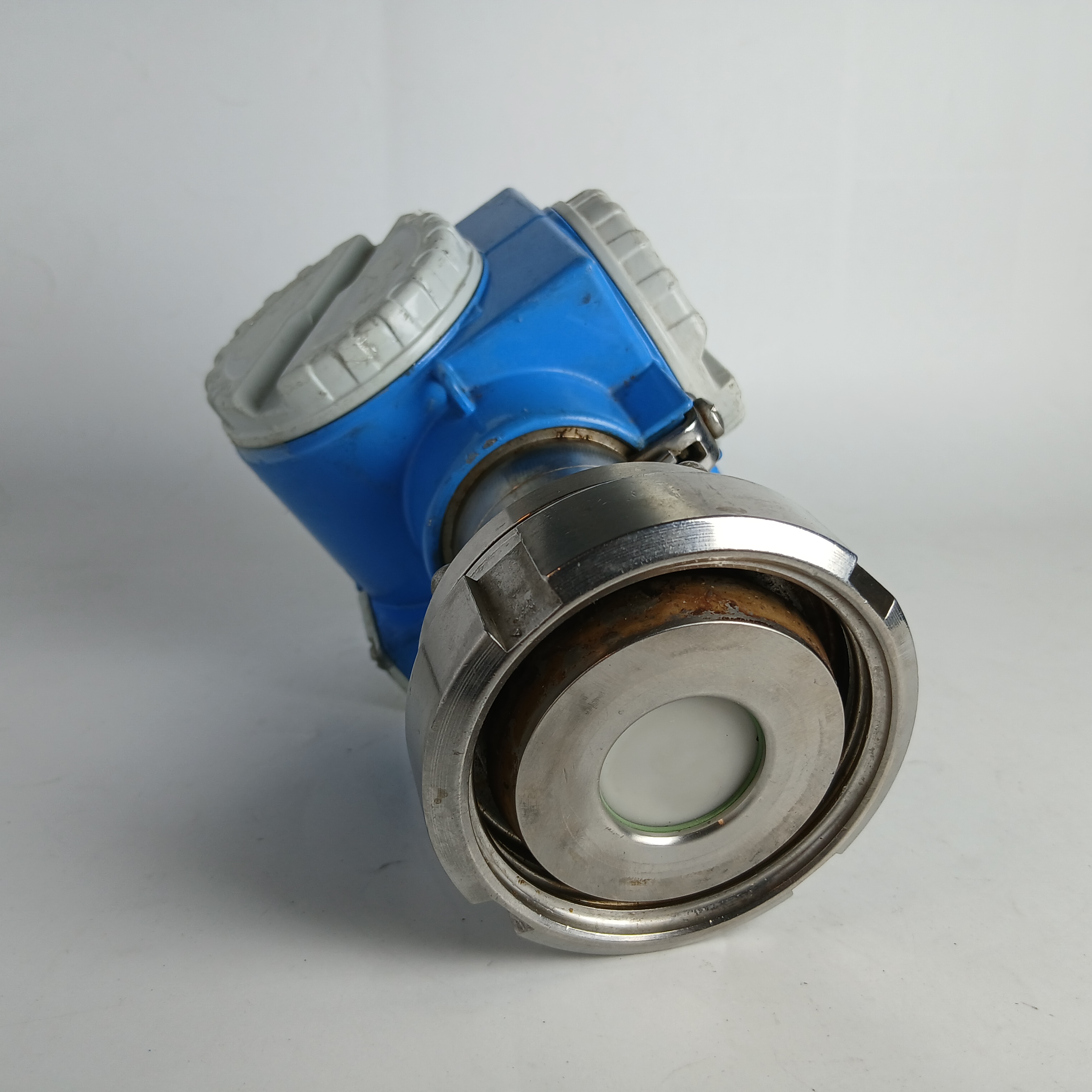

AH= Process Connection: DIN11851 DN40 PN40, 316L,Ceramic flushm
1=Seal: FKM Viton
پارت نامبر:
PMC731-R41P1M1AH1
برند:
Endress Hauser
وضعیت کالا:
استفاده نشده
