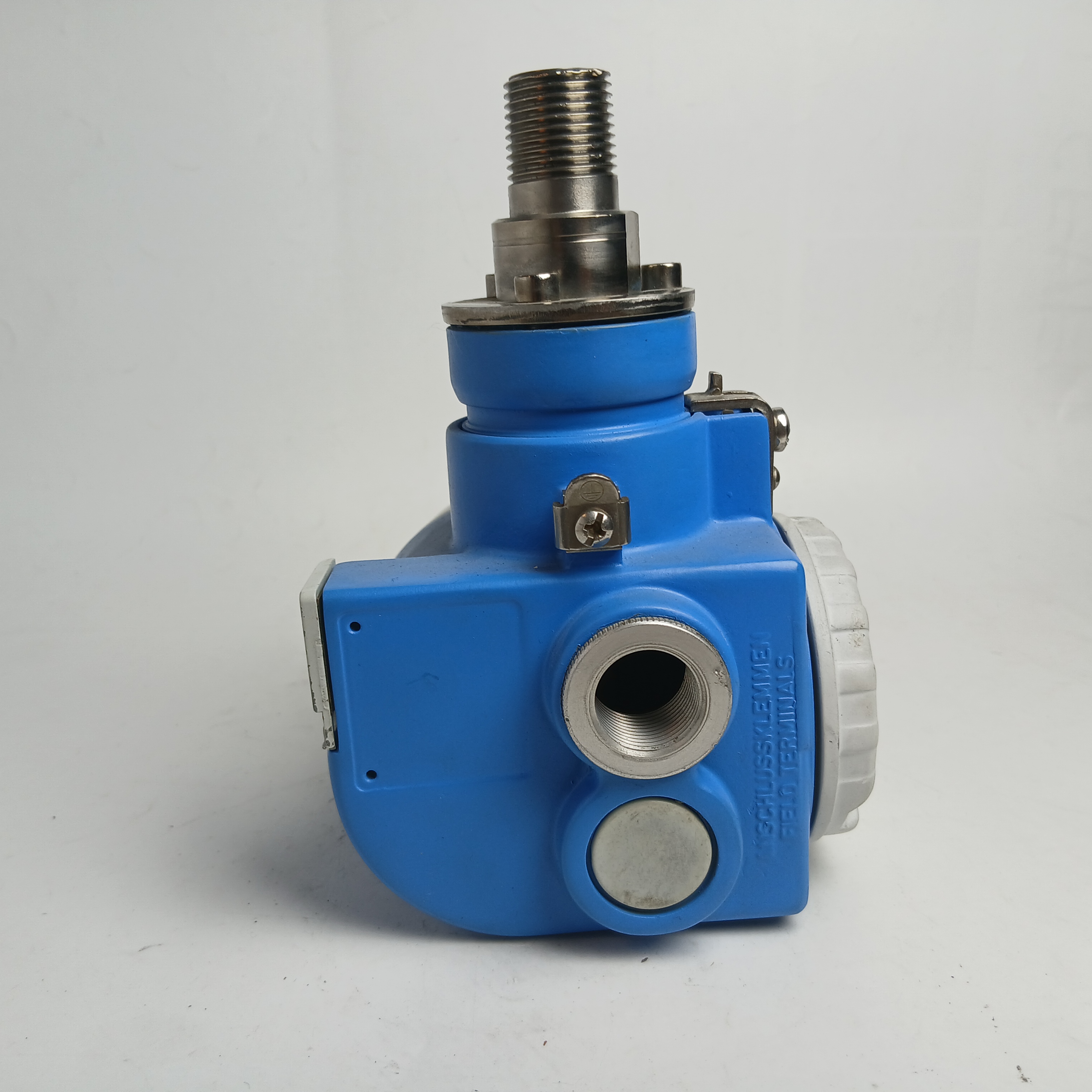

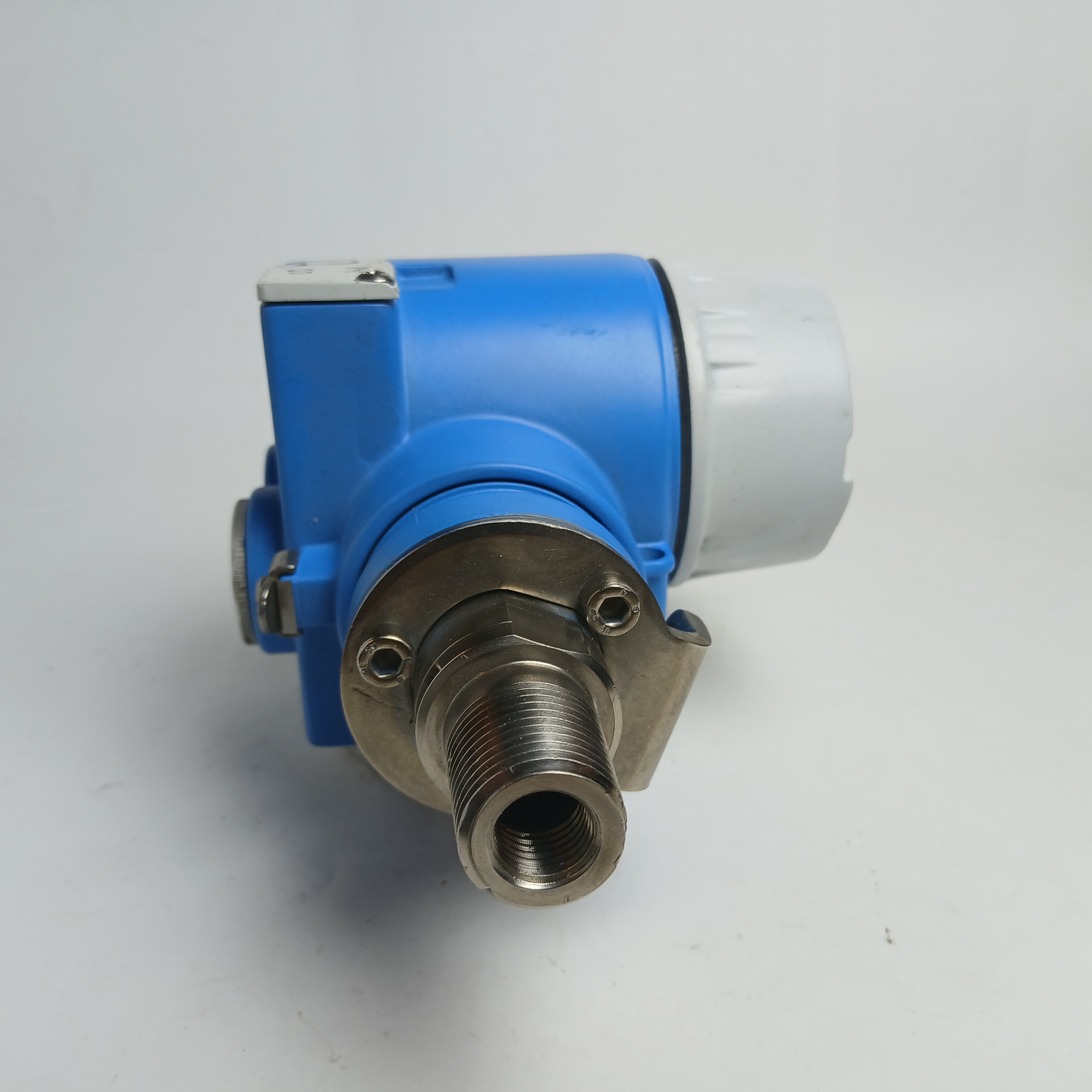

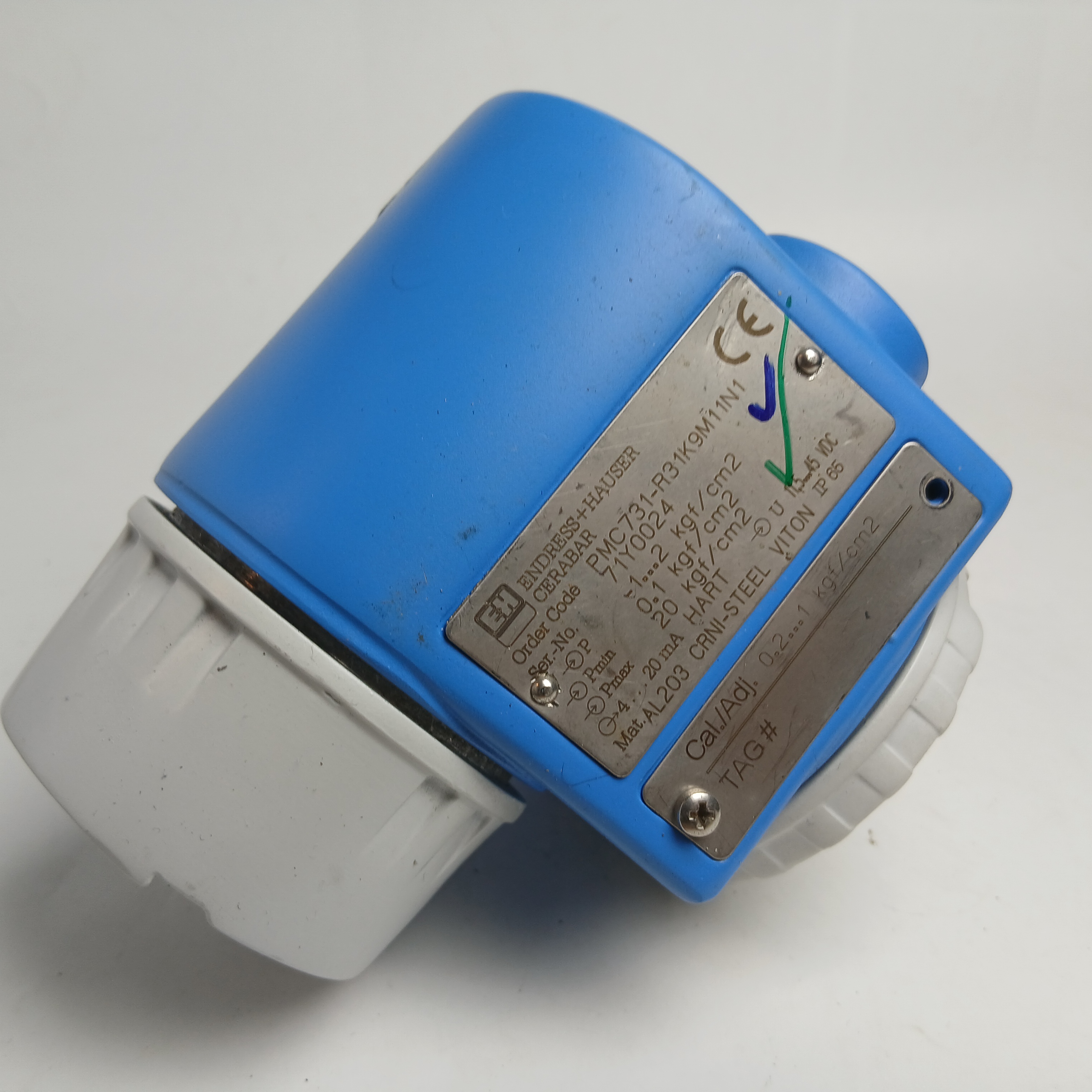

PMC731-R31K9M11N1
ترانسمیتر فشار 2bar
Pressure Transmitter
R=Approval:Non-hazardous area
3=Housing; Cable Entry:Alu + LCD; gland M20 (EEx d > thread M20)
1K=Sensor Range; Sensor Overload Limit: 0...2bar/200kPa/30psi gauge; 18bar/1.8MPa/270psi
9=Calibration; Unit: ***Adjusted; see additional spec.
M=Output:4-20mA Hart + advanced software
1=Additional Option: Basic version
1N=Process Connection: ***Thread ANSI MNPT1/2 FNPT1/4, 316L
1=Seal: FKM Viton
پارت نامبر:
PMC731-R31K9M11N1
برند:
Endress Hauser
وضعیت کالا:
استفاده نشده
