PMC731-I71P2M11A1
ترانسمیتر فشار 10bar

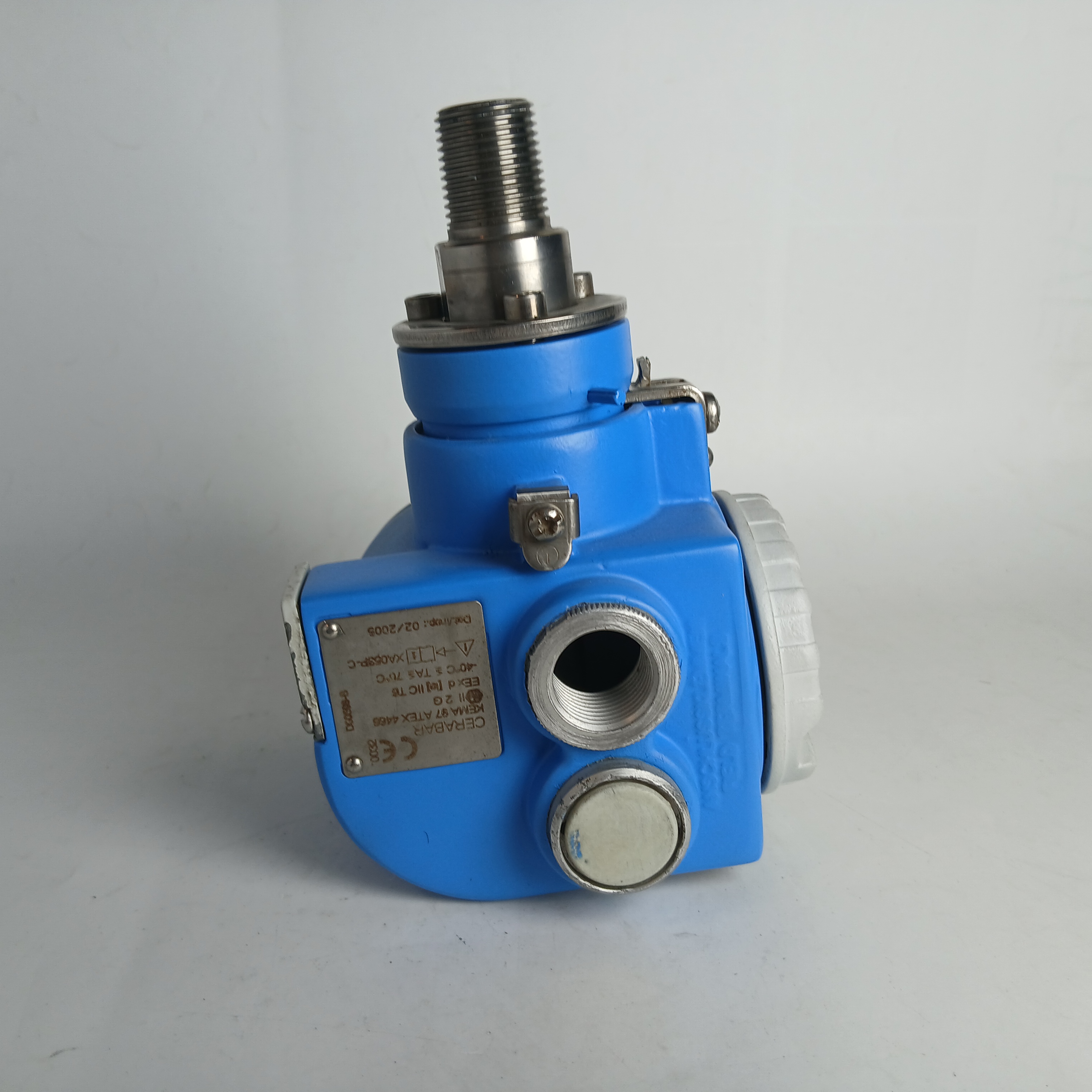

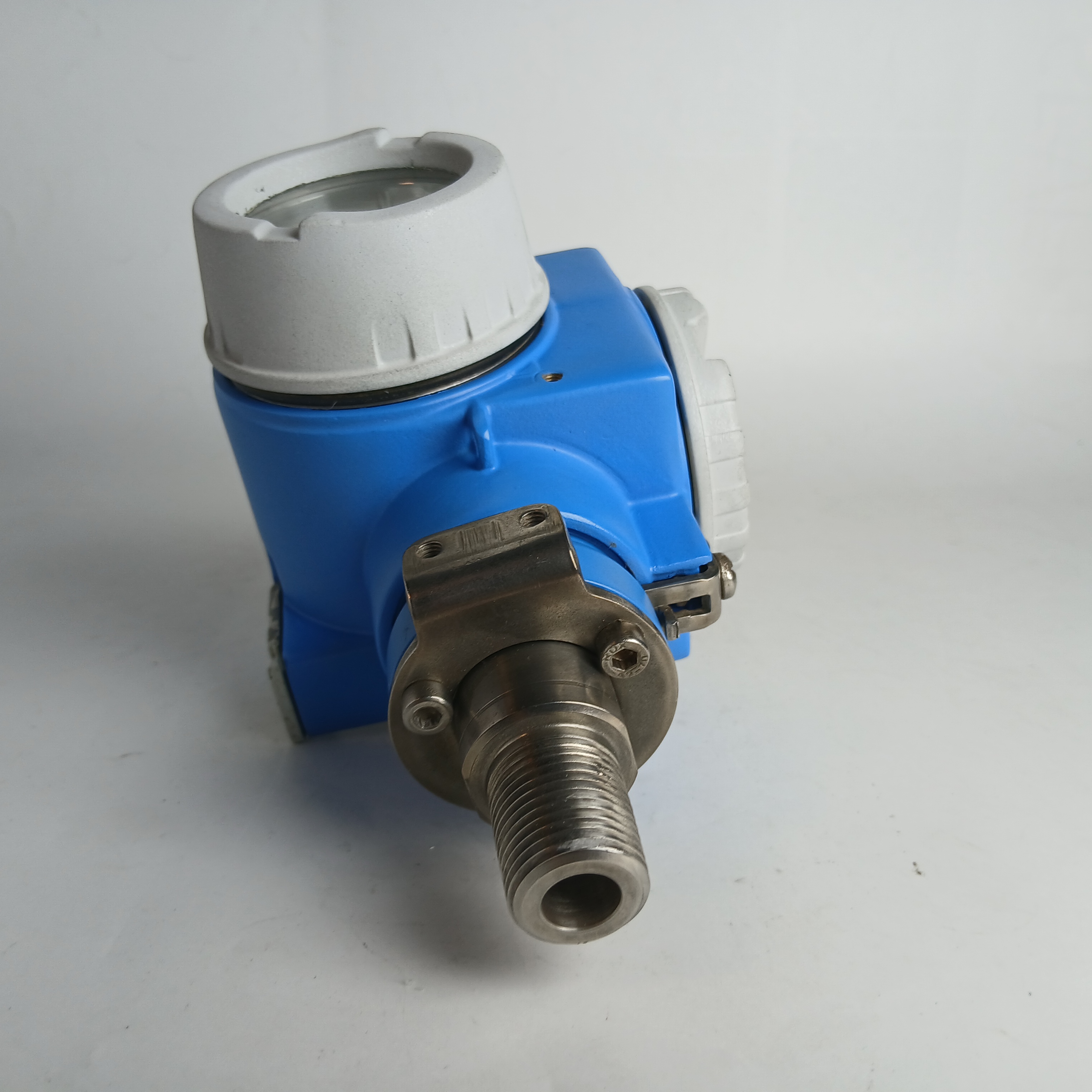

Pressure Transmitter
I= Approval:ATEX II 2G EEx d (ia) IIC T6, Potential bond
7= Housing; Cable Entry: Alu + LCD; thread G1/2
1p= Sensor Range; Sensor Overload Limit: 0...10bar/1MPa/150psi gauge; 40bar/4MPa/600psi
2= Calibration; Unit: Sensor range; kPa/MPa
M= Output: 4-20mA Hart + advanced software
1= Additional Option: Basic version
1A= Process Connection: Thread ANSI MNPT1/2 hole 11mm, 316L
1= Seal: FKM Viton
پارت نامبر:
PMC731-I71P2M11A1
برند:
Endress Hauser
وضعیت کالا:
استفاده نشده
