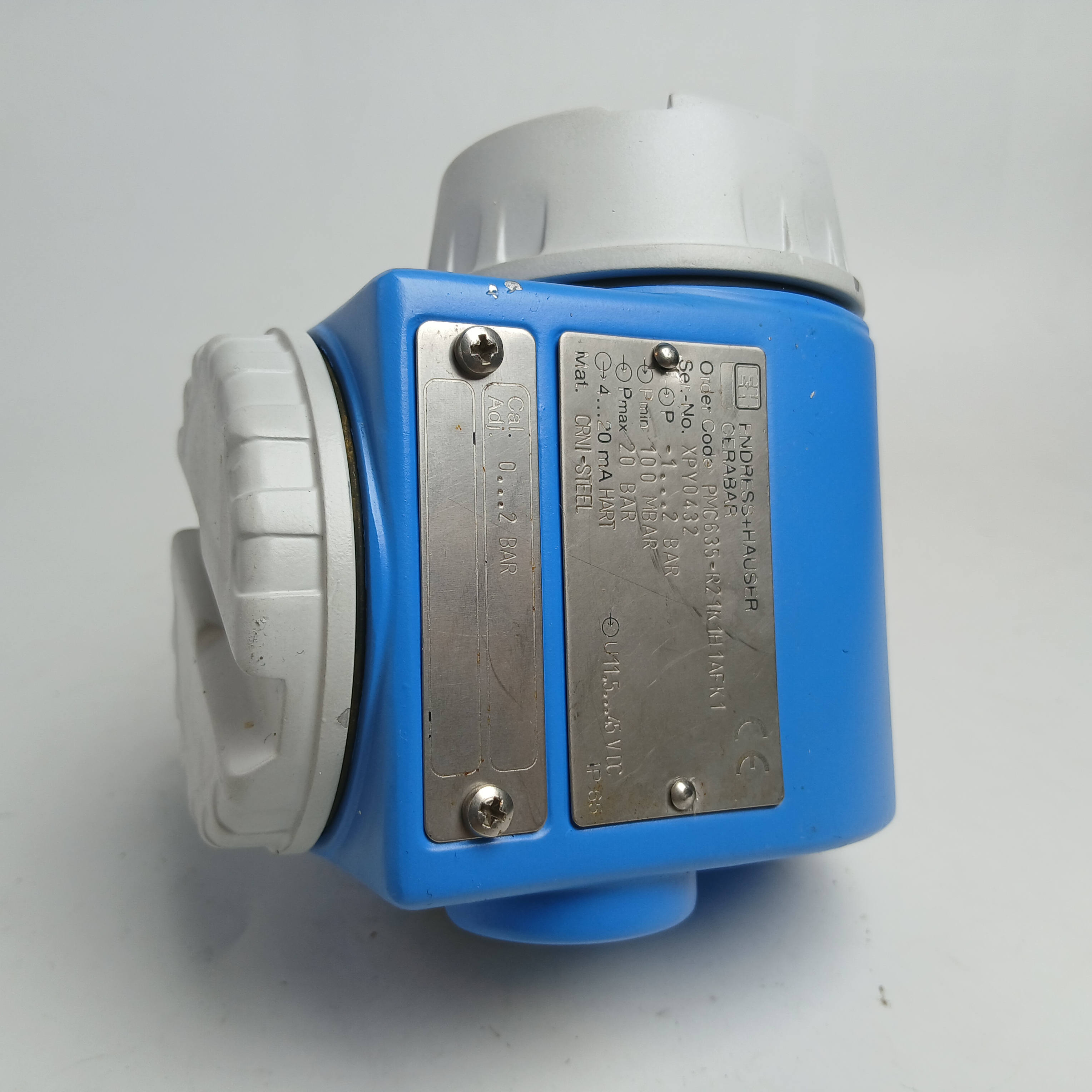

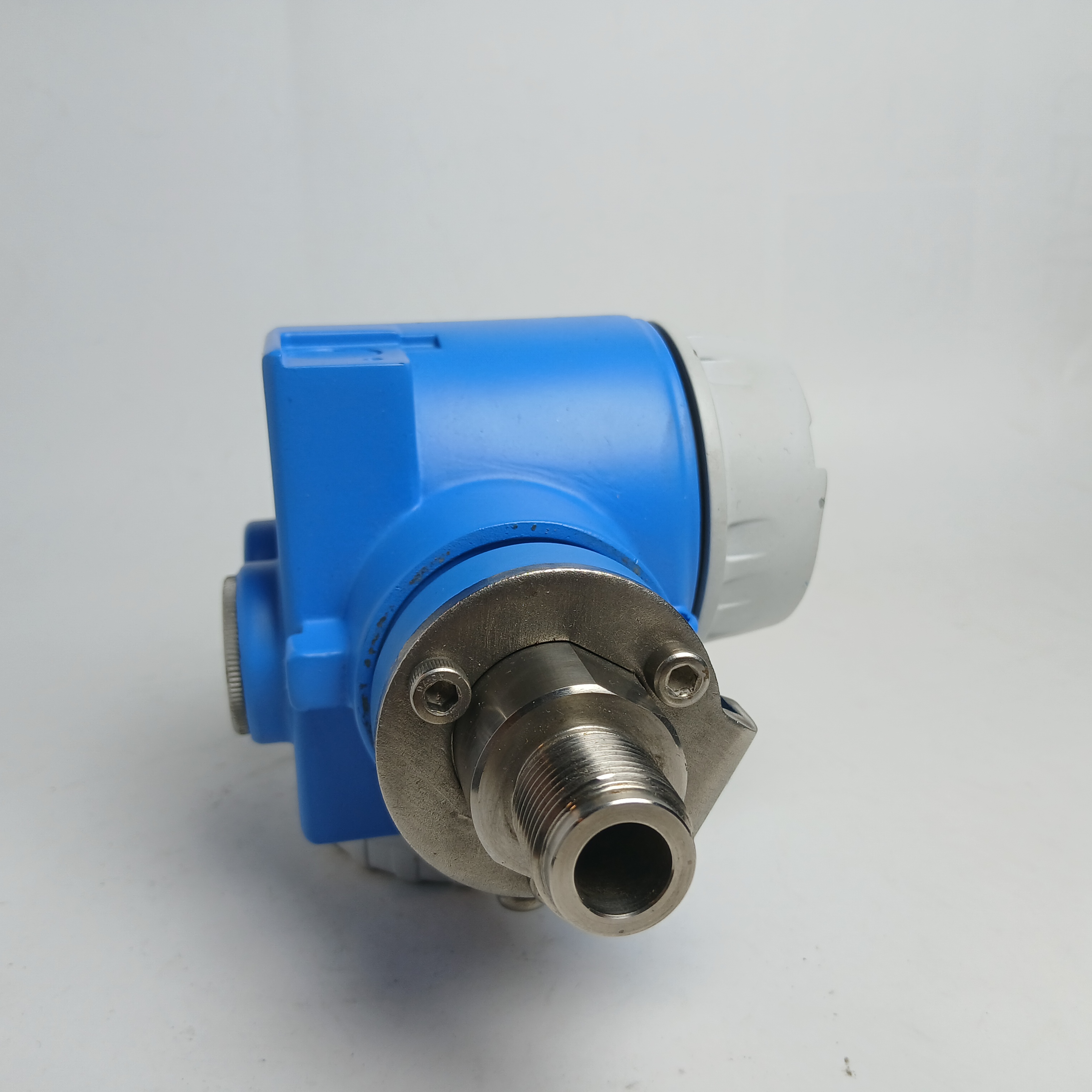

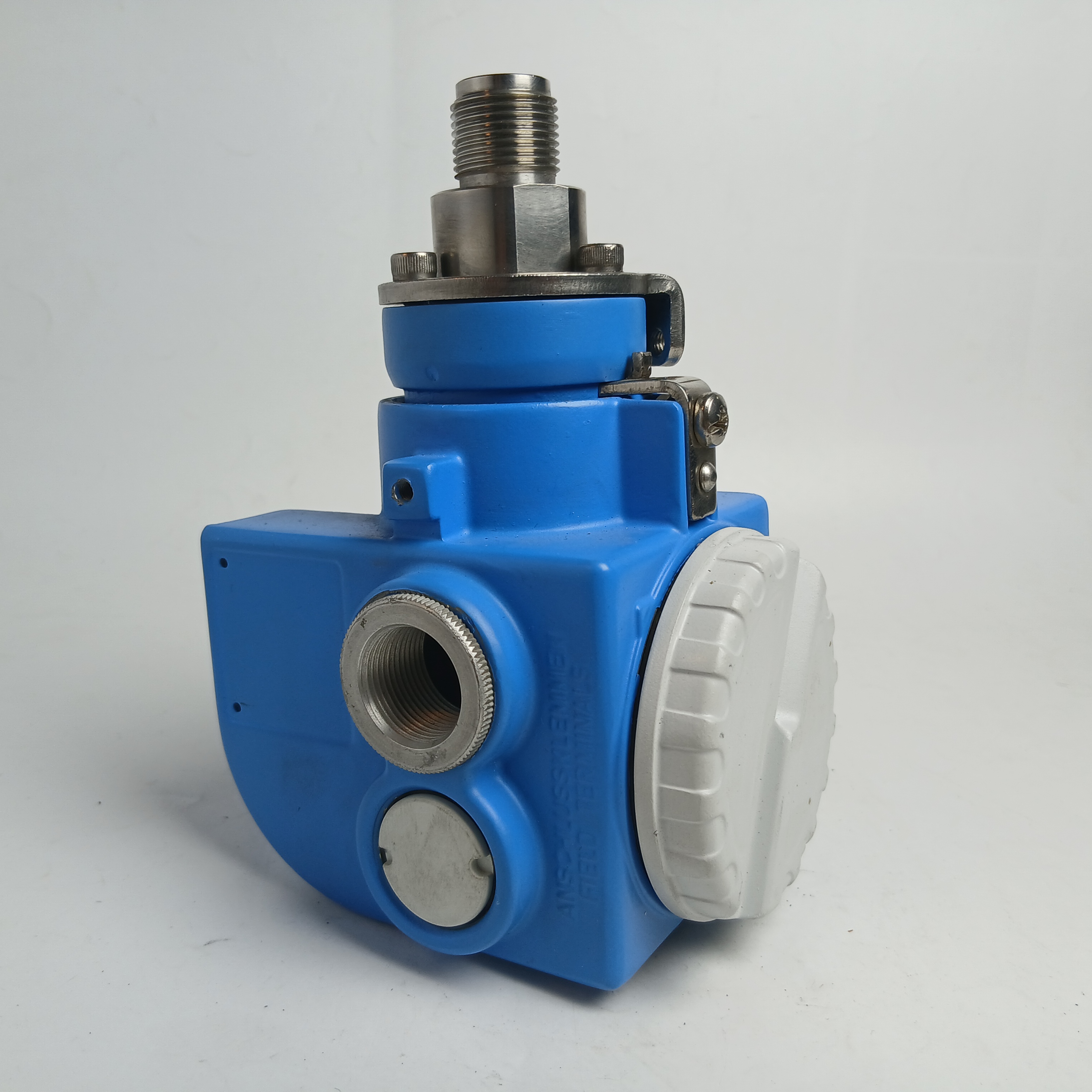

PMC635-R21K1H1AFK1
ترانسمیتر فشار 2bar
Pressure transmitter
R=Certificate:For non-hazardous area use
2=Aluminiumhousing: display, cable entry: Housing: PG 13.5 cable gland
1K= Sensor nominal range (turn down 20:1): 2 bar g, 200 kPa, 30 psig 10x overload proof
1=Calibration and units: Calibrated: 0 to nom.value in mbar/bar
H=Electronics, communication-protocol: Output: 4...20mA, HART-protocol
1=Additional options: not selected
A=Fill fluid and installation to Cerabar: silicon oil, direct mount.
FK=Process connection :DN50 PN10/40 flange, 50mm extension
1= Diaphragm material: Seal diaphragm: SS 316L / 1.4435
پارت نامبر:
PMC635-R21K1H1AFK1
برند:
Endress Hauser
وضعیت کالا:
استفاده نشده
