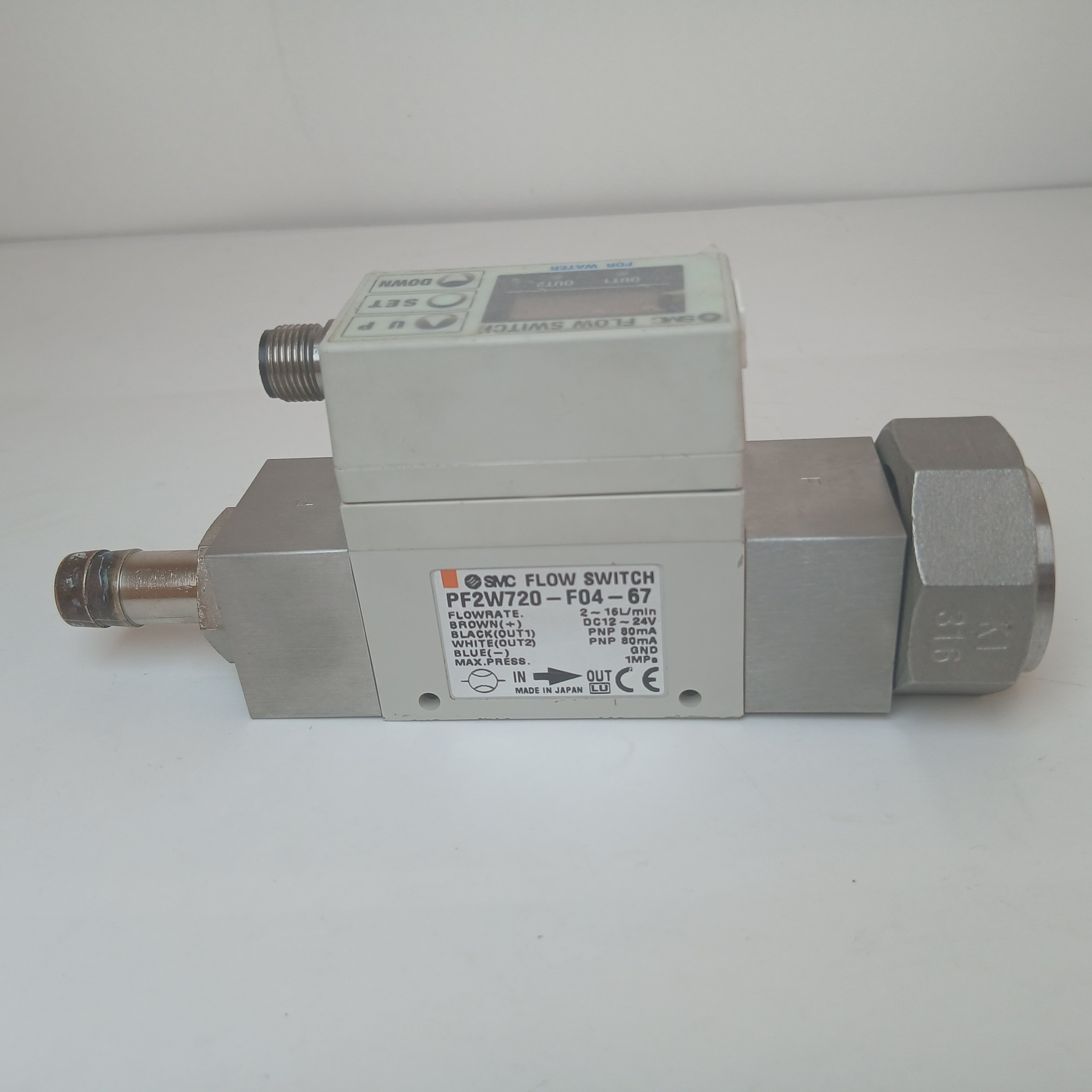

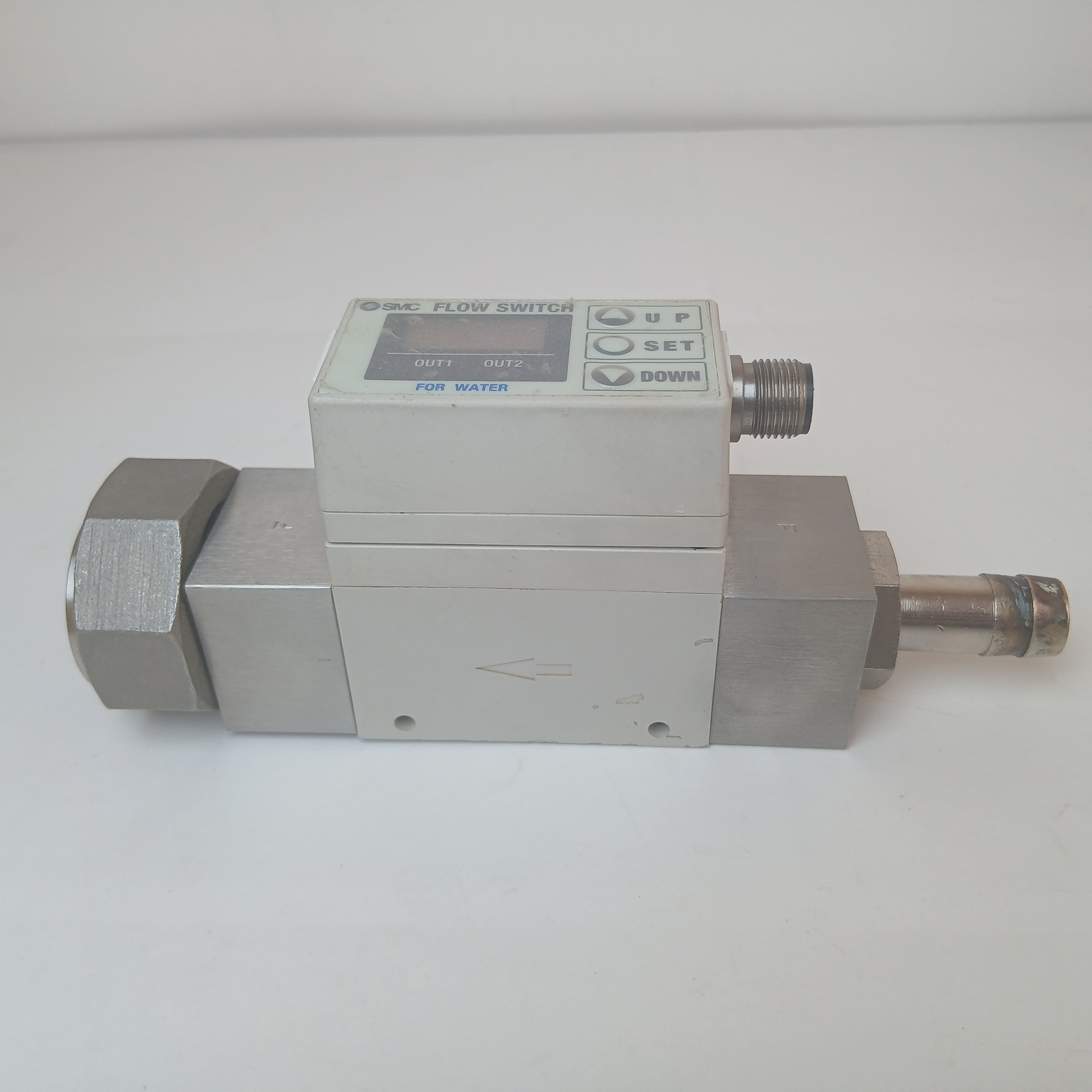

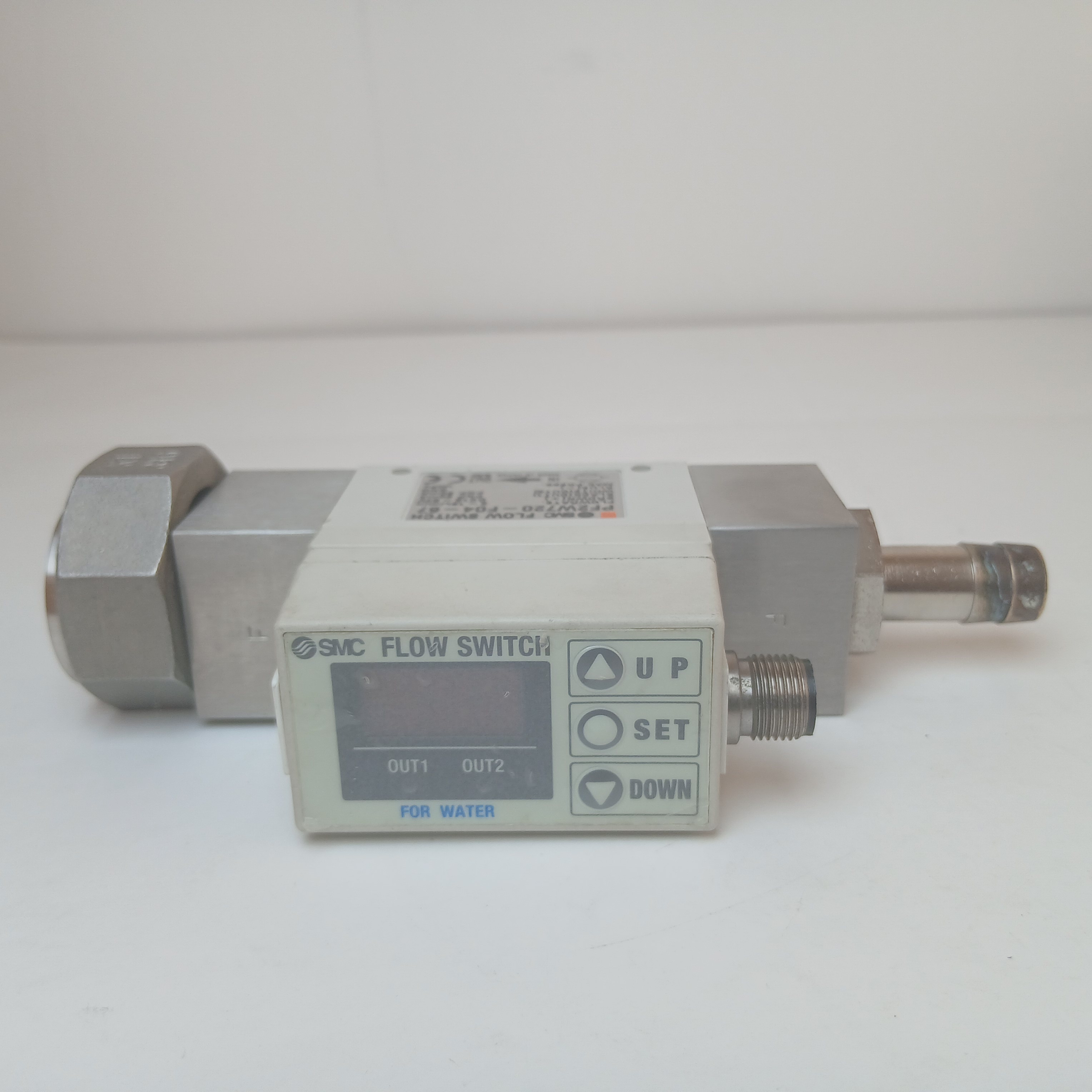

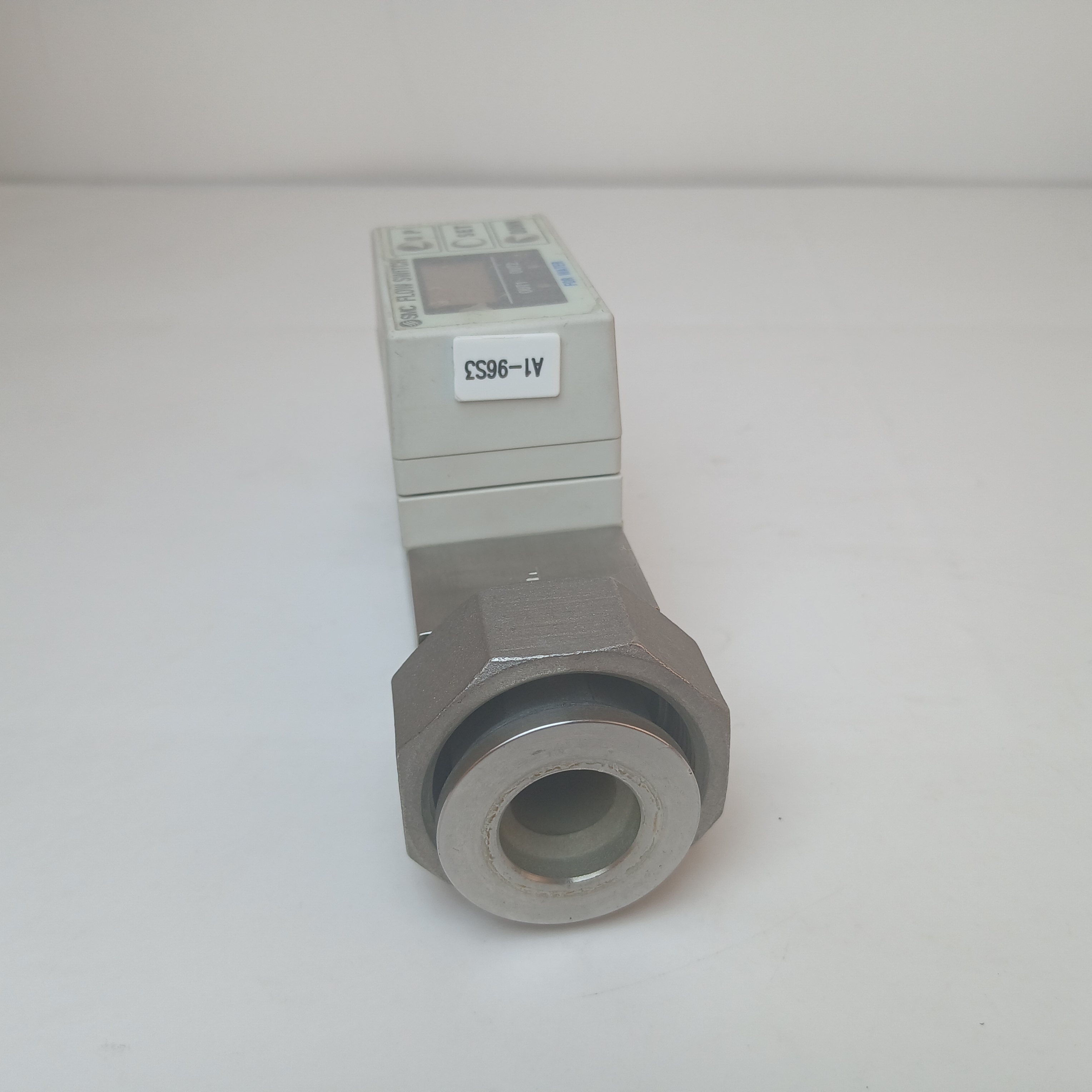

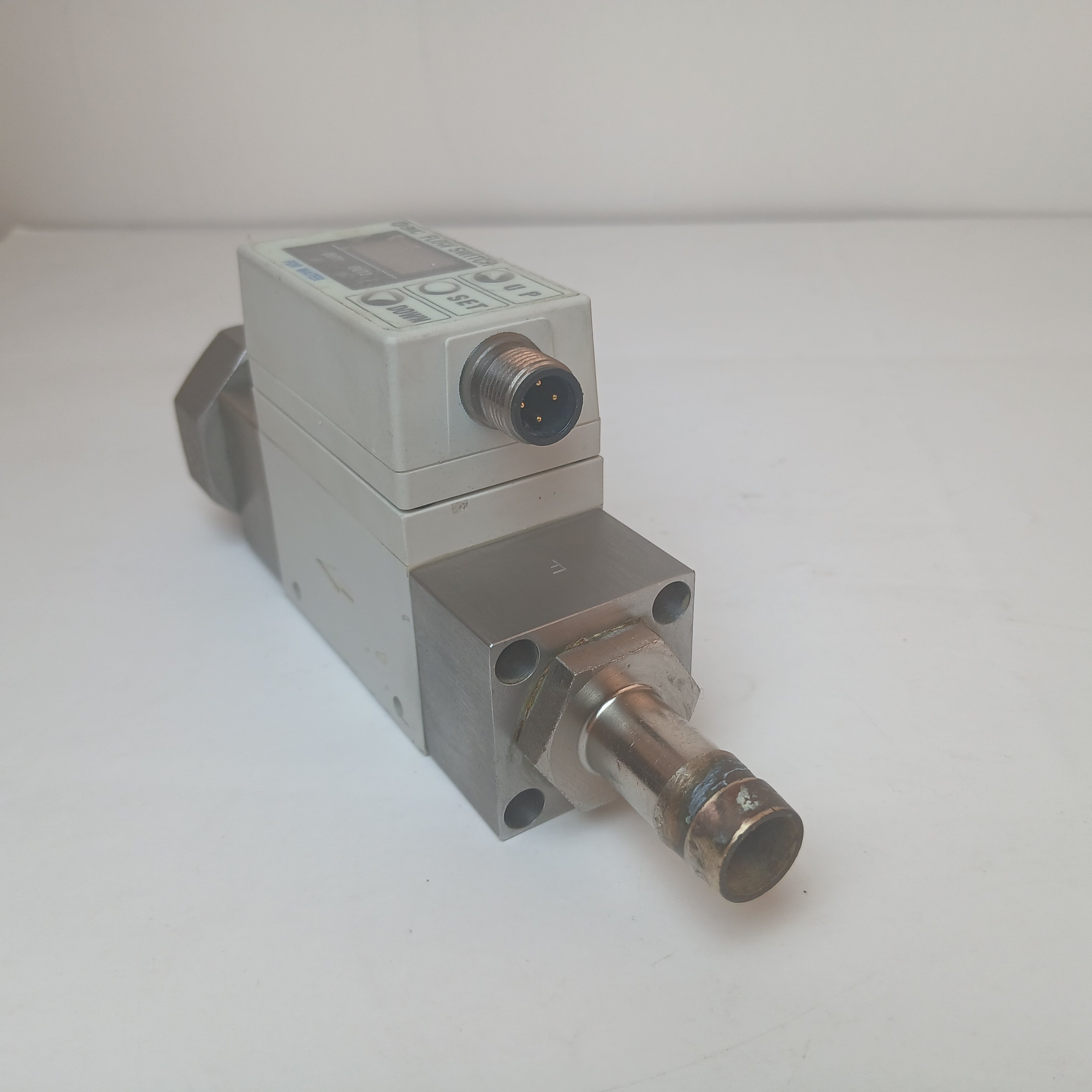

PF2W720-F04-67

digital flow sw, integ sensor, IFW/PFW FLOW SWITCH

Measured fluid: Water

Flow rate measurement range: 1.7 to 17.0 l/min

Set flow rate range: 1.7 to 17.0 l/min

Rated flow range: 2 to 16 l/min

Minimum set unit: 0.1 l/min

Accumulated pulse flow rate exchange value (Pulse width: 50 ms): 0.1 l/pulse

Operating fluid temperature: 0 to 50C

Linearity: 5% F.S. or less

Repeatability: 3% F.S. or less

Temperature characteristics : 5% F.S. or less (0 to 50C, based on 25C)

Current consumption (No load): 70 mA or less

Port size (Rc, NPT, G):

Detection type: Karman vortex

Indicator light: 3-digit, 7-segment LED

Operating pressure range: 0 to 1 MPa

Proof pressure: 1.5 MPa
