مبدل اترنت به RS485/422

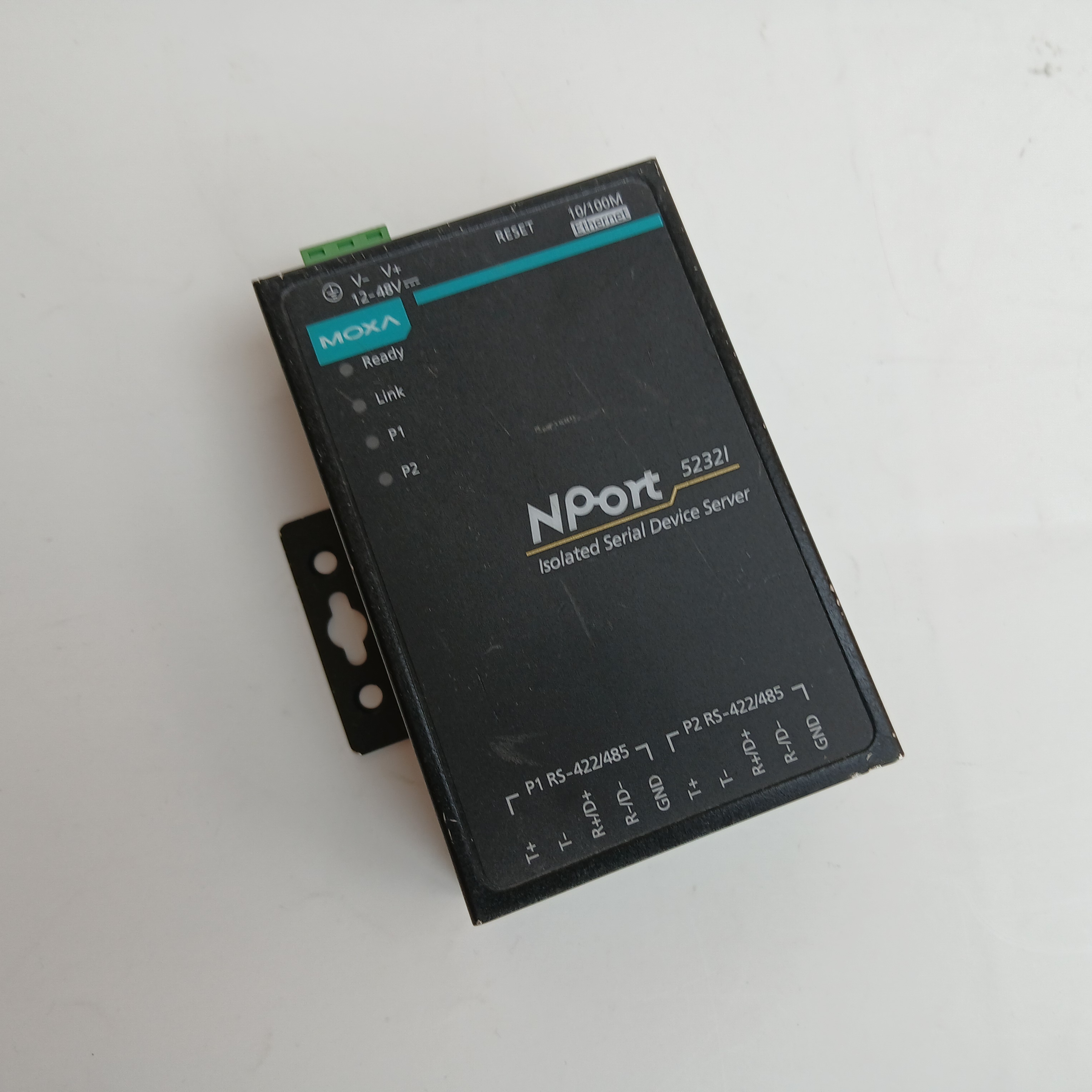

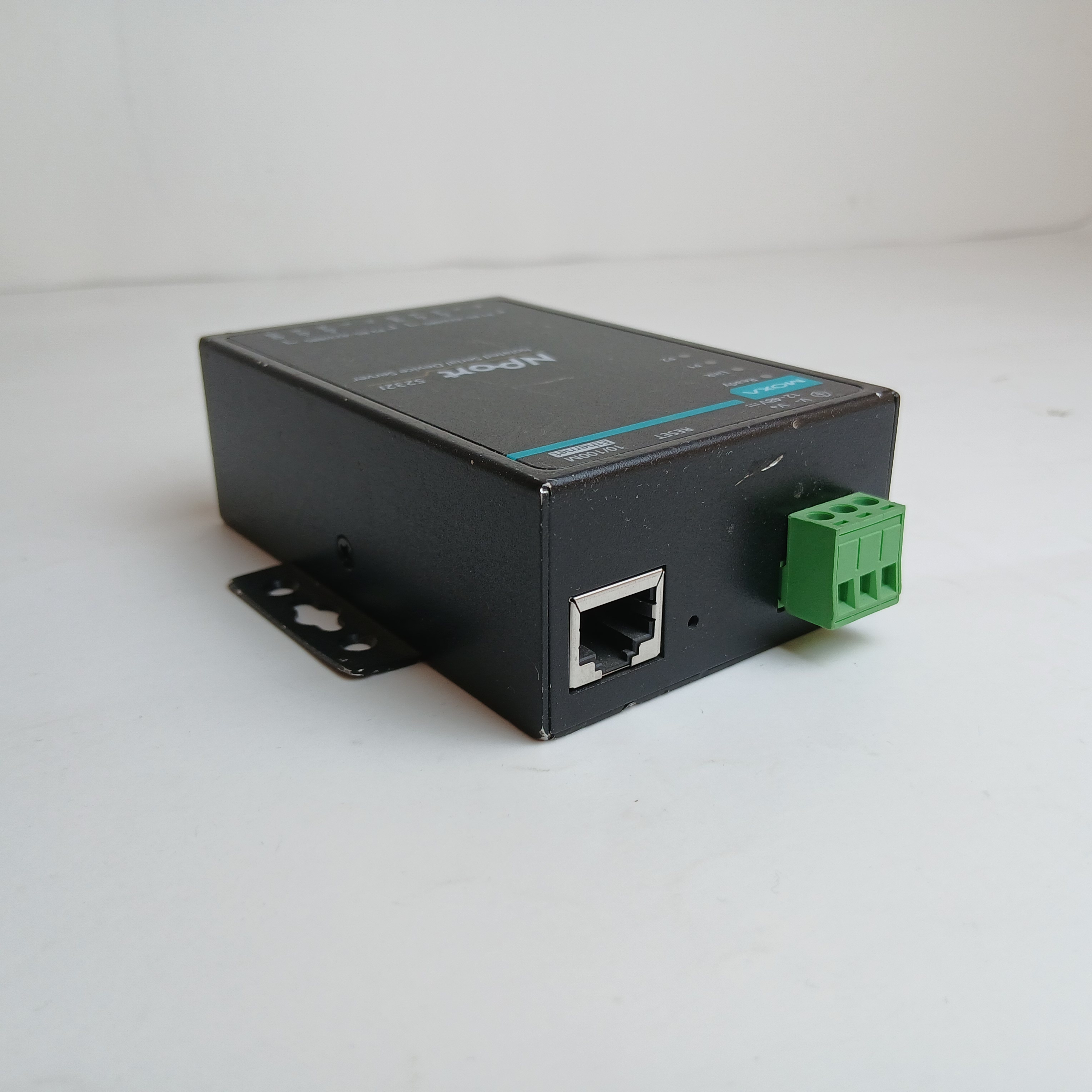

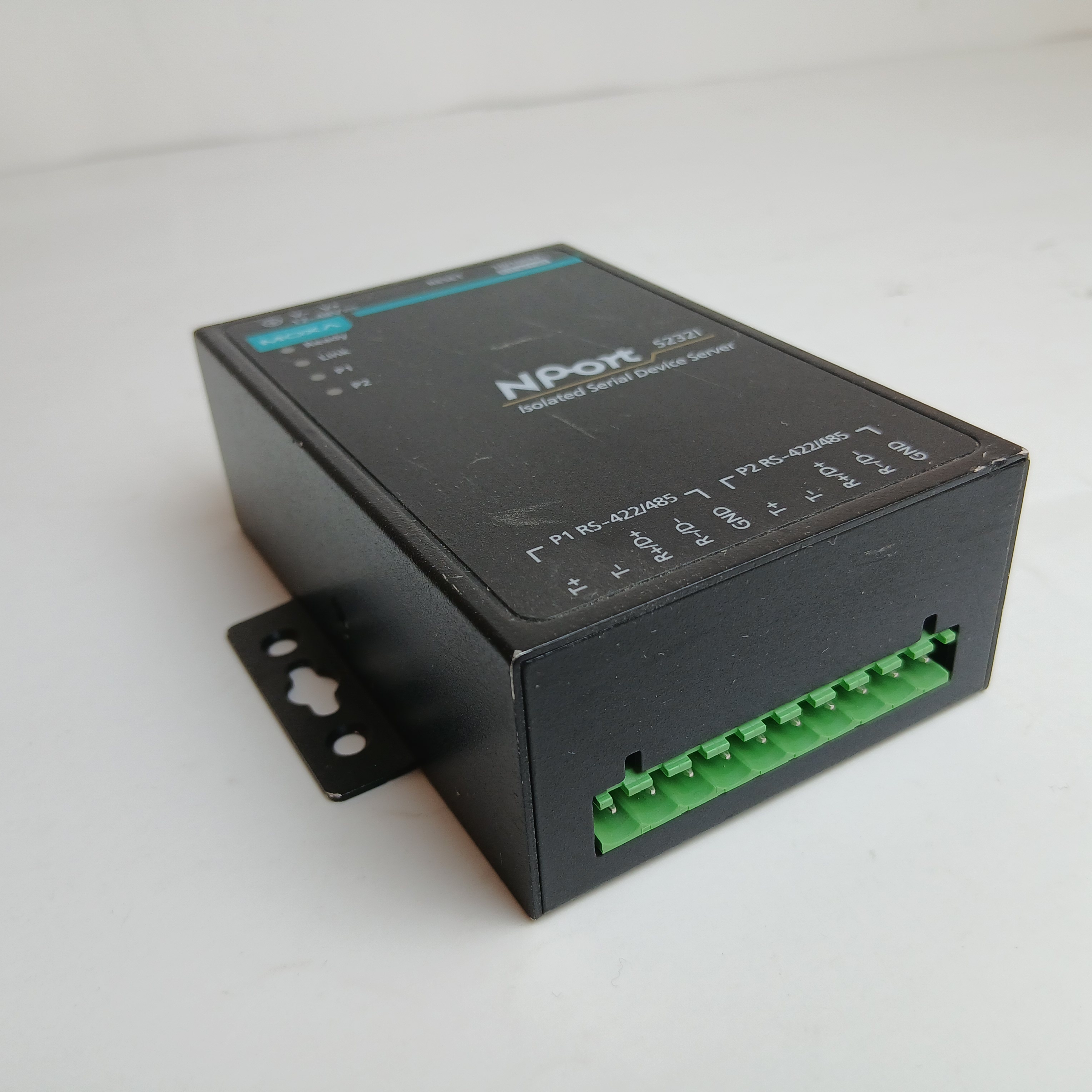

NPort52321
NPort 5200 Series
2-port RS-422/485 device server, 0 to 55°C operating temperature
Ethernet Interface: 10/100BaseT(X) Ports (RJ45 connector): 1
Magnetic Isolation Protection : 1.5 kV (built-in)
Ethernet Software Features: Management: DHCP Client / IPv4 /SNTP / SMTP /SNMPv1 /DNS /HTTP /ARP /BOOTP /UDP /TCP/IP /Telnet /ICMP
Windows Real COM Drivers :
Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
Windows Embedded CE 6.0 and 5.0, Windows XP Embedded
Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support:
Windows 11
Linux Kernel 6.x, 5.x, and 4.x
macOS 14, 13, 12, and 11
Virtual Machine
VMWare ESXi (Windows 11/10)
VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
Android API: Android 3.1.x and later
MIB: RFC1213, RFC1317
Authentication; Local database (password only)
Connector: Terminal block
No. of Ports: 2
Serial Standards: RS-422 /RS-485
Operation Modes: Disabled /Ethernet Modem /Pair Connection /Real COM /Reverse Telnet /TCP Client /TCP Server /UDP
Baudrate: Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: XON/XOFF
Pull High/Low Resistor for RS-485
1 kilo-ohms (fixed value)
RS-485 Data Direction Control: ADDC (automatic data direction control)
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Input Current :280 mA @ 12 VDC
Input Voltage: 12 to 48 VDC
No. of Power Inputs: 1
Power Connector: 1 removable 3-contact terminal block(s)
Housing: Metal
پارت نامبر:
NPort52321
برند:
MOXA
وضعیت کالا:
استوک
