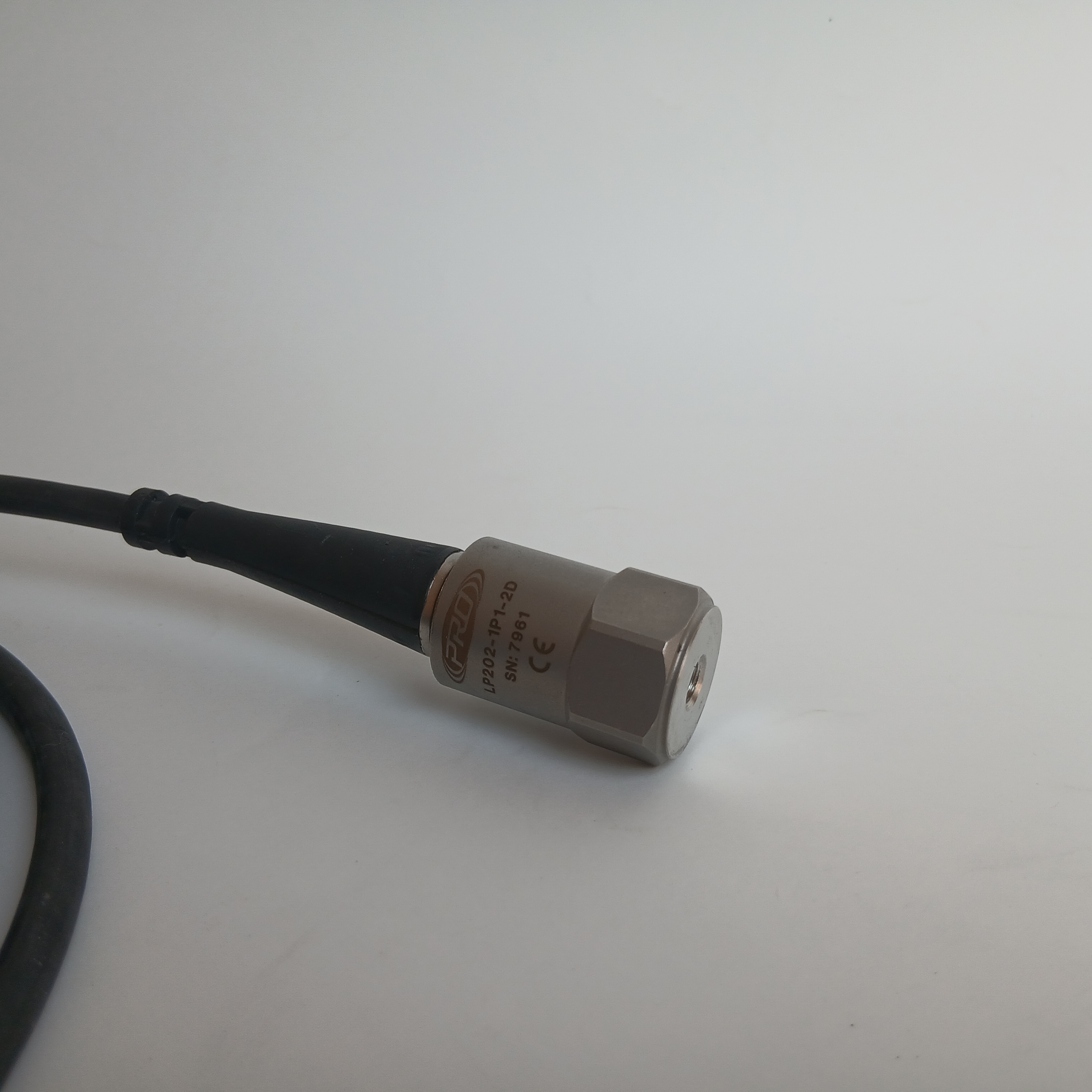

LP202-1P1-2D
ترانسمیتر اندازه گیری سرعت-ارتعاش
LP202
LOOP POWER SENSOR, 4-20 MA OUTPUT PROPORTIONAL TO VIBRATION IN VELOCITY, TOP EXIT 2 PIN CONNECTOR
Power Input: 15-30 Vdc supply voltage required
Band-Pass Filter : The vibration sensor contains a band-pass filter, consisting of a low-pass and a high-pass.
Analog Output : Full-scale output of 4-20 Ma
Operation : Filters the signal, and normalizes the output to the specified full-scale output . Performs a true RMS conversion and transmits this data in a 4-20 mA format (if RMS is chosen).
Temperature Range : -40 °F to 212 °F (-40 °C to 100 °C)
Measurement Range : 0-1 IPS (0-25.4 mm/sec)
Frequency Range ± 3 db : 600-60000 CPM (10-1000Hz)
پارت نامبر:
LP202-1P1-2D
برند:
CTC
وضعیت کالا:
نو و آکبند
