کنترلر PID دما

Allowable ambient temperature: 0 to 50 ℃ / Allowable ambient humidity: 45 to 85 % RH

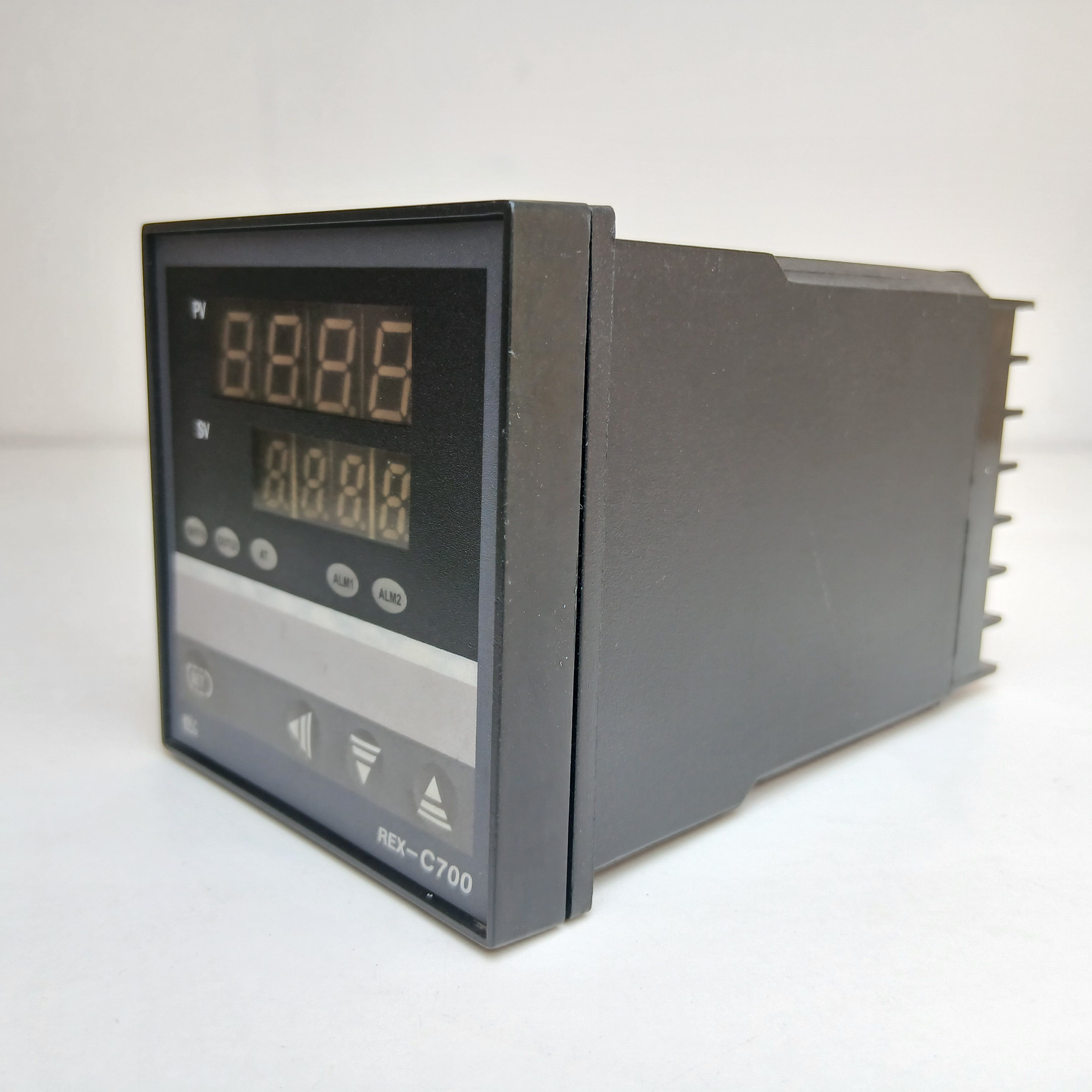

Model number REX-C series
Accuracy ±0.5%F.S±1
Supply voltage 100-240VAC, 50/60 Hz
Input type Thermocouple: K, J, R, S, B, E, N, T
RTD: Pt100, Cu50
Voltage: 0-5V, 1-5V (Need to be customized, default don't have)
Current: 0-20mA, 4-20mA (Need to be customized, default don't have)
REX-C100 has two types: only K input, Thermocouple and RTD input. Others are Thermocouple and RTD input.
If only K input type, the max temperature is 999°C, and don't have self-turning, LCK function
Output type Electromagnetic relay, SSR, current, SCR (not in one product, need to select)
Power consumption Less than 5VA
Control method PID, or ON/OFF
Setting method Touch switch
Indication method8-segment 4-digital display and LED indication
