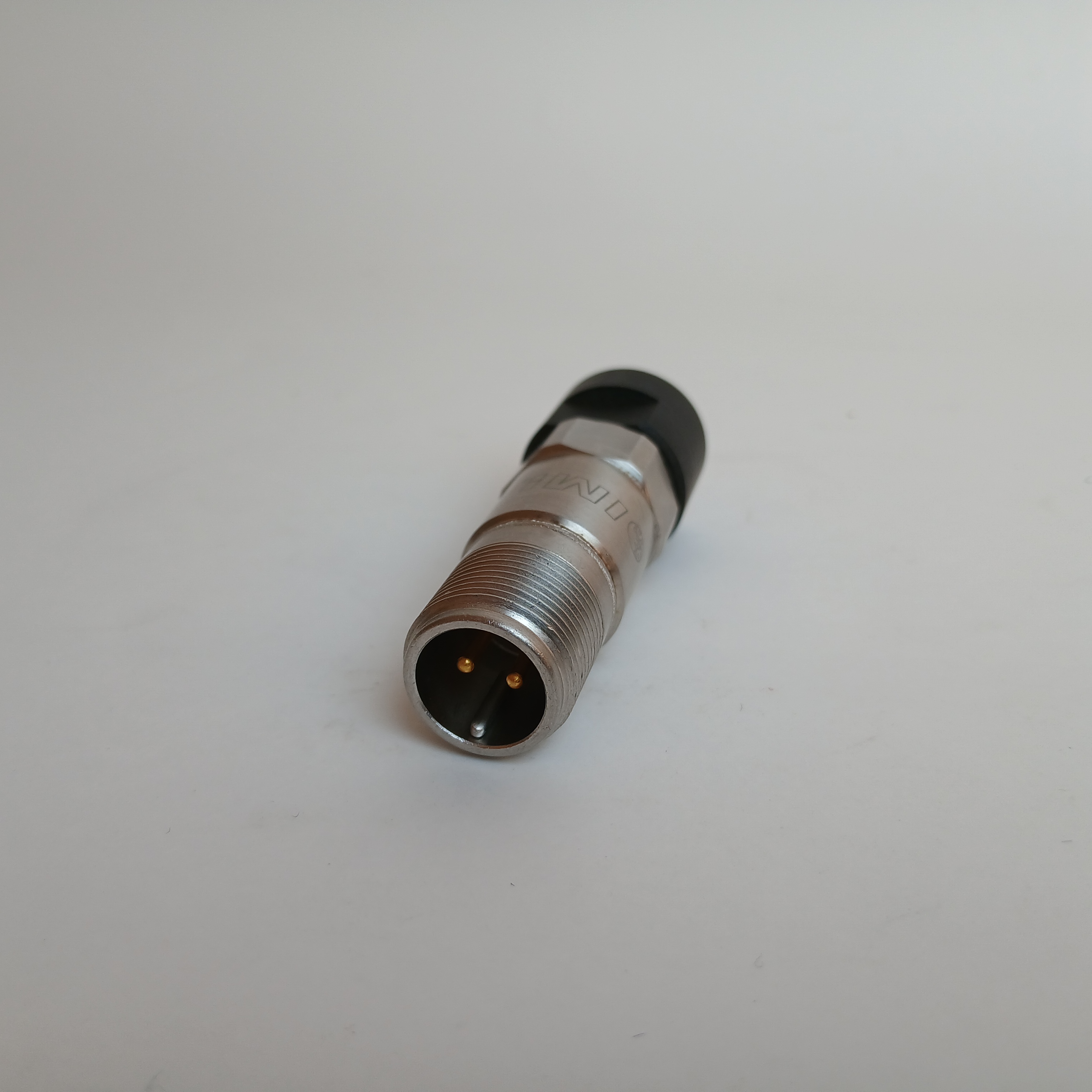

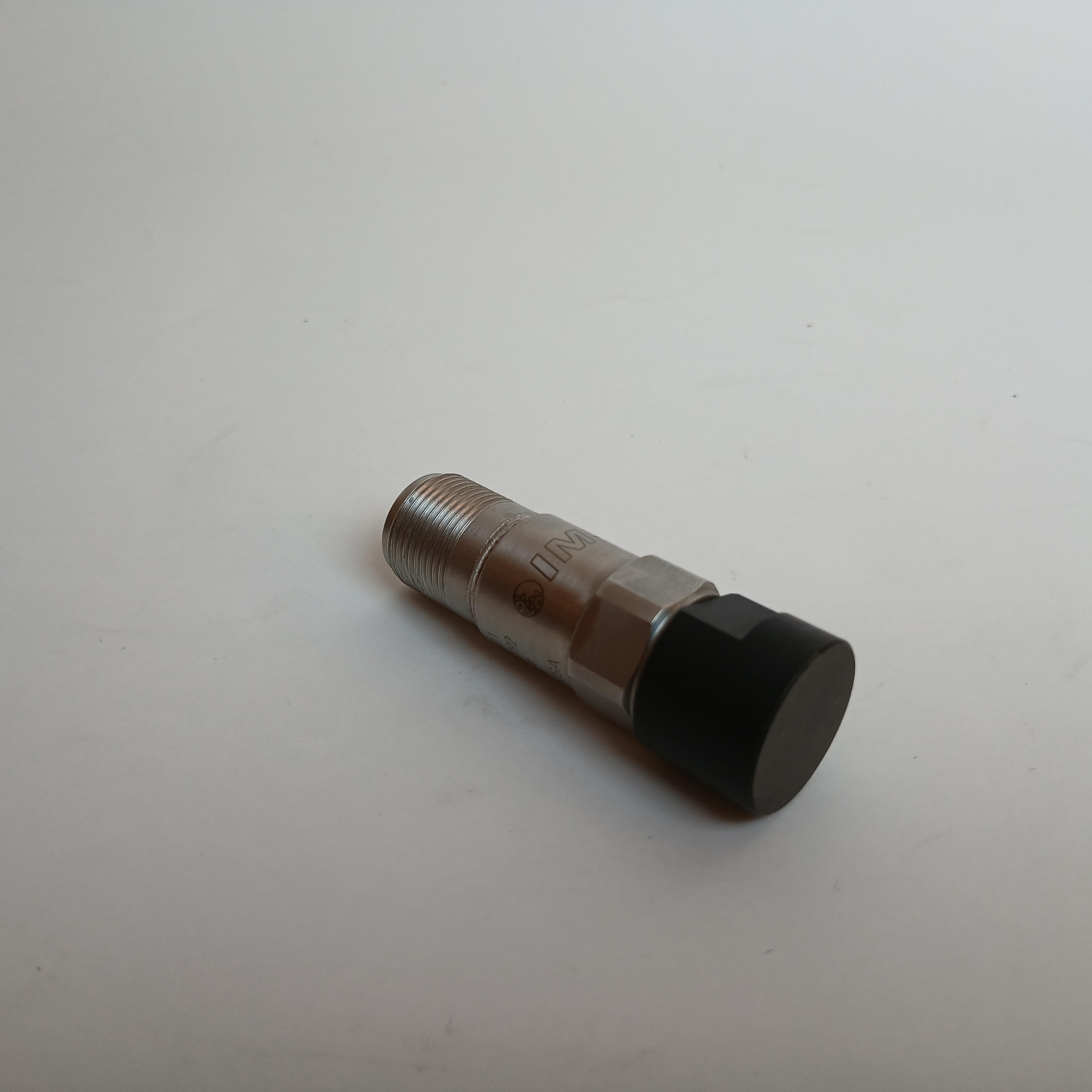

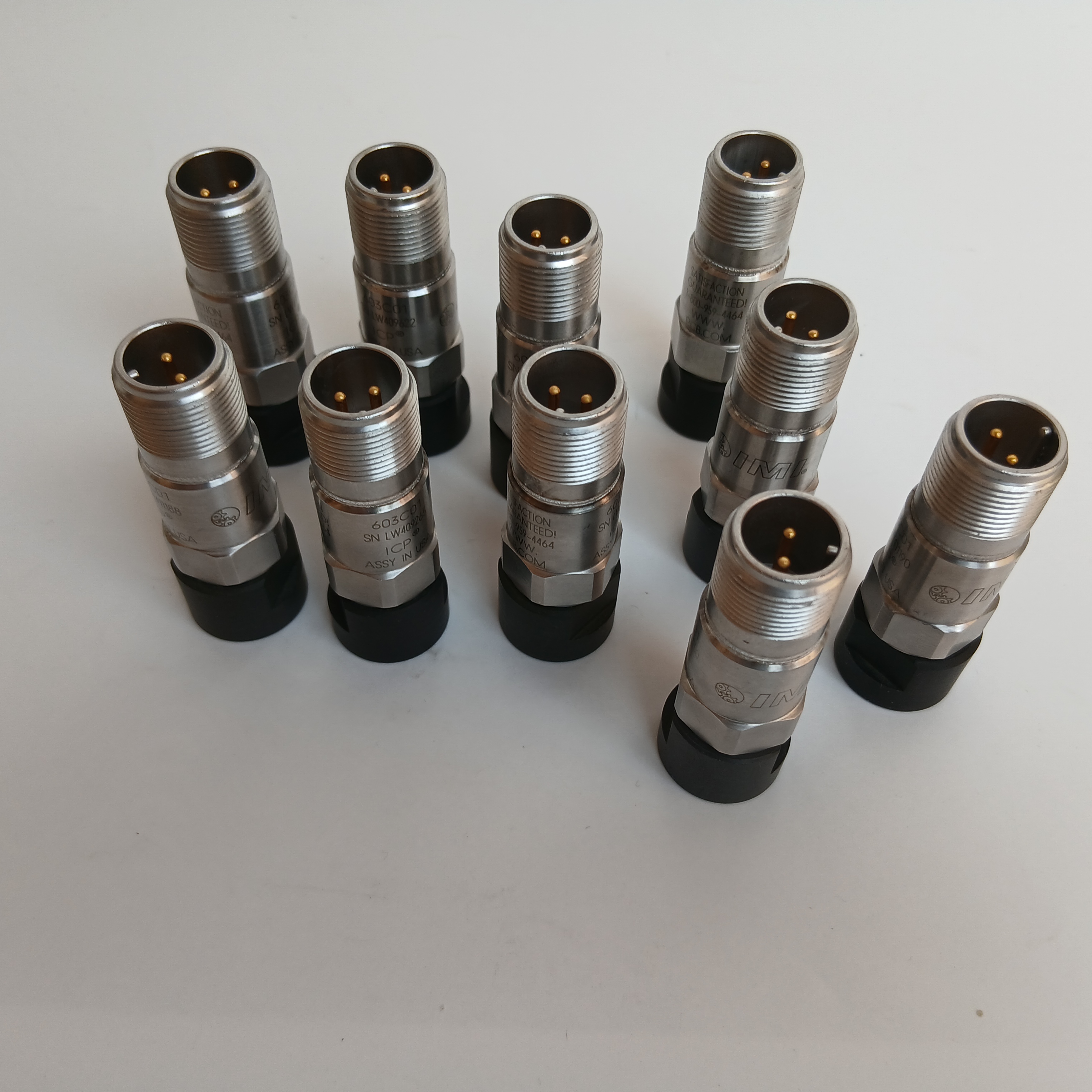

603C01

ACCELEROMETER

Platinum Stock Products; General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 10k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration . The 603-Series includes alternative sensitivity models, hazardous area approved models, dual output models and models with an integral cable.

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))

Frequency Range: (±3dB)30 to 600000 cpm (0.5 to 10000 Hz)

Sensing Element: Ceramic

Measurement Range: ±50 g (±490 m/s²)

Weight: 1.8 oz (51 gm)
