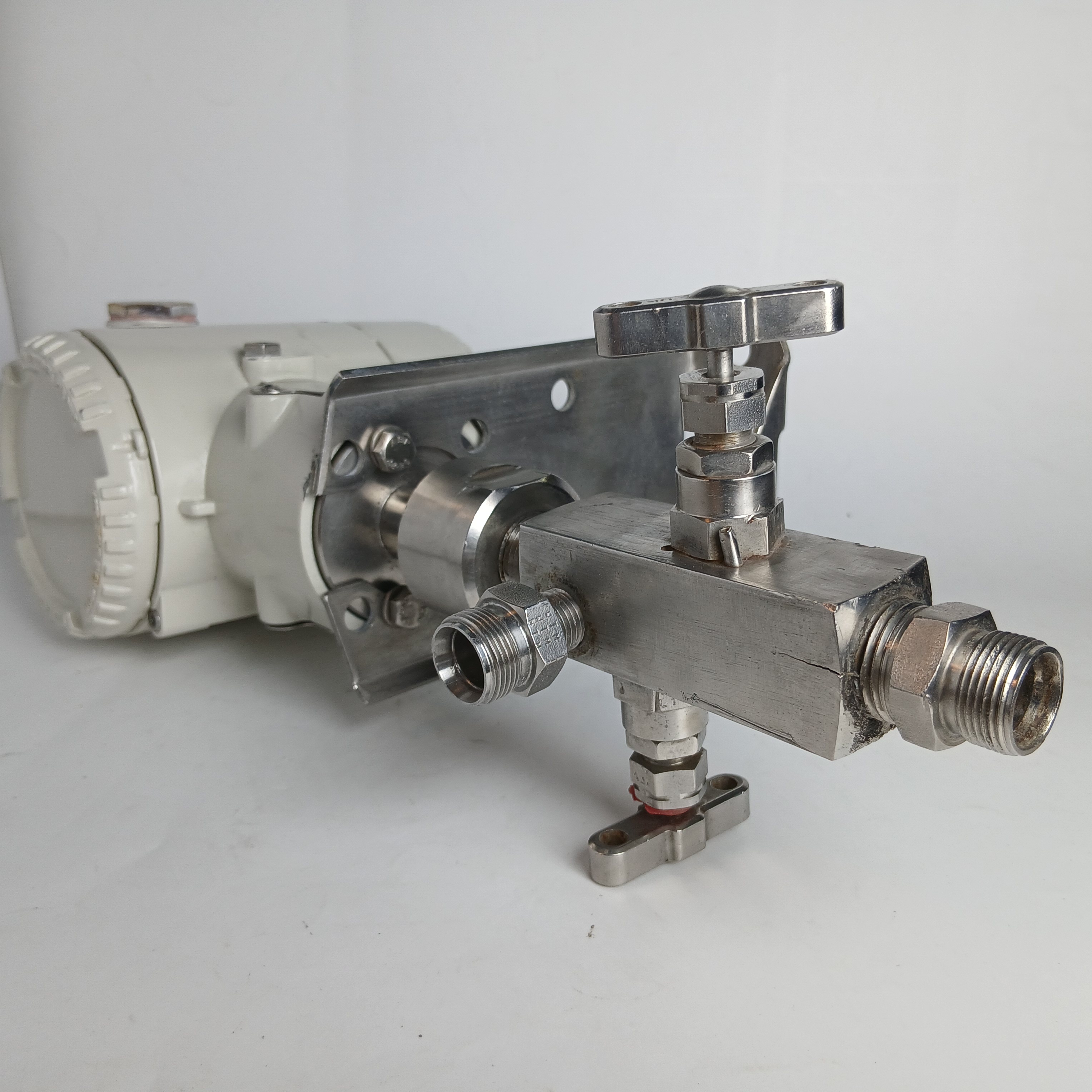

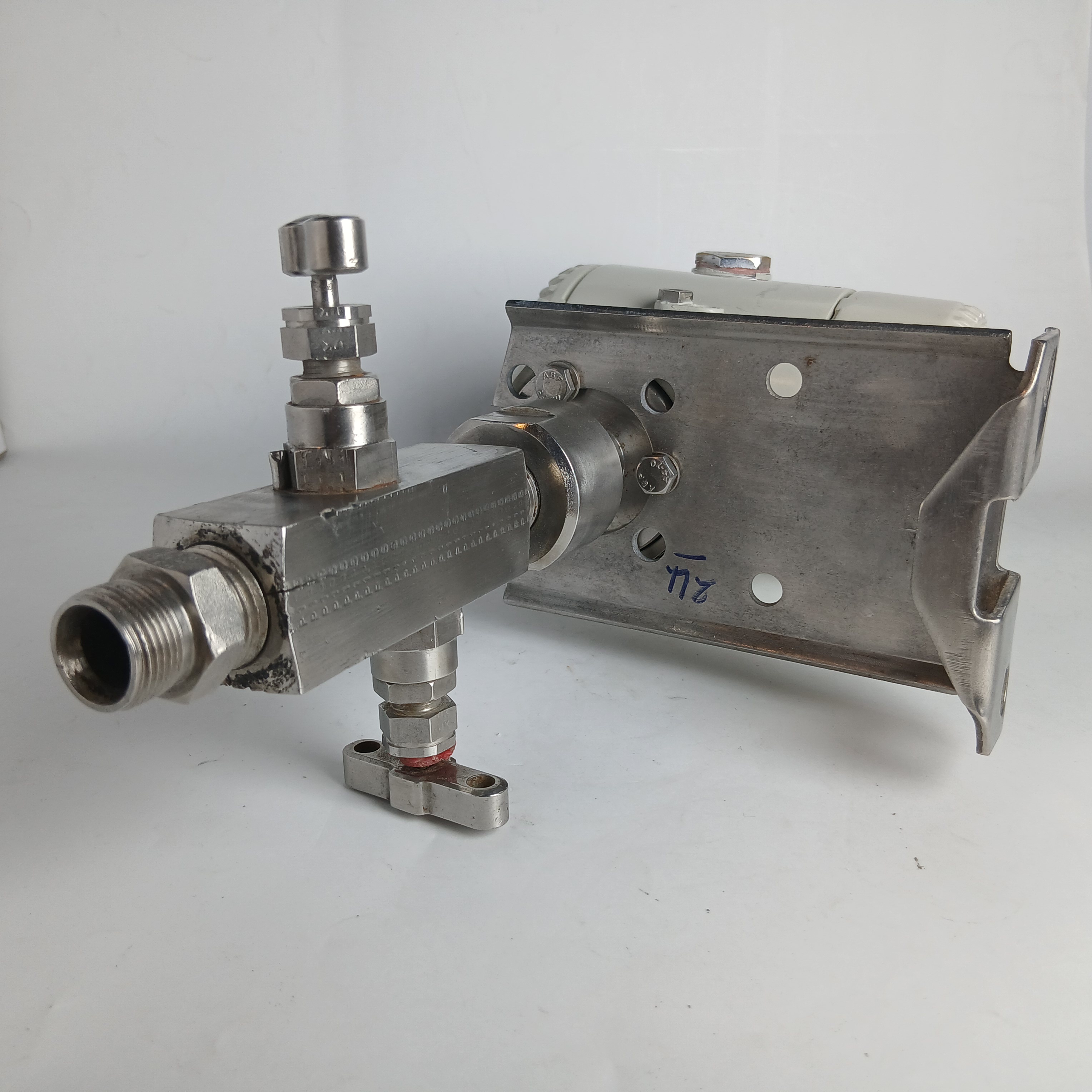

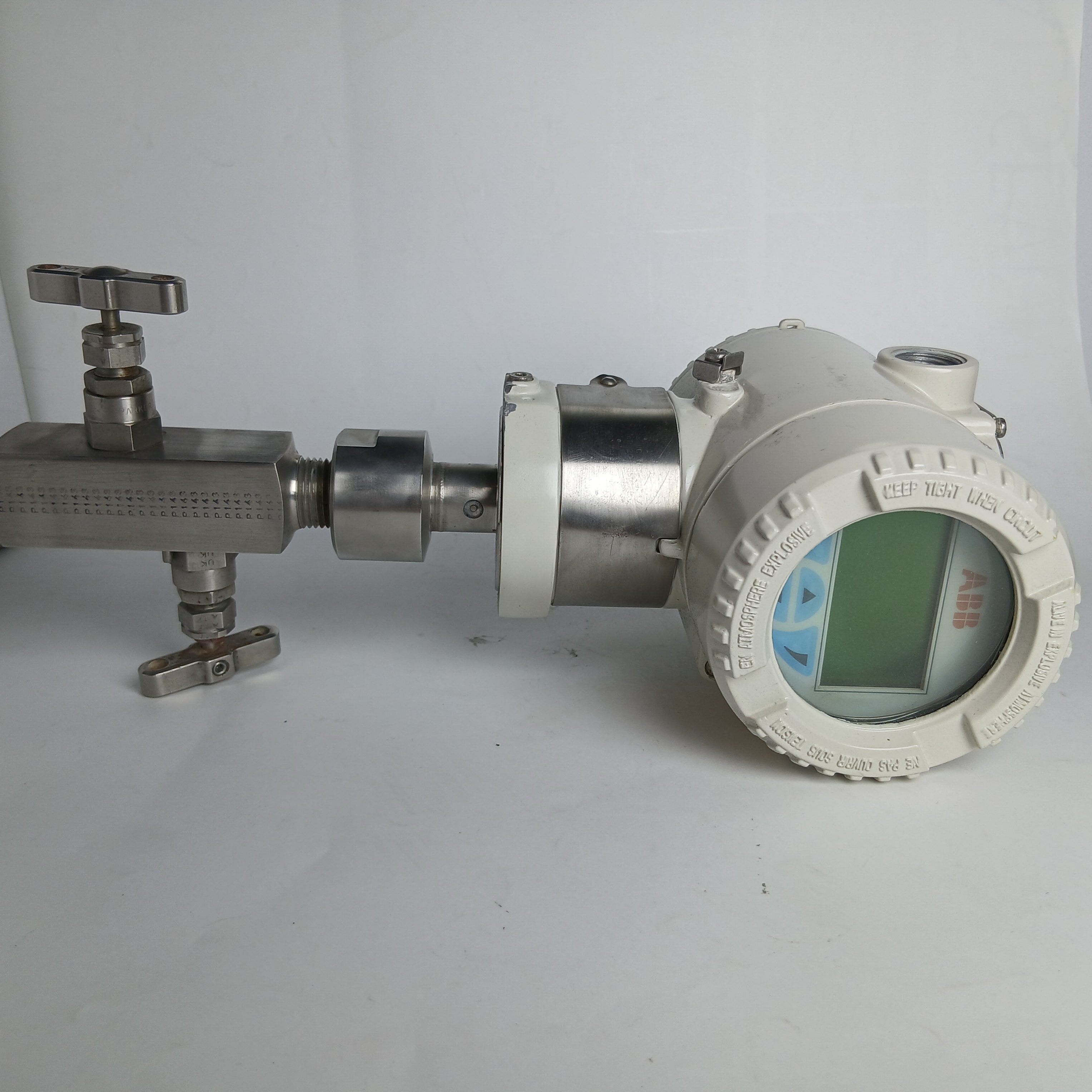

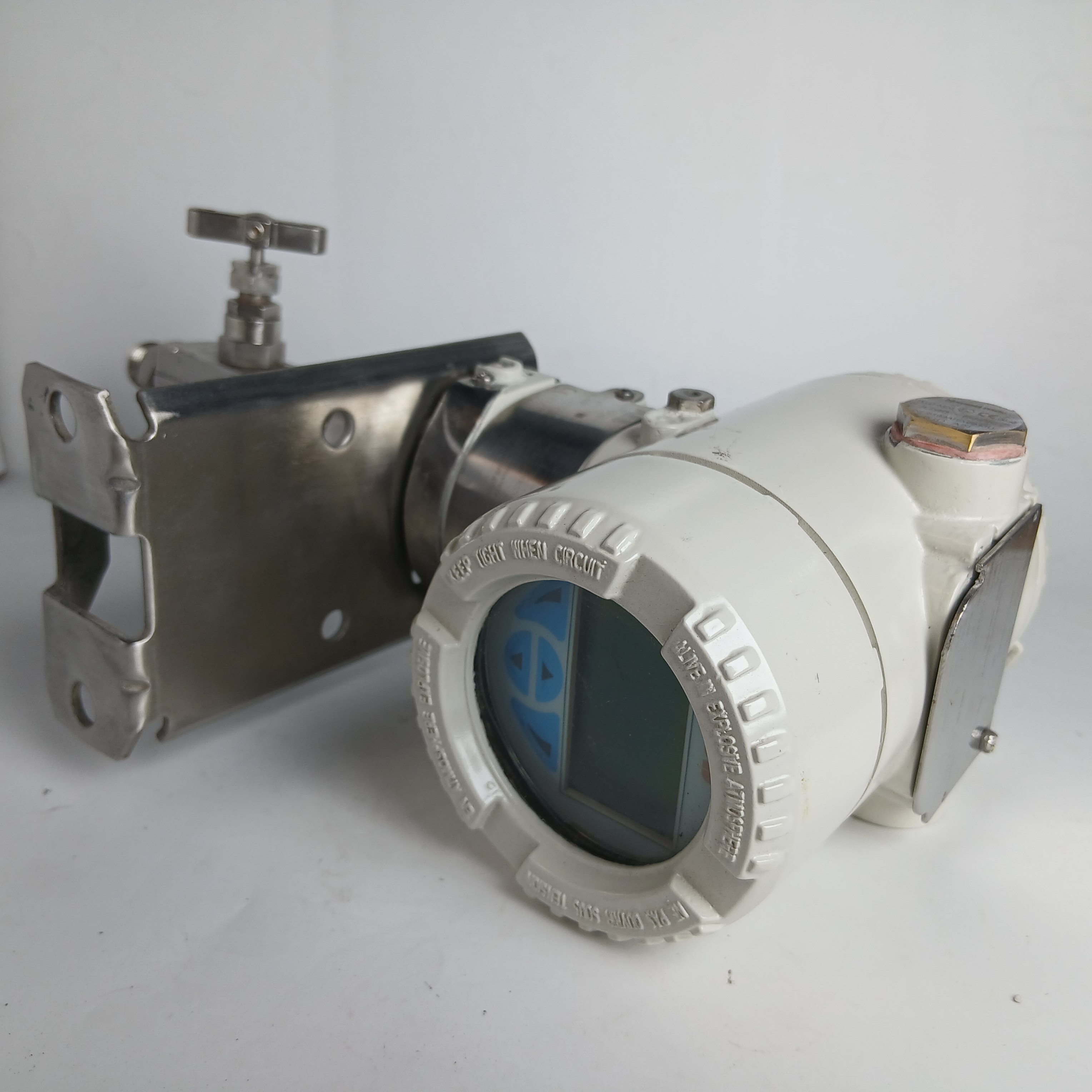

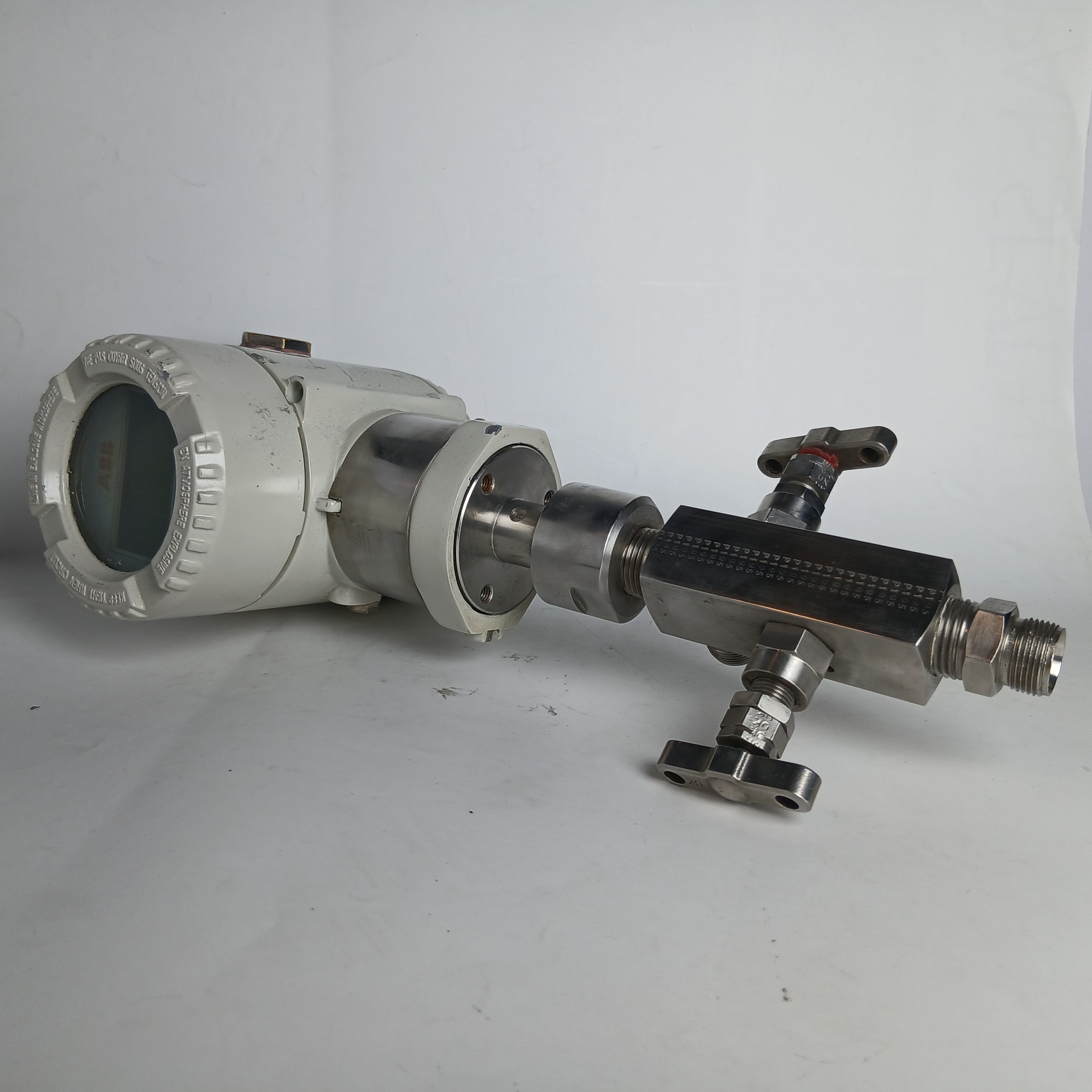

266HSHVKBB1E1L1B2I1C5H3

266HSH: High overload gauge pressure transmitter.

V: Sensor Span Limits (0.5 to 50 MPa / 5 to 500 bar / 72.5 to 7250 psi).

K: Diaphragm Material / Fill Fluid (Monel 400™ / Silicone oil).

B: Process Connection Material/Type (AISI 316L ss / 1/2 in. - 14 NPT female).

B: Housing Material / Electrical Connection (Aluminium alloy / M20 x 1.5).

1: Output (HART digital communication and 4 to 20 mA).

E1: Hazardous Area Certification (ATEX Intrinsic Safety II 1G).

L1: Integral LCD (Digital LCD integral display).

B2: Mounting Bracket (For wall/pipe mounting - AISI 316L ss).

I1: Additional Tag Plate (Supplemental wired-on tag plate).

C5: Calibration Record (Inspection certificate EN 10204).

H3: Material Traceability (Inspection certificate EN 10204 - 3.1).

Sensor Diaph. Fill: Hastelloy C276 / Silicon Oil

Supply: 24 VDC

Output: 4-20mA
