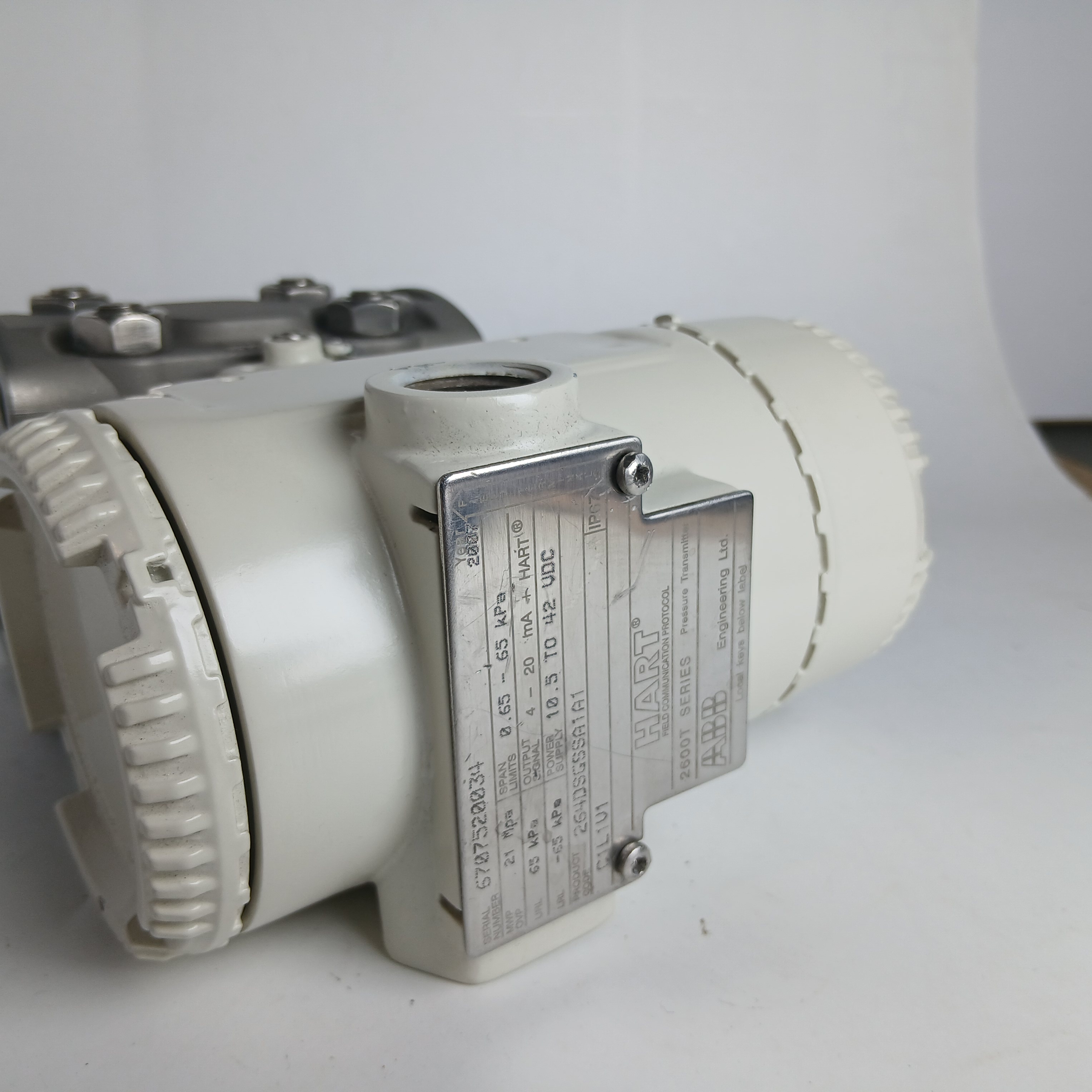

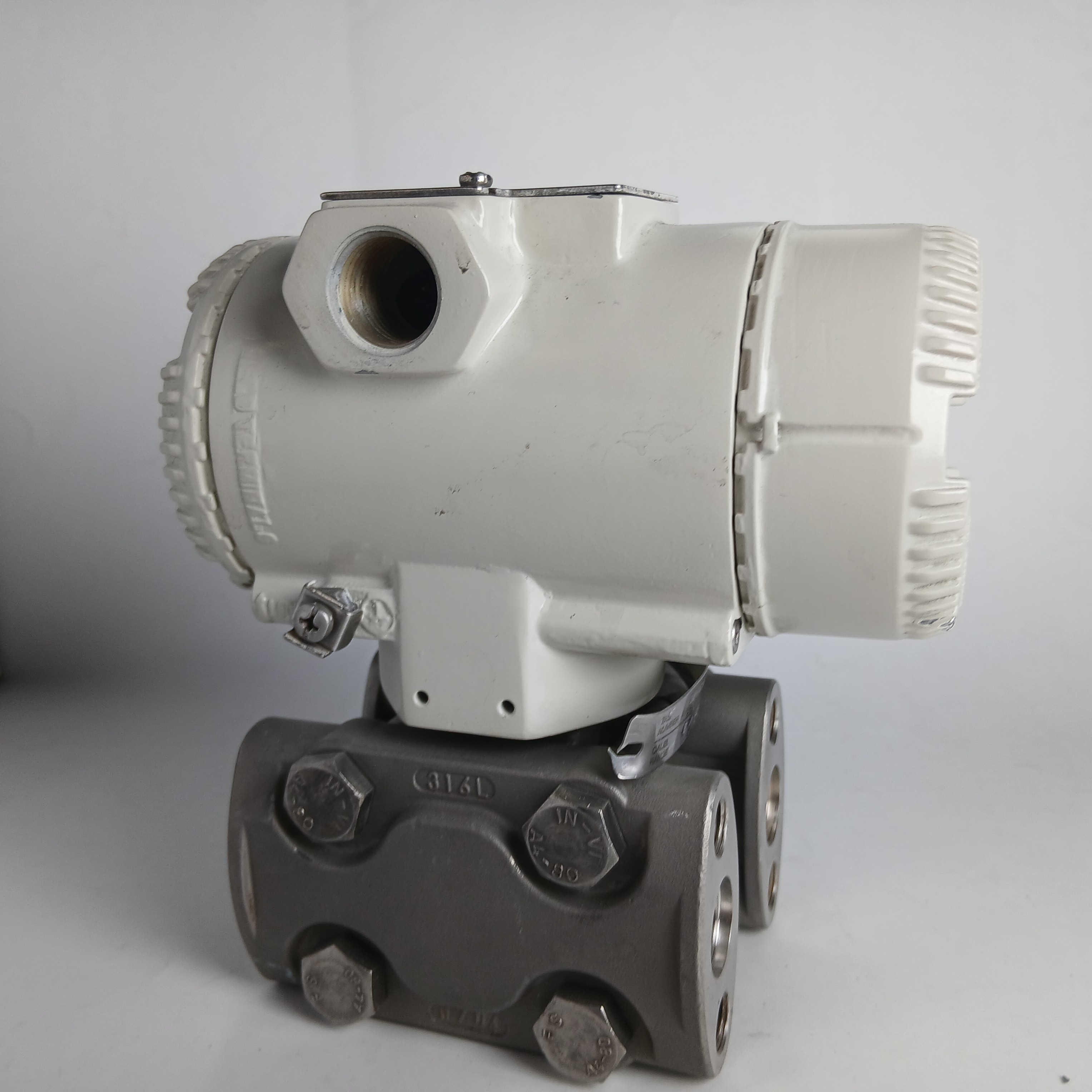

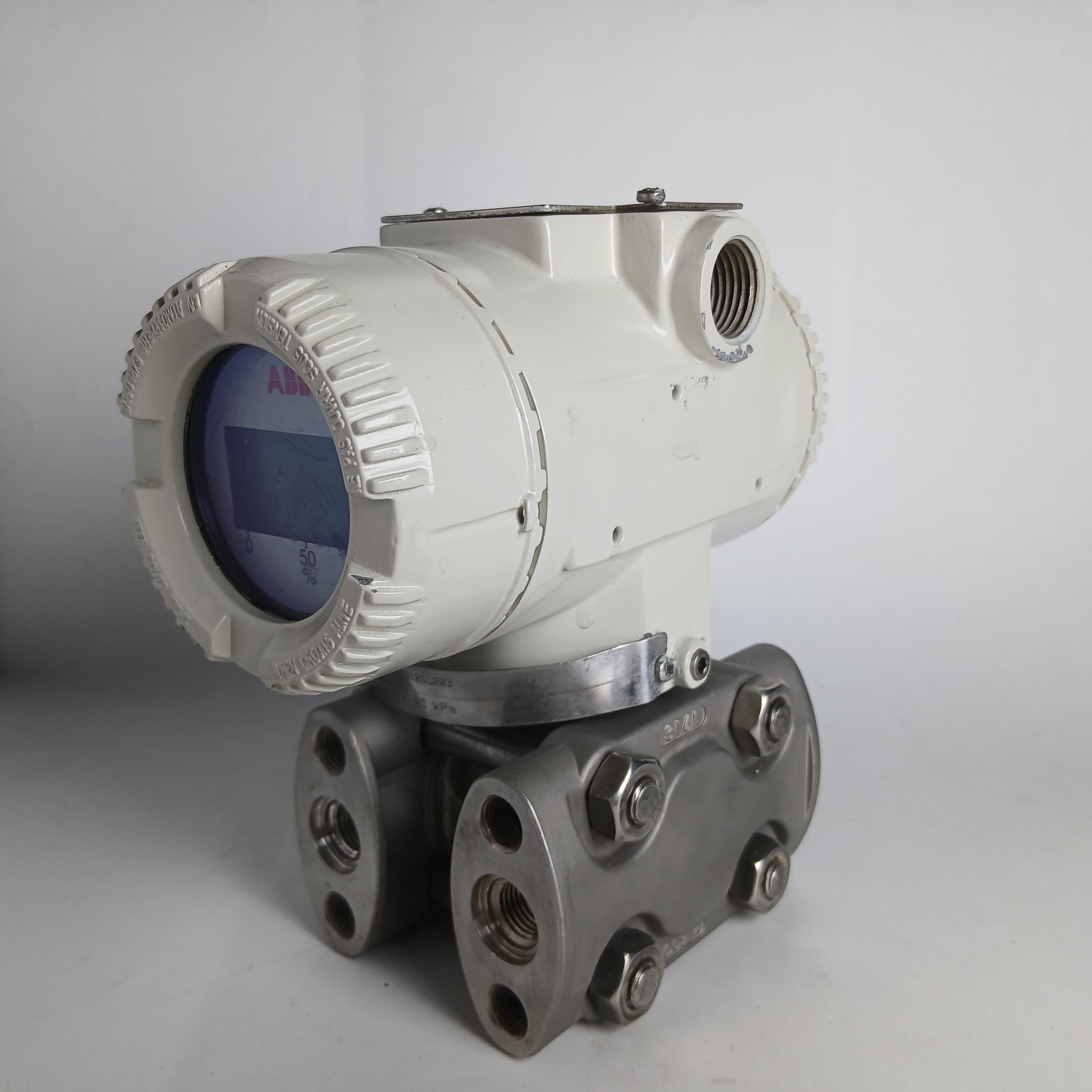

264DSGSSA1A1

264DS (Differential Pressure Transmitter)

G= Sensor/ Span Limits :0.65-65 KPa

S=Fixed

S=Diaphragm Material: AISI 316 L ss / Fill Fluid: Silicon Oil

A=Process Connection: AISI 316 L ss  1/4inch NPT-F

1=Bolts: AISI 316 L ss  /Gasket: Viton

A=Housing Material and electrical Connection: Aluminium Alloy / 1/2inch NPT

1=Output: Hart and 4-20mA

Supply: 10.5- 42 VDC(24 VDC)

Output: 4-20mA

Base accuracy : ±0.075%
