8309

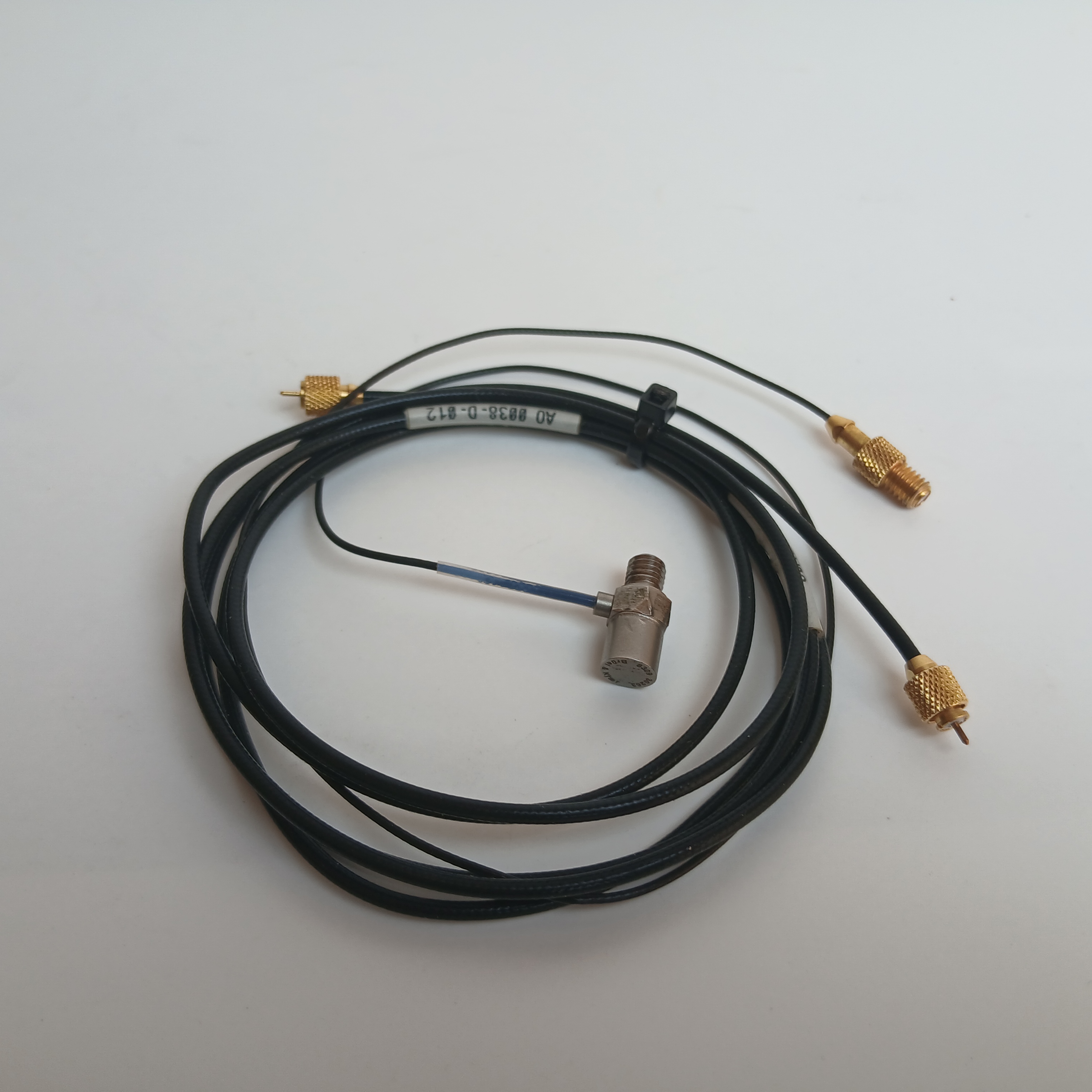

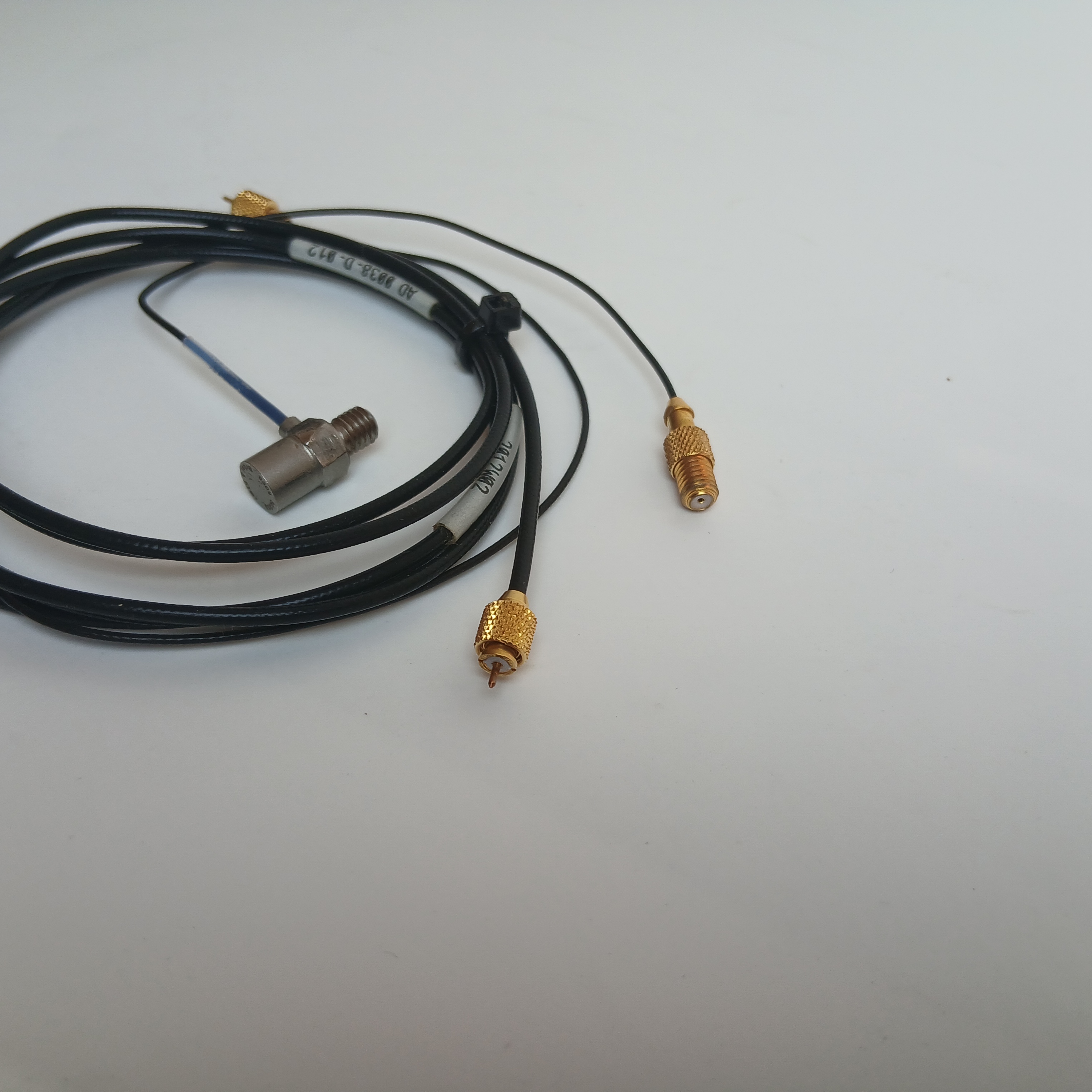

Piezoelectric Charge Accelerometer Type 8309

Frequency range: 1 – 54000 Hz
Temperature: -74 – 180 C
Sensitivity: 0.004 pC/ms^-2
Residual Noise Level in Spec Freq Range (rms):  ±23 mg
Maximum Operational Level (peak): 15000 g
Electrical connector: 10-32 UNF
Mounting: Stud
Accessory Included: Integral AO 0038
Clip/Stud/Screw included: None
Output: Charge-PE
Unigain: No
Triaxial: No
TEDS: No
Applications: Shock
Resonance frequency: 180 kHz
Maximum Shock Level (± peak): 100000 g
